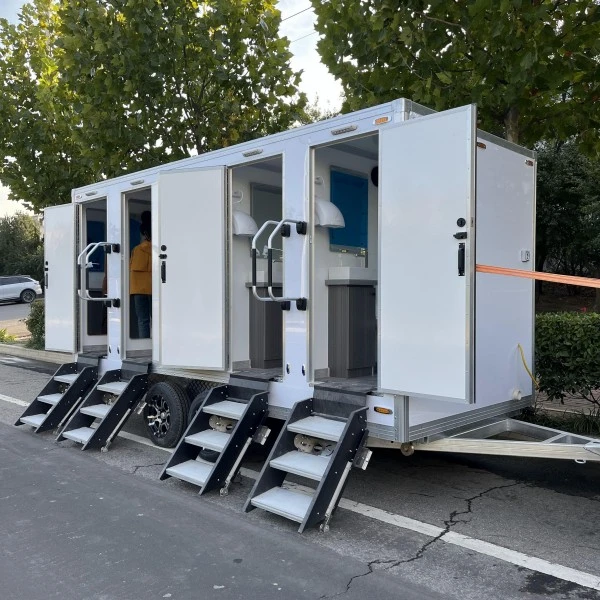

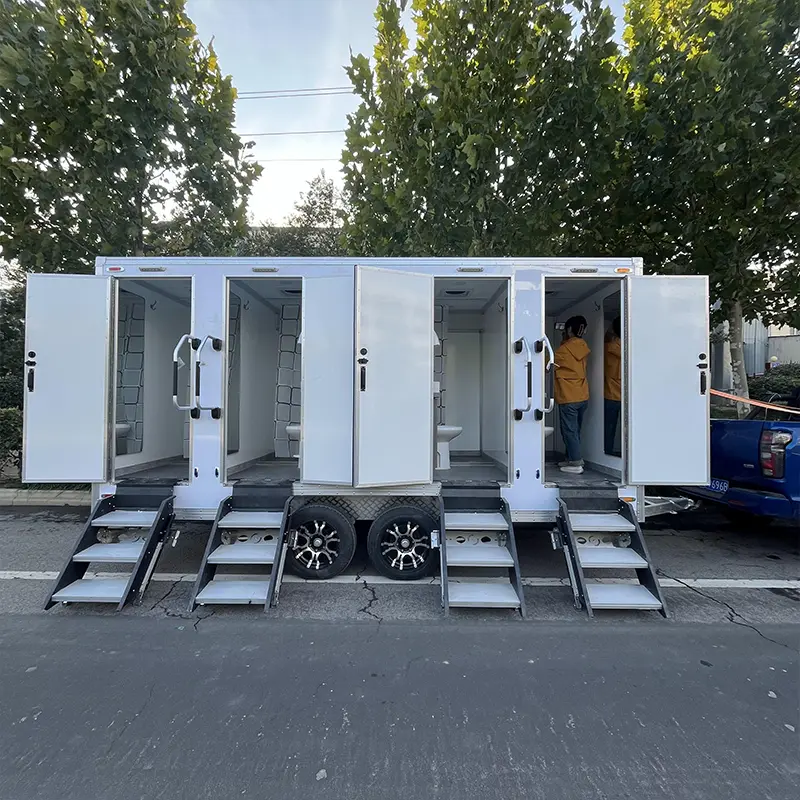

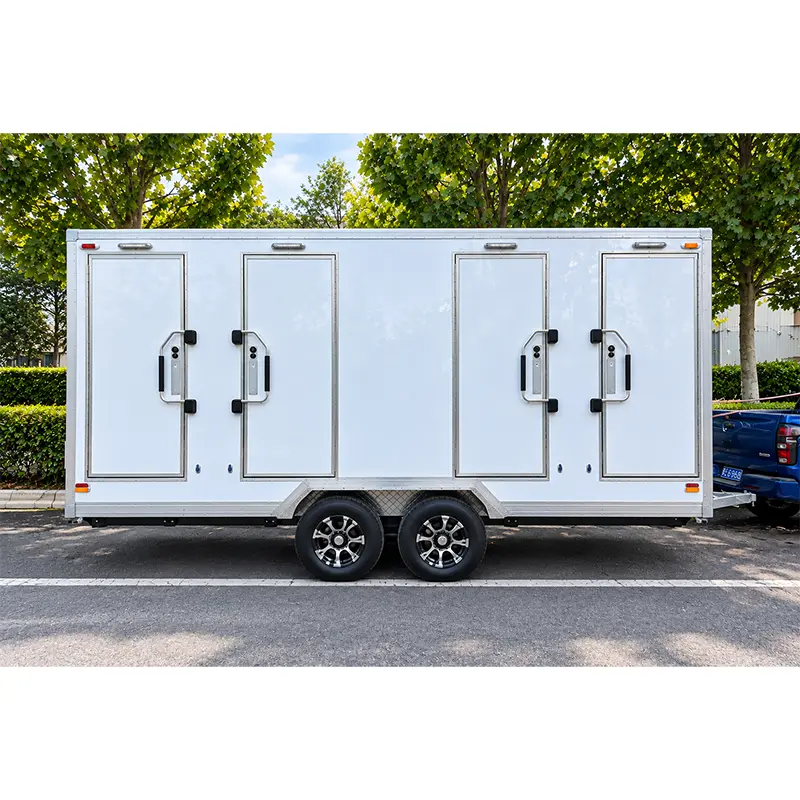

Multi-Cubicle Mobile Shower Trailer

TUNE manufactures the Multi-Cubicle Mobile Shower Trailer, model TN-S48, as a towable sanitation unit with four shower stalls and four toilet compartments. It is supplied to outdoor events, temporary camps, sports venues, seasonal worker facilities, construction projects and accommodation sites. Rental companies and mobile sanitation service providers also purchase it as a 4 stall shower trailer. TUNE has produced mobile sanitation trailers and food-service trailers since 2015 at its factory in Shandong, China, and exports to customers in North America, Europe, Australia and other markets.

A luxury shower trailer is planned around peak usage rather than average daily attendance. Important factors include shower duration, user turnover, hot-water recovery time, tank capacity, cleaning intervals and the ability to refill fresh water or remove wastewater.

For an event, the unit is positioned close enough for convenient access while leaving space for queues and service vehicles. For a camp or worksite, the operator considers morning and evening usage peaks, lighting around the entrance and the distance from accommodation areas.

Main Technical Data

The specification table provides reference values for planning. The final configuration may affect weight, power demand, internal space and installation requirements.

Key Construction Details

Body and Wall Structure

The body uses a fiberglass outer shell with a thermal insulation layer and interior lining. The 40 mm fiberglass sandwich panel is intended for an enclosed mobile sanitation environment. Actual thermal performance depends on panel construction, outside temperature, ventilation, door opening frequency and climate equipment.

The underbody uses an embossed plate with anti-rust paint treatment. Trailers operating near coastal areas, wet ground or industrial dust require regular cleaning and corrosion checks in the maintenance plan.

Lighting and External Visibility

The lighting arrangement may include high-level lights, low-level footlights and outline marker lights. These features improve visibility around the trailer during evening operation and help users identify steps, entrances and external edges.

Lighting is tested before each operating period. Damaged covers, loose wiring or water ingress are handled by a qualified technician.

Retractable Pedal

The telescopic pedal uses a retractable design to reduce the external footprint during transport. Before opening the trailer, the operator fully extends and secures the pedal. After use, it is cleaned, checked for damage and retracted before relocation.

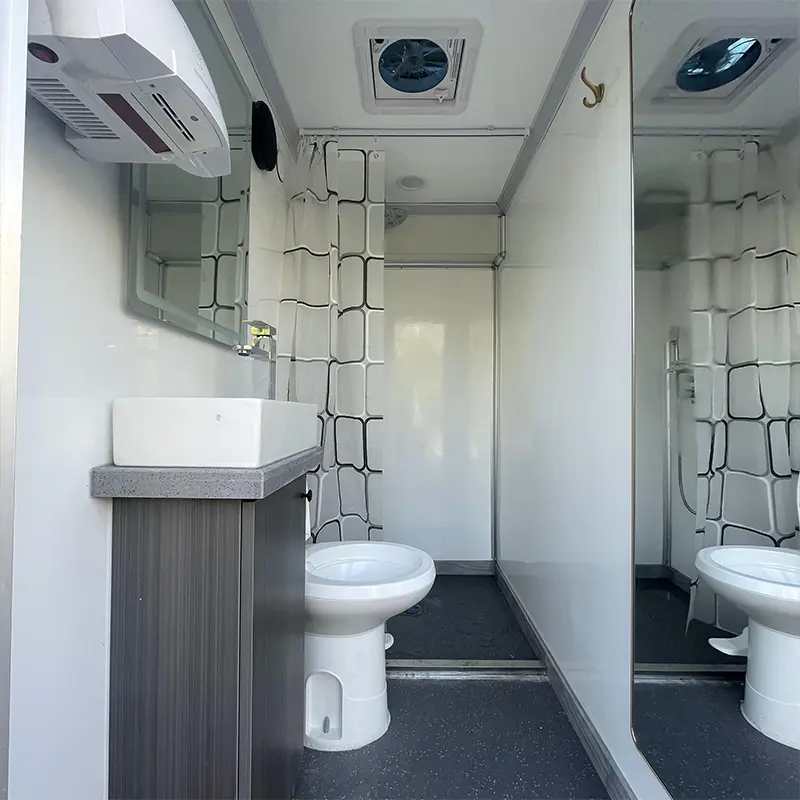

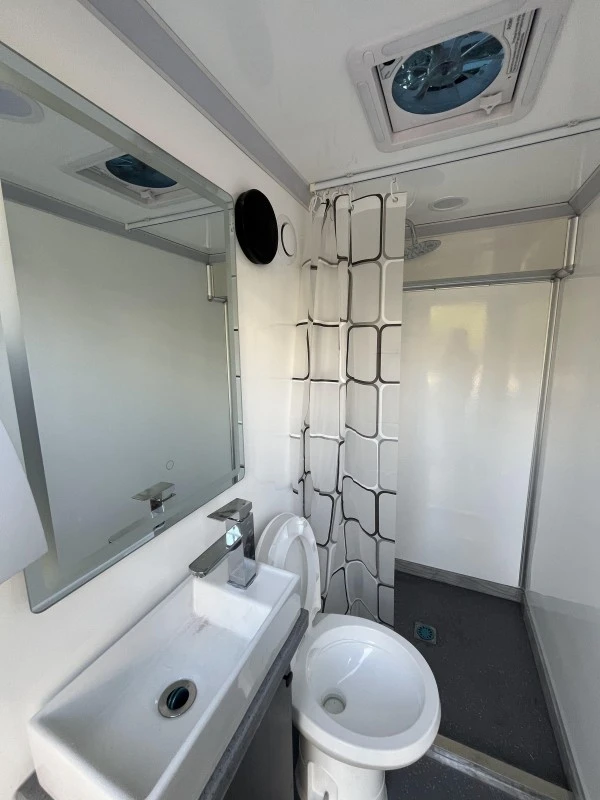

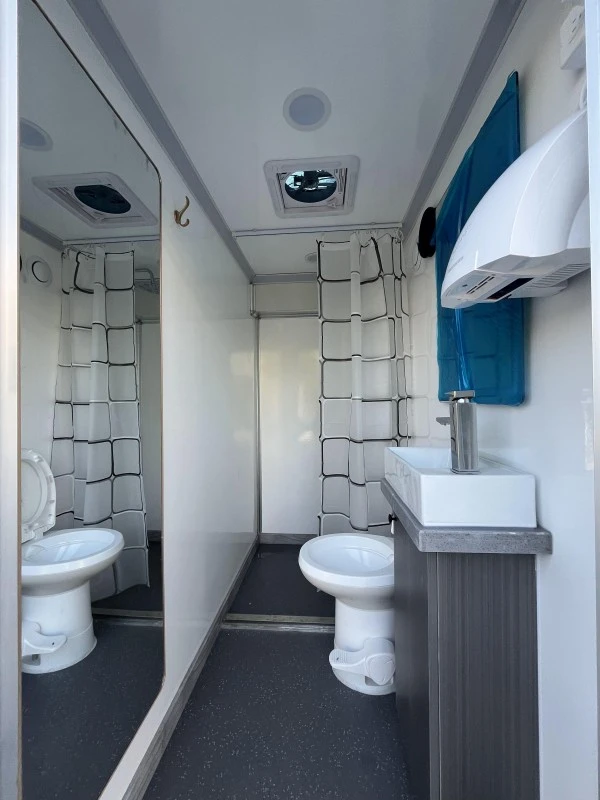

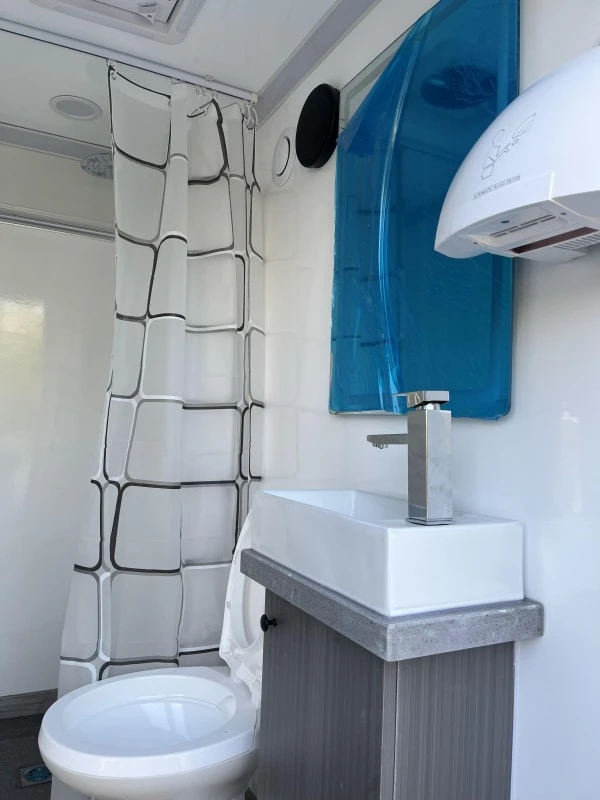

Shower and Drainage Area

Each shower area includes an overhead shower head, handheld shower head and adjustable shower rod. The shower fittings are checked for water flow, leakage and secure attachment.

The anti-slip aluminum flooring improves traction in a wet environment. It does not eliminate all slipping risks, so the operator keeps the floor clean, removes excess water and places the trailer on suitable ground with a workable drainage arrangement.

Daily Use Instructions

Opening Checklist

● Confirm stable parking and support-leg deployment.

● Check the entry pedal and doors.

● Fill the fresh-water tank as required.

● Inspect water hoses, valves and pump connections.

● Test one shower and one toilet from each service zone.

● Check wastewater level and outlet condition.

● Turn on lighting and ventilation.

● Confirm hot-water equipment is operating within its rated conditions.

Project Workflow

Demand estimate → Site access review → Water and wastewater plan → Power assessment → Layout approval → Manufacturing → System testing → Shipment → Installation → Routine servicing

This workflow helps buyers identify practical issues before production. Delivery access, turning radius, towing capacity and wastewater removal are confirmed in advance.

Questions Buyers Commonly Ask

Is the trailer suitable for temporary accommodation?

Yes. It supports temporary accommodation areas, camps and seasonal work facilities when water, wastewater, power and cleaning services are arranged.

Can the exterior color be changed?

The exterior color is customized according to an approved color card. Logo placement and other visual details are confirmed before production.

Can hot water be included?

Hot-water equipment is discussed according to the intended use, local energy conditions and available electrical or fuel supply. The quotation lists the water-heating capacity and power requirements.

How is the trailer maintained in winter?

The operator drains exposed pipes, protects water tanks and uses suitable heating or insulation measures. The method depends on the lowest local temperature and whether the trailer remains in service.

Verification and Delivery

TUNE organizes pre-shipment checks for the chassis, axles, tires, brakes, body panels, shower fittings, drainage, water tanks, lighting, ventilation and selected electrical equipment.

Before shipment, buyers request the confirmed technical specification, equipment list, loading dimensions, reference weight and commissioning instructions. After delivery, the operator inspects the body, fittings and pipe connections before introducing water or power.

The mobile shower trailer is purchased as a project system rather than as a standalone box. Its performance in daily operation depends on the selected equipment, site preparation and maintenance discipline.

Certifications

TUNE manufactures this shower and toilet trailer under an ISO 9001 quality management system. CE marking and DOT certification documents are supplied for export orders where applicable. The factory also undergoes regular third-party inspections by SGS and Intertek. TUNE has been a verified Gold Supplier on Alibaba International for more than eight years.

CE marking: EU safety, health and environmental protection standards.

ISO 9001: international quality management system standard.

DOT certification: U.S. Department of Transportation safety standards.

TUNE Factory Inspection and Delivery

TUNE factory organizes inspection of the chassis, axle and brake systems, tires, body panels, water tanks, shower fittings, sinks, lighting, mirrors, ventilation and selected electrical equipment.

The delivery package includes:

● Approved technical drawing

● Equipment list

● Plumbing information

● Electrical requirements

● Operation and maintenance instructions

● Loading and packing details

● Inspection records

● Spare-parts recommendations

The 4 stall shower trailer is evaluated as part of the complete sanitation plan. Reliable daily use depends on correct site selection, adequate water and power, controlled wastewater disposal, trained operators and a documented maintenance routine.
