Qingdao Tune Technology Co., Ltd. produces Square Food Kiosks at its 4,500-square-meter production site in Shandong, China. A Square Food Kiosk is a fixed or semi-fixed vending structure with a rectangular footprint, used in shopping mall courtyards, municipal parks, transit terminals, theme parks, and university campuses. The straight walls and square corners make the interior easier to lay out than a round kiosk, and give more usable wall space than a towable Food Trailer of similar length. Where a curved serving front works better for the site, the round version is listed under Food Kiosk.
The perimeter frame uses 100 x 100 mm structural steel tubing with a 3.0 mm wall thickness. Vertical corner columns are welded to a subfloor grid, which distributes weight across the base rather than concentrating it at a few points. The structure is rated for seismic level 8.0 and can withstand wind gusts up to 110 km/h. Roof drainage channels with concealed downspouts direct rainwater away from the service windows, which keeps the cooking area dry during heavy rain.
For street food and high-volume cooking, the Heavy-Duty Steel Outdoor Street Food Kiosk measures 3,000 mm by 2,200 mm by 2,500 mm, giving about 6.6 m² of floor area. That is enough for up to three line cooks to work at the same time. Motorized steel roller shutters cover the main concession windows, which protects the appliances from theft and vandalism when the kiosk is closed. This configuration is common on city sidewalks, night markets, and public transit terminals.
The outer skin and floor assembly go through full electrophoretic immersion priming, followed by a baked fluorocarbon powder coat. This protects the frame against rust and chemical degradation. Wall panels use a 50 mm high-density polyurethane core at 42 kg/m³ between 0.8 mm galvanized steel sheets. The thermal rating is around R-16. The kiosk can hold comfortable interior conditions in exterior temperatures from -20°C to +45°C, which suits both hot and cold markets.

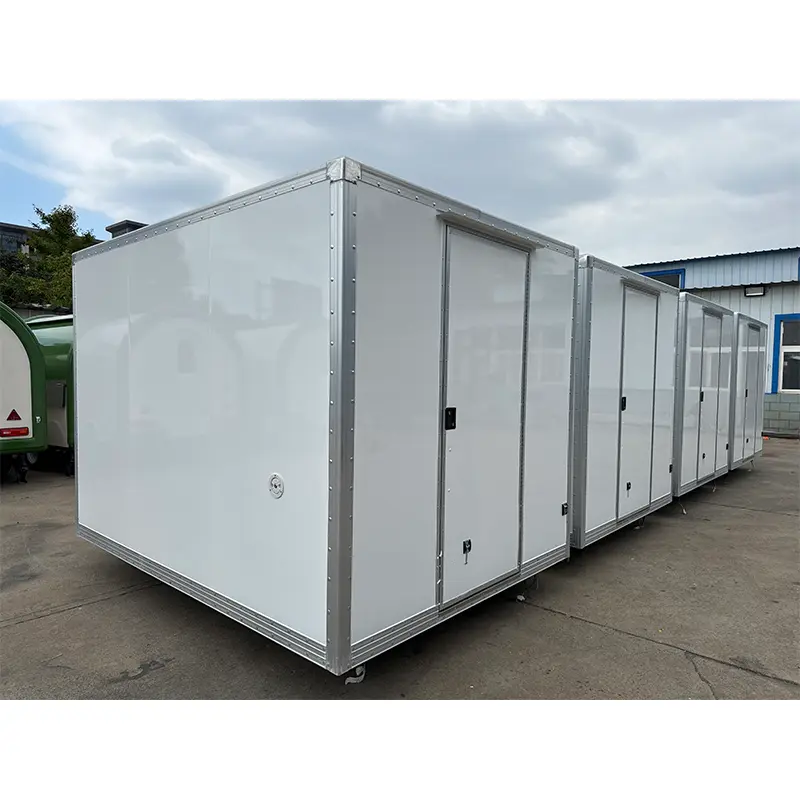

The Prefab Modular Outdoor Beverage Kiosk measures 2,400 mm by 2,000 mm on a compact square footprint. It is set up for drink service rather than cooking. The interior includes continuous 304 stainless steel counters, under-counter space for dual ice makers and milk refrigerators, a conduit for a 4-tap draft beer line, and overhead LED menu board mountings. This layout is used by coffee shops, juice bars, boba tea franchises, and craft beer vendors that need a working station without masonry construction.
Each kiosk has an industrial-grade sub-panel supporting 110V or 220V dual-voltage input with a 32A to 63A main breaker and RCD ground fault protection. Internal wiring runs through flame-retardant PVC conduits to double-gang waterproof sockets, LED ceiling panels, and exhaust hoods. The panel is sized so that cooking appliances, refrigeration, and lighting can run at the same time without tripping. For sites without a permanent supply, generator and solar preparation are available.
The plumbing setup includes a 304 stainless steel double-basin sink, a 12V automatic water pump, a 10L electric hot water heater, and dual 30L fresh and greywater tanks. The tanks are removable for refilling and cleaning, which is useful at venues without a fixed water point. Where a municipal supply and drain are available, the kiosk can be plumbed directly instead of using the onboard tanks.
Square kiosks are usually craneable. Lifting points on the frame are load-tested before shipment, so the unit can be positioned on a prepared pad, deck, or plaza surface. Once in place, the kiosk connects to power and water, and the roller shutters or service windows are commissioned. Because the footprint is square, the kiosk can be placed at the corner of a walkway, in a parking lot, or along a courtyard edge without leaving awkward gaps.
Mall developers place them in outdoor courtyards and parking areas to activate unused space. Park and zoo operators place them along pedestrian routes for snacks, ice cream, and drinks. Stadiums, campuses, and amusement parks use the craneable chassis to relocate concessions as foot traffic shifts between seasons. Where the site also needs public facilities, a Toilet Trailer can sit on the same pad without extra foundation work.
Before shipment, each kiosk goes through a 24-hour high-pressure rain chamber test at 50 PSI. Wall seams, roof hatches, concession windows, and access doors are checked for leaks. Internal power circuits undergo high-potential dielectric insulation testing, and structural hoist points are load-tested. After approval, the kiosk is wrapped in heavy-duty shrink film, mounted on reinforced steel skids, and loaded into containers. TUNE provides a 12-month structural factory warranty and technical floor plans.
Square Food Kiosks can be supplied with CE, ISO 9001, DOT, EPR, COC, and NSF-aligned documents where required. TUNE holds Alibaba Gold Supplier status and has completed regular third-party inspections by SGS and Intertek. Certificate numbers, scope, and validity can be provided before ordering.
Q: Is a Square Food Kiosk permanent or movable?
A: It is fixed or semi-fixed. The frame is craneable, so the unit can be relocated if needed. For permanent installation, the base is anchored to a concrete pad or deck.
Q: Can it be used indoors?
A: Yes. Square kiosks are used in mall corridors and covered event halls. Indoor installations need to meet local fire and ventilation rules, so the exhaust and electrical layout is planned accordingly.
Q: What is the difference between the standard and heavy-duty versions?
A: The heavy-duty version uses a larger footprint (3,000 x 2,200 mm), a reinforced frame, and motorized steel roller shutters. It is intended for street food and high-volume cooking. The standard version suits lighter menus and beverage service.
Q: How long does production take?
A: Timelines depend on size, equipment, and finish. Once drawings are approved and the deposit is received, most kiosk orders ship within several weeks to a few months. The confirmed date is written into the order.
Q: What after-sales support is included?
A: TUNE offers a 12-month structural warranty, remote technical support, and shipment of common spare parts such as water pumps, faucets, breakers, and shutter components. Specific terms are stated in the contract.
