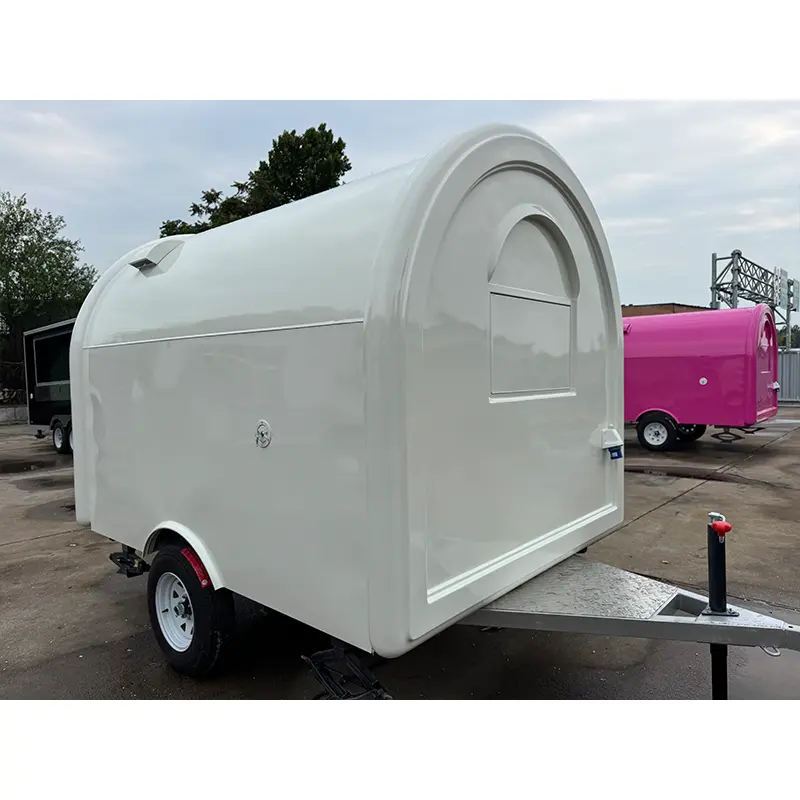

Qingdao Tune Technology Co., Ltd. builds Round Food Trailers at its 4,500-square-meter production facility in Shandong, China. The round body uses a continuous curved shell instead of flat panels. This shape reduces wind resistance during towing and gives the trailer a distinctive look for coffee, gelato, and dessert vendors. Units are available in compact sizes starting around 2.2 meters in length.
The round shell is shaped with CFD modeling to guide airflow over the roof and sides. Compared with a box trailer, drag can be reduced by up to 22%, which helps fuel economy and towing stability. The outer skin is made from molded FRP or stretch-formed stainless steel over a steel skeleton. Because the top and corners are seamless, there are fewer places for rain to collect, and water sheds naturally. This helps prevent moisture intrusion over time.
The rounded footprint removes sharp external corners, so the trailer can fit into pedestrian lanes, mall corridors, wedding gardens, and pop-up festival spaces. Inside, the layout can hold an espresso machine, under-counter fridge, cold drink dispenser, and POS system within a small floor area. Worktable height and aisle width are adjusted to the operator's needs. Layout drawings are provided before production.
Walls and ceiling use a 50 mm layer of closed-cell polyurethane or flame-retardant XPS foam injected between the outer shell and the inner stainless liner. Thermal conductivity is as low as 0.024 W/m·K. This reduces heat transfer, so the air conditioner or heater does not have to work as hard. Interior surfaces stay more stable in summer heat and winter cold.
The subframe is built from cold-formed 100 x 50 x 3.0 mm rectangular hollow structural steel tubing. The complete chassis is hot-dip galvanized to ASTM A123, giving an 80+ micron zinc coating inside and outside the tubing. Suspension uses rubber torsion axles with 185R14 radial commercial tires and electromagnetic drum brakes. This setup provides balanced load distribution and stable tracking on the road.
Walls, ceiling, counters, and backsplashes are clad in 1.0 mm food-grade 304 stainless steel with coved transitions. The rounded wall profile avoids 90-degree corners where grease can collect. The floor combines marine-grade plywood underlayment with an anti-slip aluminum checkerplate top layer and floor drain plugs. This makes hose-down cleaning faster at the end of a shift.
Plumbing uses NSF-approved food-contact PEX-B piping connected to dual 100L to 150L polyethylene freshwater and greywater tanks with electronic level sensors. A 12V demand diaphragm pump delivers 4.5 GPM at 50 PSI. The wash station includes a 3-compartment or 4-compartment 304 stainless steel sink with high-rise swivel spouts, an under-counter grease trap, and an instant electric water heater providing 65°C water for utensil sanitizing.
An IP65 weather-sealed breaker box houses a 30mA residual current device and individual miniature circuit breakers for separate circuits. Copper wiring runs through fire-retardant PVC conduits to 110V, 220V, 240V, or 380V CEE shore power inlets. This allows coffee grinders, waffle makers, hot water boilers, and refrigeration to run at the same time without overloads.
Wide pneumatic serving hatches open to create a 180-degree service window. Heavy-duty 300N gas struts hold the canopy open and form a rain shelter for waiting customers. Each opening has continuous automotive-grade rubber seals, a fold-down stainless steel service counter, and internal deadbolt locks for overnight security.
Before shipment, each trailer goes through a 30-minute deluge test in a spray chamber. High-pressure water at 35 PSI is directed at service hatches, doors, and roof seams to check for leaks. Electrical systems undergo insulation resistance testing, and water lines are pressure-tested. Each unit receives a 17-digit VIN on the drawbar, along with electrical schematics and CE homologation documents. TUNE provides a 12-month structural chassis warranty and international spare parts support.
Round Food Trailers can be supplied with CE, ISO 9001, DOT, EPR, COC, and NSF-aligned documents where required. TUNE holds Alibaba Gold Supplier status and has completed regular third-party inspections by SGS and Intertek. Certificate numbers, scope, and validity can be provided before ordering.
Q: What is the smallest size available?

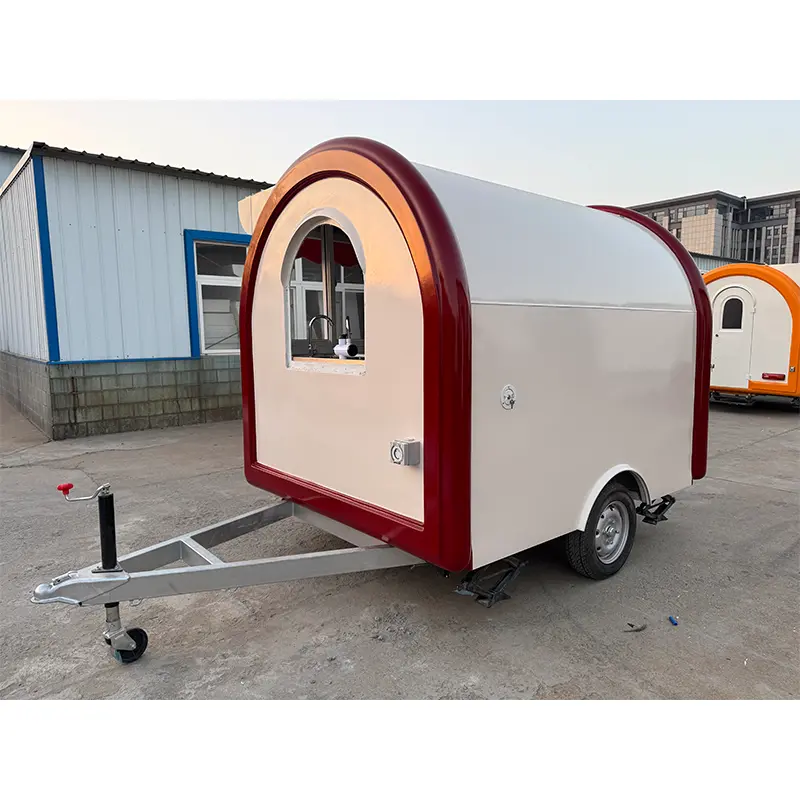

A: The compact mini round model starts at about 2.2 meters in length. It can still fit an espresso machine, under-counter fridge, and POS system. Larger sizes are available for more equipment.
Q: Does the round shape reduce towing stability?
A: No. CFD modeling and a galvanized steel chassis with rubber torsion axles keep the trailer stable at highway speed. The curved shell actually reduces drag and crosswind sensitivity compared with some box trailers.
Q: Can I use the trailer indoors?
A: Yes, with an electric setup and proper ventilation. Many operators use round trailers in mall corridors, exhibition halls, and covered event spaces. Check local rules for indoor cooking and exhaust.
Q: What after-sales support is included?
A: TUNE offers a 12-month structural chassis warranty, remote technical support, and shipment of common spare parts such as pumps, faucets, breakers, and door seals. Specific terms are stated in the contract.
