Qingdao Tune Technology Co., Ltd. manufactures Commercial Mobile Food Trailers at its 4,500-square-meter production site in Shandong, China. The Airstream shape uses a curved, double-skin body instead of flat panels, which gives the trailer a distinctive look and improves airflow during towing. This model suits coffee bars, dessert vendors, gourmet street food, and event caterers who want a recognizable exterior. Trailers can be built with mirror-polish stainless, matte black, or painted finishes.

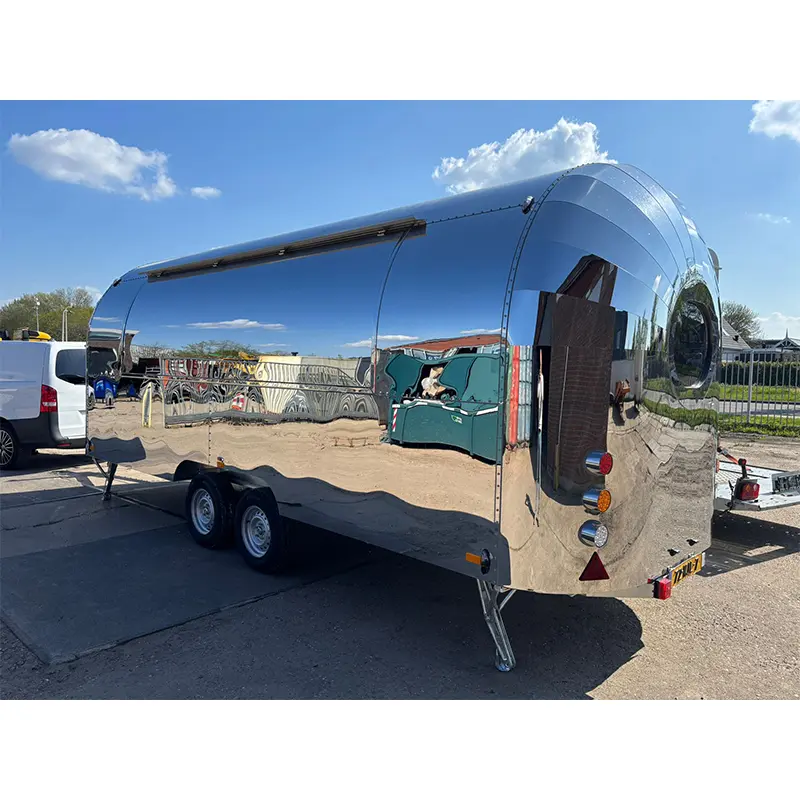

The base chassis is built from 100 x 50 x 3.0 mm cold-formed rectangular steel tubing and hot-dip galvanized to ASTM A123, giving a zinc layer over 70 microns. Suspension options include independent rubber torsion or tandem multi-leaf springs, depending on the model and load. Dual-axle electric drum brakes, 185R14 radial commercial tires, and a breakaway protection system are fitted for highway towing. GVWR can reach about 3,500 kg on the heavy-duty dual-axle version. This setup is intended to keep the trailer stable at speed and under crosswinds.
The curved double-skin wall uses an outer metal shell with a 50 mm composite core of closed-cell polyurethane foam, high-density rockwool, and a reflective aluminum radiant barrier. This combination reduces heat transfer from summer sun and winter cold, and it also dampens noise from the exhaust blower, refrigeration compressor, and cooking appliances. Interior kitchen temperatures stay more stable, which protects electronic control panels and makes long shifts more comfortable for the operator.

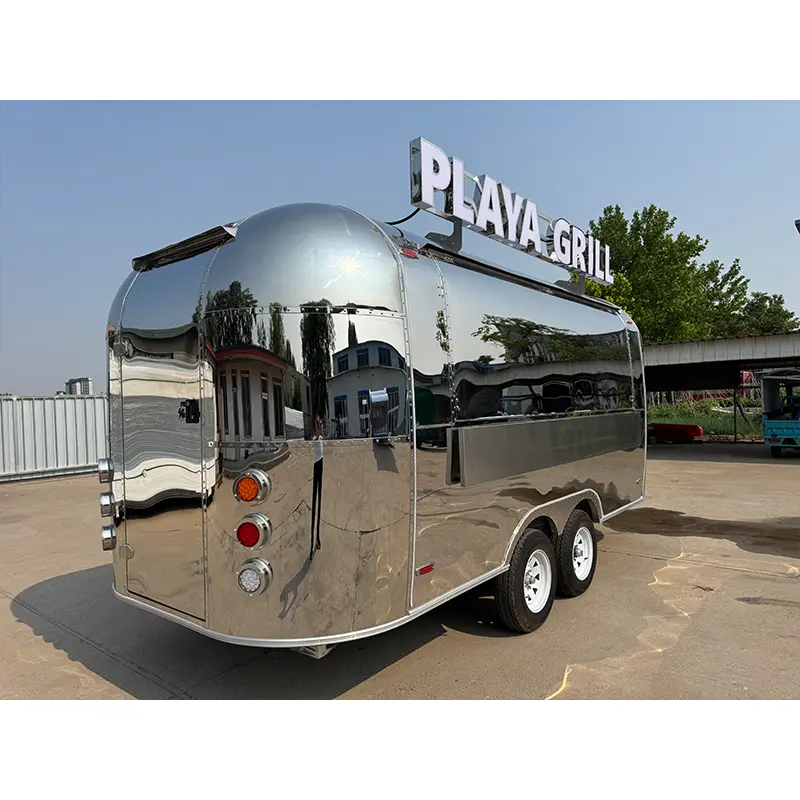

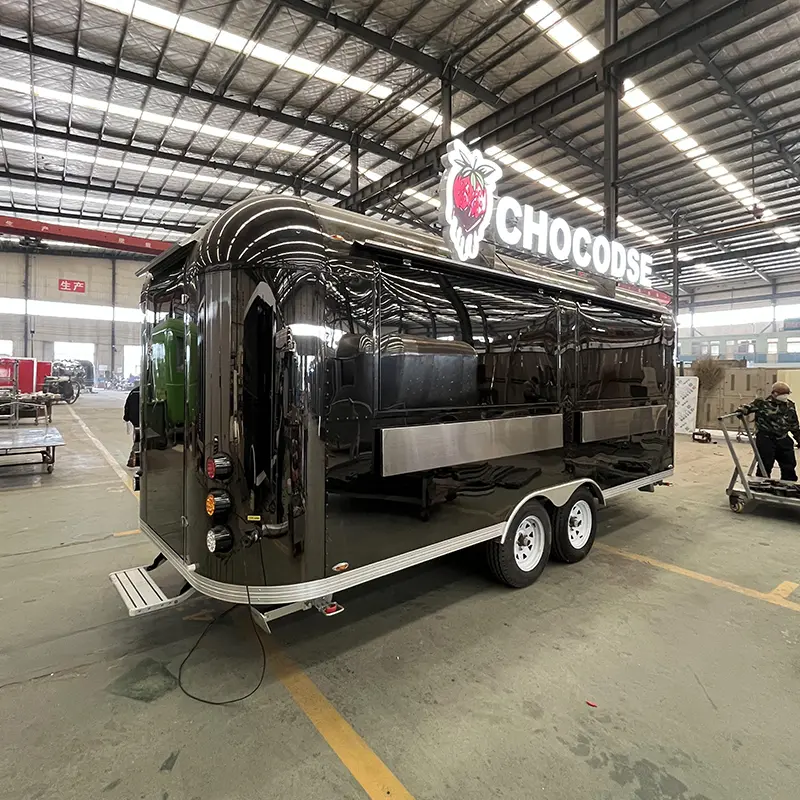

Three finish directions are common. Mirror-polish 304 stainless with an anti-fingerprint coating gives a high-reflectivity retro look and suits coffee brands. Matte black electrostatic powder coating gives an industrial appearance for street food operators. Painted finishes with custom colors and graphics are also available. Regardless of finish, the body keeps the same corrosion protection and structural rigidity. Exterior LED lighting, awnings, and service hatches can be added to match the vending window layout.
Gas appliances are connected through seamless copper manifold lines secured with vibration-resistant rubber grommets and dual-stage pressure regulators. The supply connects to an exterior steel propane bottle compartment with directional ventilation louvers and automatic solenoid shut-off valves. Above the cooking station, a 304 stainless steel exhaust hood with removable labyrinth grease filters and a top-mounted centrifugal blower rated above 1,200 CFM clears grease vapor, smoke, and heat. This arrangement is designed to support safe use of griddles, fryers, and ovens inside a moving trailer.
Each trailer uses an IP67 weather-sealed main breaker panel with a 30mA residual current device and individual miniature circuit breakers for separate appliance circuits. Flame-retardant, double-insulated copper wiring runs through rigid conduits to 110V, 220V, 240V, or 380V industrial shore power inlets. This lets the trailer run flat-top griddles, fryers, deck ovens, and espresso machines at the same time without circuit imbalance. Generator and solar preparation are available for sites without shore power.
The interior wash station includes a 3-compartment or 4-compartment 304 stainless steel sink with high-rise swivel spouts, anti-clog basket strainers, and an instant electric water heater that supplies water up to 65°C. A 12V demand diaphragm pump delivers 5.0 GPM at 45 PSI from food-grade polyethylene freshwater tanks. Below the sink, an under-counter grease trap captures oils and food particles before effluent enters the greywater tank. Tank sizes can be adjusted to suit event length and local health rules.
Worktable height is set at 850 mm with an 800 mm center aisle, which allows movement between cold storage, prep, cooking, and the serving hatch. Interior walls, counters, and shelves use 1.0 mm food-grade 304 stainless steel with coved backsplashes to reduce grease buildup. The floor combines marine-grade plywood underlayment, anti-slip aluminum treadplate, and brass drain plugs for end-of-shift cleaning. Layouts are customized around the menu, appliance list, voltage, and service window position.
Before shipment, each trailer goes through a 30-minute high-pressure water deluge test in an automated spray chamber. Multi-angle nozzles target service hatches, doors, window seals, and seams to check for leaks under storm conditions. Electrical insulation resistance tests and gas pressure drop audits confirm that wiring and gas lines meet safety standards. Each trailer receives a 17-digit VIN on the drawbar, plus wiring schematics, plumbing diagrams, and CE homologation documents for local DMV registration. TUNE provides a 12-month structural chassis warranty and stocks common replacement parts such as 12V water pumps, hydraulic window struts, door seals, and circuit breakers.
Commercial Mobile Food Trailers can be supplied with CE, ISO 9001, DOT, EPR, COC, and NSF-aligned documents where required. TUNE holds Alibaba Gold Supplier status and has completed regular third-party inspections by SGS and Intertek. Certificate numbers, scope, and validity can be provided before ordering.
Q: Is an Commercial Mobile Food Trailer harder to tow than a square trailer?
A: The curved body is slightly narrower at the top and can reduce drag at highway speed, which helps fuel economy. Weight and hitch setup depend on the model. The heavy-duty dual-axle version needs a full-size truck or heavy SUV with the correct tow rating and brake controller.
Q: Which exterior finish should I choose?
A: Mirror-polish stainless suits coffee and premium dessert brands. Matte black suits modern industrial concepts. Painted finishes allow full brand color matching. All three use the same underlying corrosion protection.
Q: Can the trailer run without shore power?
A: Yes, with the generator or solar preparation option. Without it, the trailer needs a shore power connection, usually 110V, 220V, 240V, or 380V depending on the market and equipment.
Q: How is the trailer tested before shipping?
A: Each unit undergoes a 30-minute high-pressure water deluge test, electrical insulation resistance testing, and a gas pressure drop audit. A 17-digit VIN and CE homologation documents are provided for registration.
Q: What after-sales support is included?
A: TUNE offers a 12-month structural chassis warranty, remote technical support, and shipment of common spare parts such as water pumps, door seals, window struts, and circuit breakers. Specific terms are stated in the contract.
