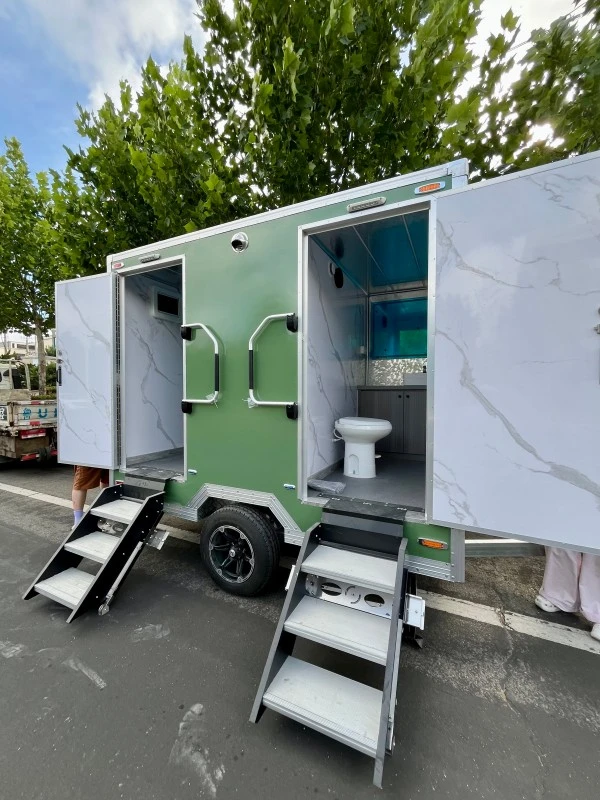

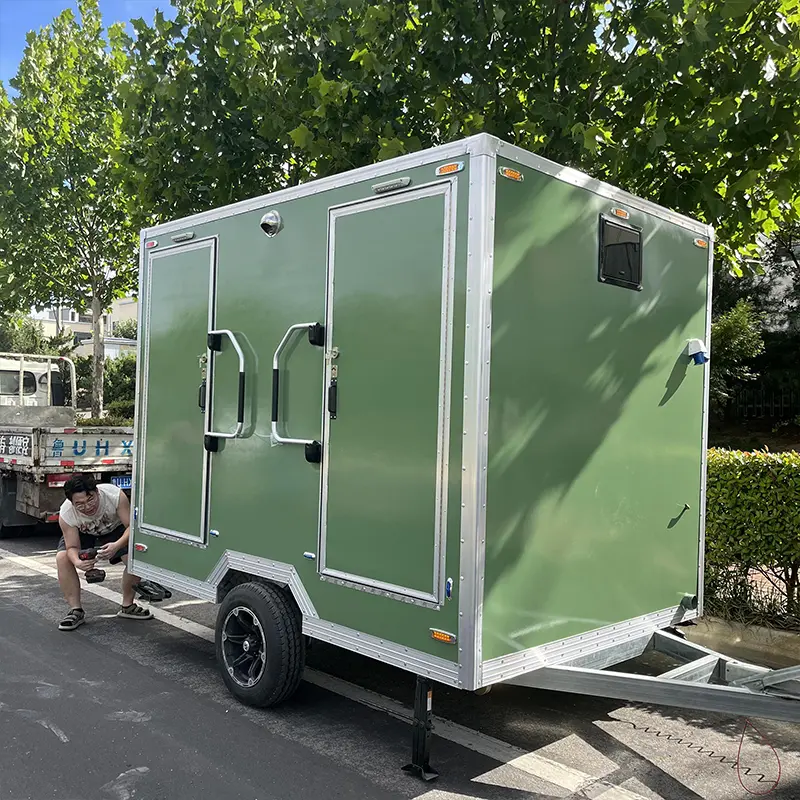

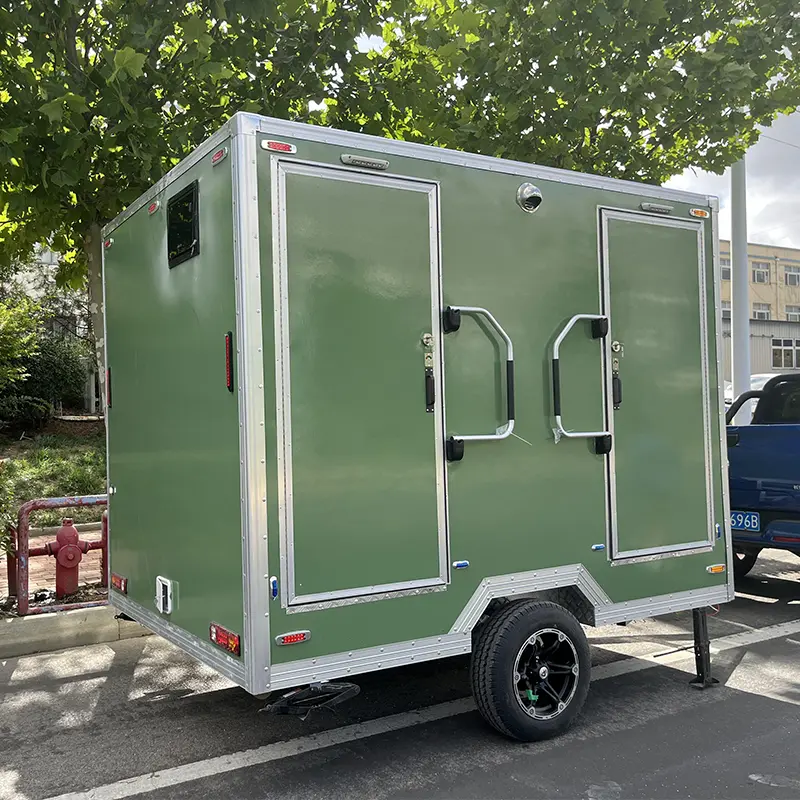

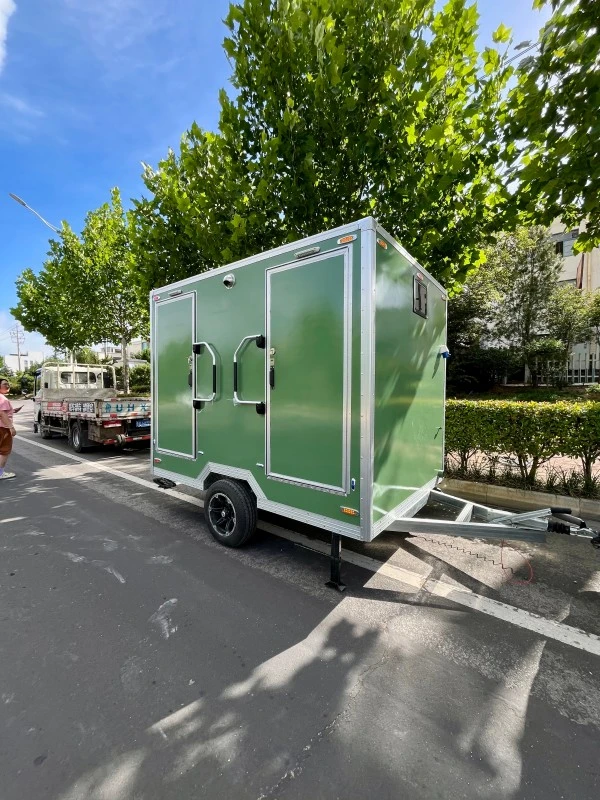

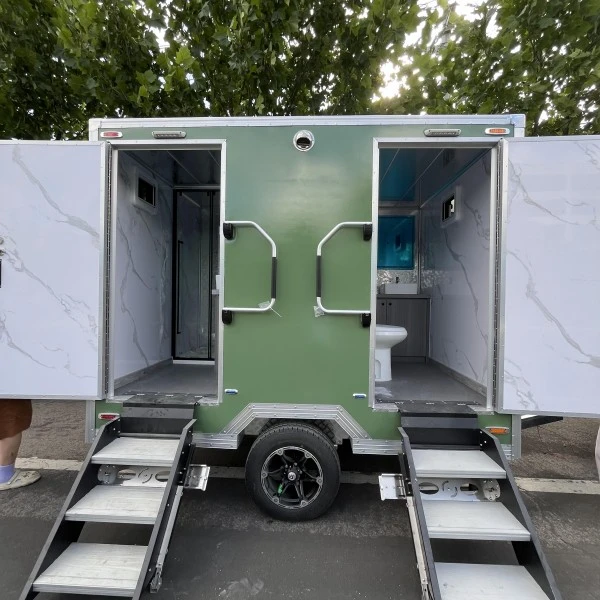

The TN-S30 Shower and Toilet Trailer is a compact mobile sanitation unit combining one private shower room and one toilet station. As a shower trailer manufacturer, Qingdao Tune Technology Co., Ltd. produces this portable restroom shower combo trailer for construction sites, outdoor events, campsites, sports activities, film locations and temporary accommodation areas. It measures approximately 3,000 × 1,800 × 2,650 mm and is supplied as a stall portable shower unit for buyers who need both washing and toilet functions in one towable body.

The manufacturer operates a 4,500 m² production facility established in 2015 and exports to more than 50 countries. Production follows ISO 9001 quality management, and applicable configurations carry CE, DOT, EPR and COC documentation. Third-party inspections are conducted by SGS and Intertek.

Technical Parameters

The dimensions and weight are reference values. The final transport weight changes after adding water heaters, electrical components, air-conditioning equipment, extra sanitary fixtures and branding materials.

Recommended Operating Procedure

The TN-S30 is designed for locations that need basic shower and restroom functions in one movable unit. It is used at small construction sites, outdoor events, campsites, sports activities, film locations and temporary accommodation areas.

Before Use

1. Position the trailer on stable and reasonably level ground.

2. Extend the support legs and check that the body is stable.

3. Fill the 400 L fresh-water tank with suitable water.

4. Inspect the pump, hoses, faucets and visible pipe connections.

5. Test the shower head and adjust the water temperature.

6. Check the toilet flushing system and sink drainage.

7. Confirm that the 800 L wastewater outlet is closed.

8. Test lighting, ventilation and optional air-conditioning equipment.

During Operation

The operator monitors water consumption and wastewater levels according to actual usage. Water demand varies with shower duration, toilet flushing, hand washing and cleaning frequency. For a busy event, the tank service interval is shorter than for a small worksite.

The shower room is cleaned regularly, especially around the floor, drain, shower fittings and door handle. Standing water is removed promptly to reduce slipping risk. The toilet, sink and faucet are checked for leakage during each cleaning round.

Interior Configuration and User Experience

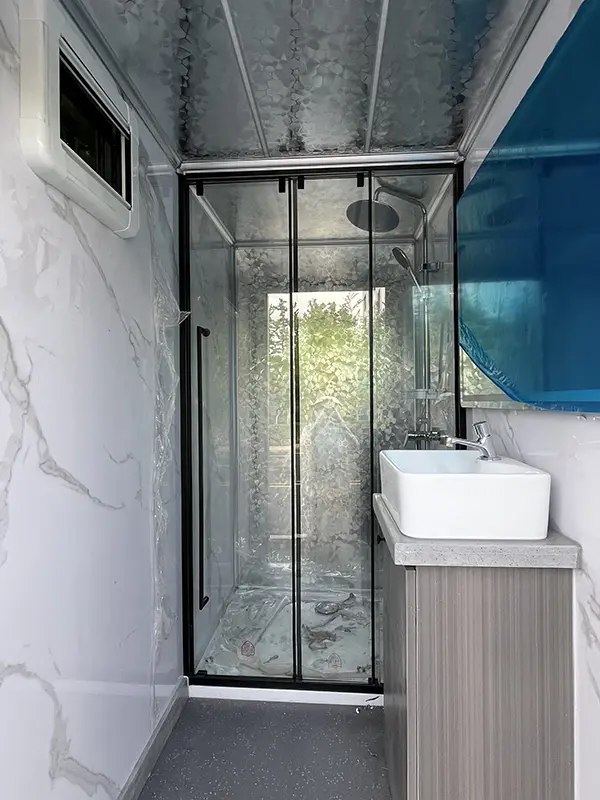

The shower area is fitted with an overhead shower head, handheld shower head and adjustable shower rod. A hot-and-cold water system is selected when the project requires temperature adjustment. The exact water-heating method, power supply and installation requirements are confirmed before production.

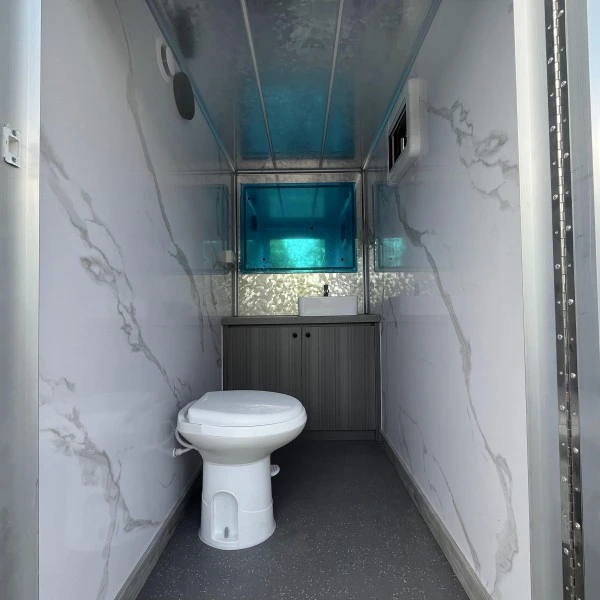

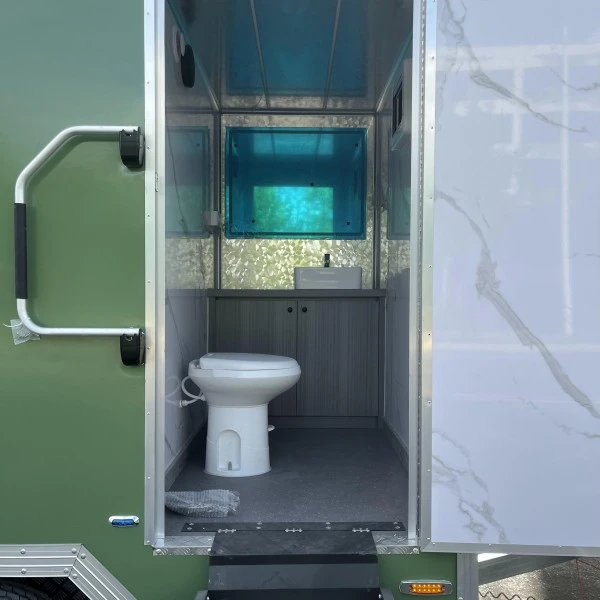

The toilet section includes a foot-flush toilet, hand-washing sink, push-button faucet, mirror with lighting and selected sanitary accessories. A men’s sensor urinal is added if the internal layout allows sufficient service and cleaning access.

The interior is customized with:

● Water heater

● Clean-water tank

● Wastewater tank

● Exhaust fan

● Additional lighting

● Air-conditioning system

● Music player system

● Storage hooks

● Interior color and finish

A compact portable restroom shower trailer is useful when the buyer wants to avoid transporting separate shower and toilet units. The available space, expected number of users and service capacity are evaluated before ordering.

Material and Safety Details

The body uses 40 mm fiberglass sandwich panels. The panel structure provides an enclosed wall system with an insulation layer, while the interior surface is maintained with cleaning products suitable for fiberglass and sanitary areas.

The shower floor uses non-slip material and has a planned drainage route. Door locks, hooks and internal fittings are checked during routine maintenance. If the unit is used in a cold region, exposed water pipes and tanks require insulation, draining or other winter protection.

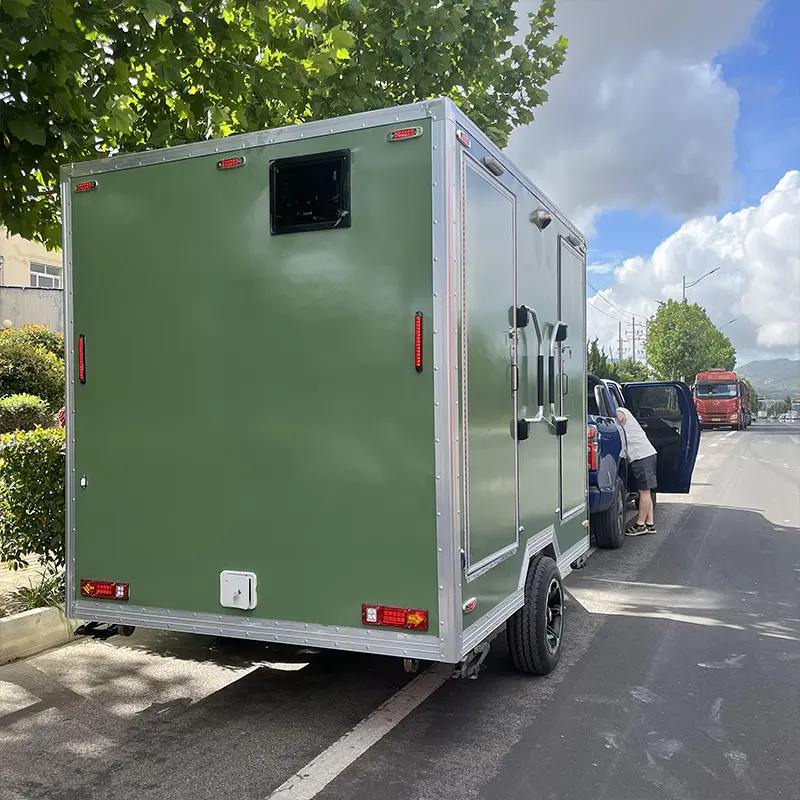

The trailer uses one torsion axle with brakes and two 195/70 R15 tires. Before relocation, inspect the hitch, safety chains, brake connection, road lights, tire condition, wheel fasteners and support legs. The towing vehicle is selected according to the fully loaded trailer weight rather than the empty reference weight.

Service Flow

Site inspection → Water and power planning → Layout confirmation → Production → Plumbing installation → Functional testing → Final inspection → Delivery → Commissioning

TUNE Factory prepares an equipment list, layout drawing, plumbing arrangement, electrical configuration, packing details and inspection checklist according to the confirmed order.

Factory Inspection Checklist

Inspection covers:

● Body dimensions and panel finish

● Door alignment and locking

● Axle, brake and tire installation

● Fresh-water tank connections

● Wastewater outlet

● Shower water flow

● Hot-water equipment, if selected

● Toilet flushing

● Sink drainage

● Faucet operation

● Lighting and ventilation

● Air-conditioning function, if included

● Packaging and loading protection

Inspection information corresponds to the actual configuration supplied. Local installation, wastewater disposal and towing requirements are confirmed by the buyer before use.

TUNE Factory Inspection and Delivery

TUNE Factory organizes inspection of the chassis, axle and brake systems, tires, body panels, water tanks, shower fittings, sinks, lighting, mirrors, ventilation and selected electrical equipment.

The delivery package includes:

● Approved technical drawing

● Equipment list

● Plumbing information

● Electrical requirements

● Operation and maintenance instructions

● Loading and packing details

● Inspection records

● Spare-parts recommendations

The combo shower trailer is evaluated as part of the complete sanitation plan. Reliable daily use depends on correct site selection, adequate water and power, controlled wastewater disposal, trained operators and a documented maintenance routine.

Certifications

CE marking — EU safety, health and environmental protection standards.

ISO 9001 — international quality management system standard.

DOT certification — U.S. Department of Transportation safety standards.

Frequently Asked Questions

1. What is the Shower Trailer used for?

The Shower Trailer is a mobile sanitation unit that combines one private shower room with one toilet facility. It is suitable for outdoor events, construction sites, campsites, sports activities, film locations, temporary accommodation and other projects where fixed bathroom facilities are unavailable or insufficient.

2. What is the difference between a Stall Portable Shower and a regular mobile restroom trailer?

A Stall Portable Shower provides shower facilities in addition to toilet and hand-washing functions. The TN-S30 model is configured with one shower and one toilet, making it suitable for small teams, private events and compact temporary facilities.

3. Does the trailer include both a shower and a toilet?

Yes. The standard layout includes:

● One private shower room

● One toilet station

● Foot-flush toilet

● Hand-washing sink

● Push-button faucet

● Shower fittings

● Fresh-water and wastewater tanks

The final equipment list is confirmed before production because the interior is customized.

4. What is the model of this Portable Restroom & Shower Combo Trailer?

The model is TN-S30. It has one shower and one toilet in a compact body measuring approximately 3,000 × 1,800 × 2,650 mm.

5. What are the overall dimensions of the trailer?

The reference dimensions are:

● Metric size: 3,000 × 1,800 × 2,650 mm

● Approximate imperial size: 9.84 × 5.90 × 8.36 ft

The required parking, turning and service space is checked according to the delivery vehicle and installation location.
