Qingdao Tune Technology Co., Ltd. produces compact Food Carts at its 4,500-square-meter assembly facility in Shandong, China. These units are designed for street vendors, event caterers, park concessionaires, and small business owners who need a mobile food setup that is easy to move and quick to deploy. Food Carts are available in hand-pushed, electric, and gasoline-powered versions, with different sizes and equipment layouts to match local market conditions and municipal rules. TUNE has exported mobile food units to more than 50 countries since 2015.

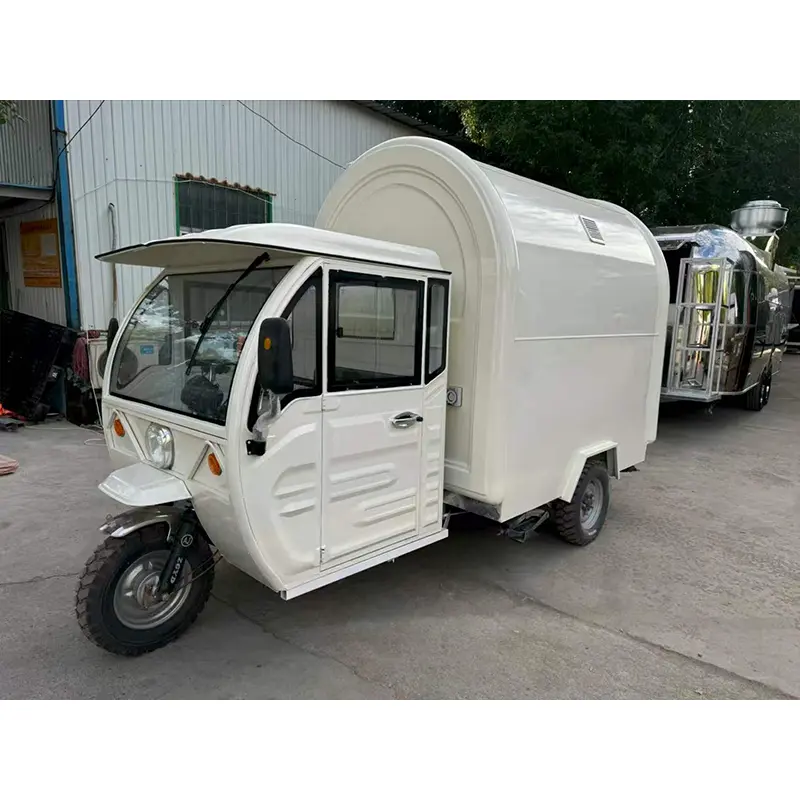

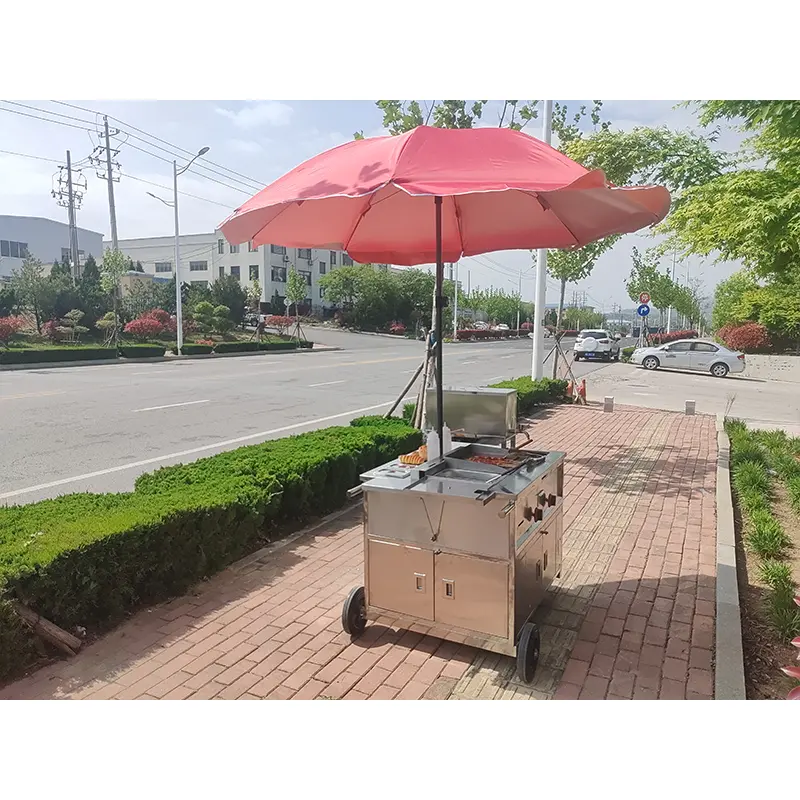

The frame of each Food Cart is made from cold-rolled steel structural tubing with anti-corrosion primer. Hand-pushed models use heavy-duty caster wheels, dual rear pneumatic tires, and a balanced push handle for manual transport. Electric models use a 48V or 60V brushless DC motor rated between 1,000W and 1,500W, powered by a lithium iron phosphate (LiFePO4) or deep-cycle lead-acid battery. Gasoline models use a 150cc to 250cc single-cylinder four-stroke engine with a 5-speed manual transmission and reverse gear. Depending on the model, payload capacity can reach about 600 kg.
The upper work area is built from 1.0 mm food-grade 304 stainless steel with coved seams for easier cleaning. Cooking equipment can include steam pans, cast-iron griddles, deep fryers, and ice-chilled condiment compartments. Under-counter cabinets and lockable sliding drawers provide storage for dry goods, utensils, and packaging. The compact footprint is intended for pedestrian streets, night markets, park paths, and indoor exhibition halls where larger towable units may not fit.
Each Food Cart has a centralized DC circuit panel with fused branch wiring, an inline master shut-off switch, and IP65 weather-sealed harnesses. Motorized models use a DC-to-DC converter to step down traction voltage to a stable 12V supply for LED canopy lights, water pumps, POS systems, and small refrigeration. This separation helps prevent voltage drops that could affect drive motor performance.
The plumbing system uses food-contact certified PEX piping connected to dual 20L to 40L HDPE freshwater and greywater tanks. A 12V demand diaphragm pump delivers 3.0 GPM at 35 PSI. The sanitation bay includes a 2-compartment or 3-compartment 304 stainless steel sink with a high-rise swivel faucet and an inline instant water heater that supplies 55°C water for handwashing and utensil cleaning. These features are designed to help operators meet local health department requirements.
Lower storage compartments and cold-holding bays are lined with 30 mm thick high-density polyurethane (PU) foam insulation. This helps maintain ice-chilled beverage bays and refrigerated drawers during long shifts. A folding canopy made from waterproof, UV-resistant 600D PVC-coated Oxford fabric or rigid aluminum composite panels covers the main workstation. The canopy provides shade and rain protection for both the operator and the prep area.
Before shipment, each Food Cart undergoes electrical, water pump, and drivetrain stress tests under simulated load. Brake linkages, parking locks, and tire pressure are checked for safe stationary positioning and transit control. TUNE provides a 12-month factory warranty on the main structural frame and supplies maintenance schematics. Common spare parts such as water pumps, canopy frames, tires, and electrical switches are available for international delivery.
TUNE Food Carts can be supplied with CE, ISO 9001, DOT, EPR, COC, and NSF-aligned documents where applicable. As an Alibaba Gold Supplier with more than 8 years of export experience, TUNE undergoes regular third-party inspections by SGS and Intertek. Certificate numbers, scope, and validity can be provided on request.
Q: What is the difference between a Food Cart and a Food Trailer?
A: A Food Cart is a compact unit that can be pushed or motorized. A Food Trailer is a towable unit that requires a vehicle. Food Carts are suited to pedestrian areas and small spaces. See Food Trailer for towable options.
Q: Which power option should I choose?
A: Hand-pushed carts suit short distances and flat areas. Electric carts suit zero-emission zones and daily routes up to about 45 km per charge. Gasoline carts suit hilly terrain, unpaved roads, and areas with limited charging infrastructure.
Q: Can I customize the cart for my menu?
A: Yes. TUNE customizes the layout, cooking equipment, sink configuration, voltage, canopy, colors, and branding based on your menu and local regulations.
Q: What is the typical lead time?
A: Lead time depends on model, equipment, and customization. After drawings and deposit are confirmed, most orders take several weeks to a few months. The exact schedule is confirmed at order.
Q: What after-sales support is included?
A: TUNE offers a 12-month structural warranty, remote technical support, and shipment of common spare parts. Specific terms are stated in the contract.
