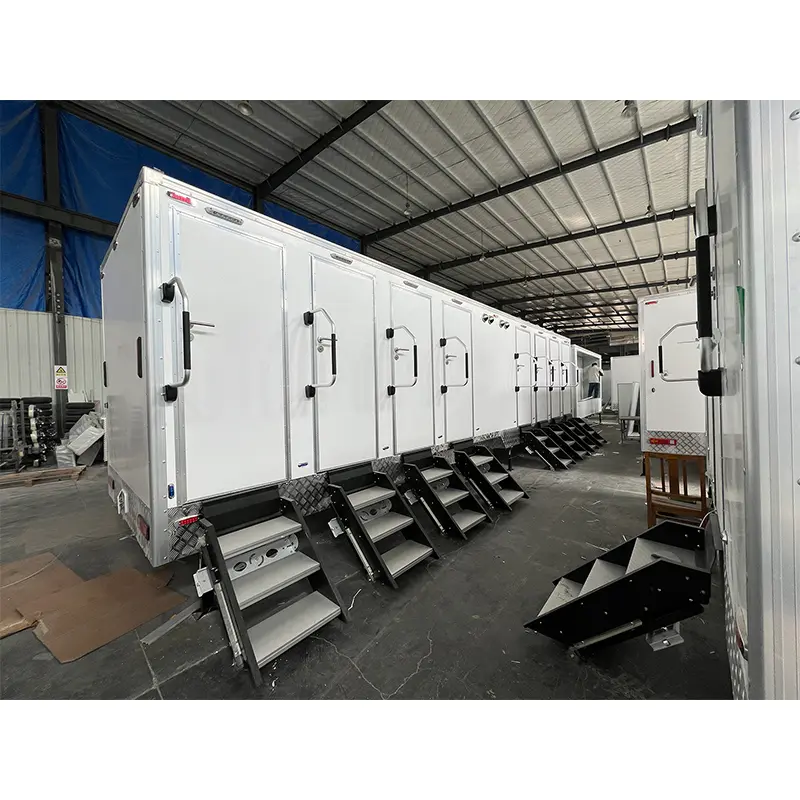

The Heavy-Duty Industrial Jobsite Shower Trailer is intended for high-demand locations where several workers or users need access to shower facilities within a limited operating period. Typical applications include mining camps, oil and infrastructure projects, seasonal agricultural worker housing, outdoor festivals, temporary camping areas and emergency deployment sites.
TUNE manufactures this model, TN-S85, at its factory in Shandong, China. Since 2015, TUNE has produced mobile sanitation units, food trailers and custom mobile facilities for customers in North America, Europe, Australia and other export markets.

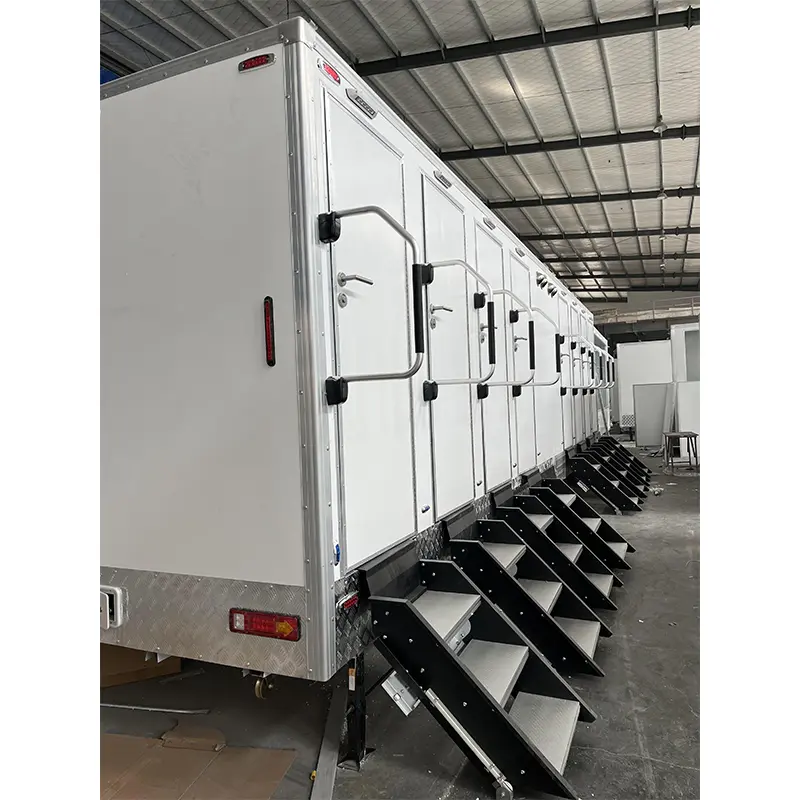

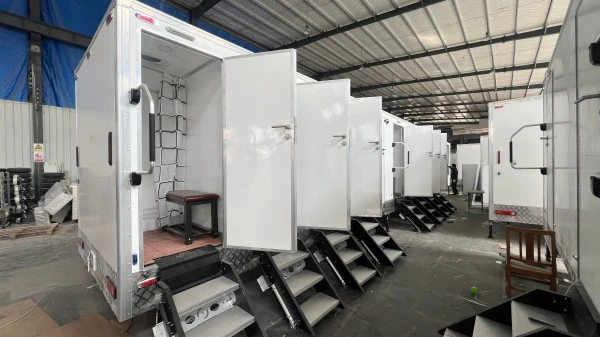

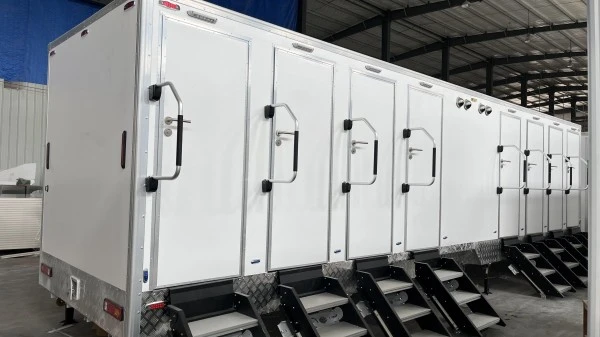

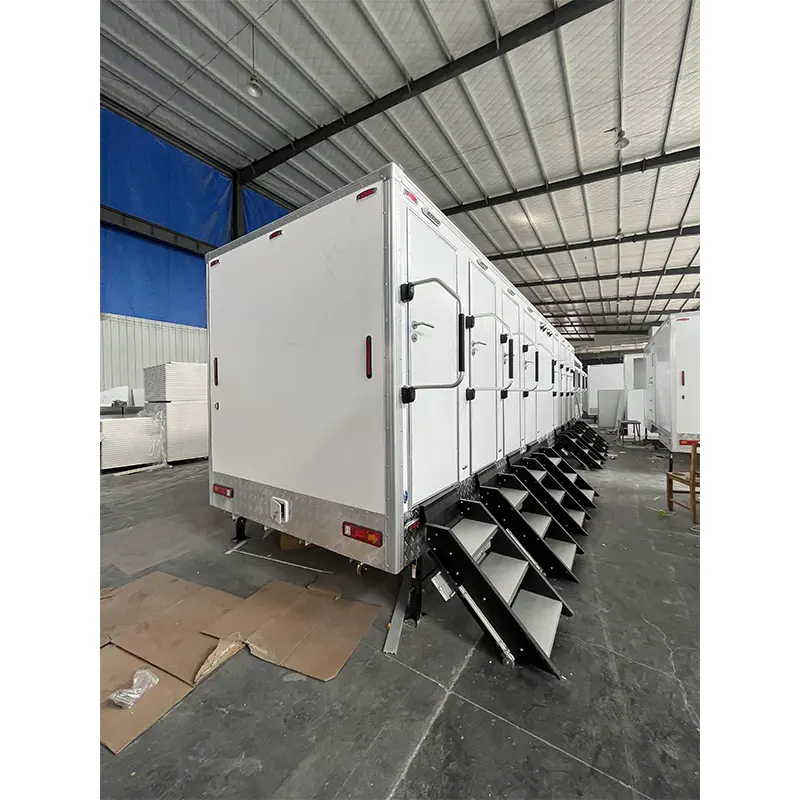

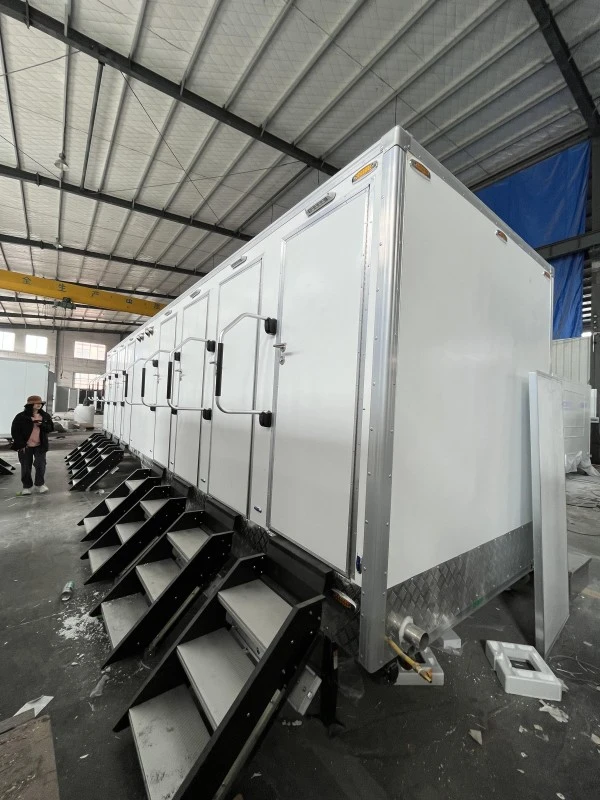

A construction site shower trailer can provide eight shower positions in one mobile structure. Actual throughput depends on shower duration, hot-water recovery, water pressure, tank servicing, cleaning time and the number of operating shifts. It should not be treated as a fixed user-capacity figure without a project-specific calculation.
|
Item |
Specification |
|
Product Name |
Heavy-Duty Industrial Jobsite Shower Trailer |
|
Model |
TN-S85 |
|
Layout |
8 shower stations |
|
Overall Size |
8,500 × 2,100 × 2,650 mm |
|
Approximate Size |
27.88 × 6.88 × 8.69 ft |
|
Reference Weight |
1,800 kg / 3,968 lb |
|
Axle |
3 torsion axles with brakes |
|
Reference Load |
5,400 kg |
|
Tires |
6 × 195/70 R15 |
|
Wall Material |
40 mm fiberglass sandwich panel |
|
Fresh-Water Tank |
1,000 L stainless steel tank |
|
Wastewater Tank |
2,300 L stainless steel tank |
|

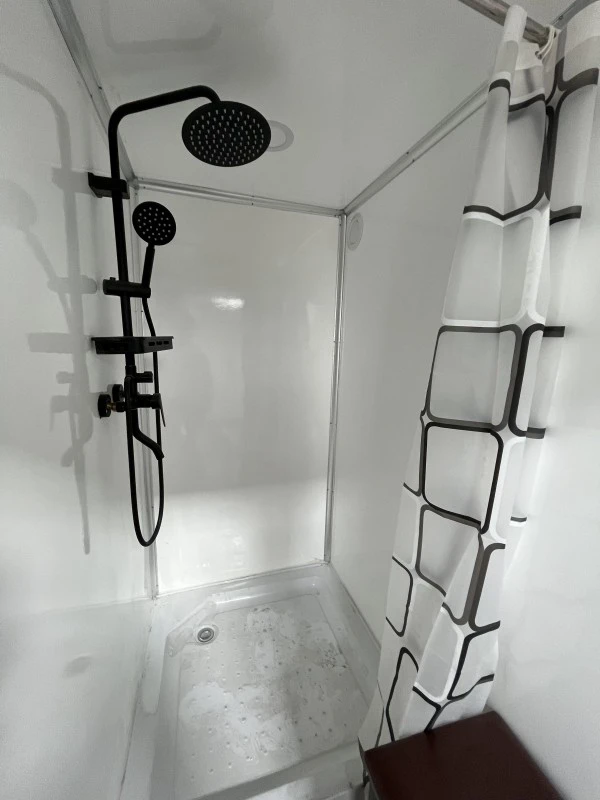

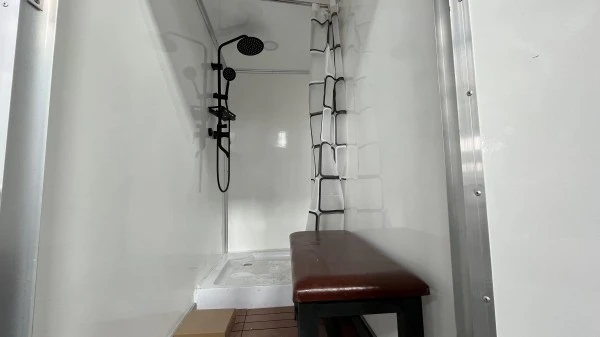

Shower Equipment |
Shower heads, curtains and hot-and-cold water system |
|
Washing Facilities |
Wash sinks |
|
Interior Equipment |

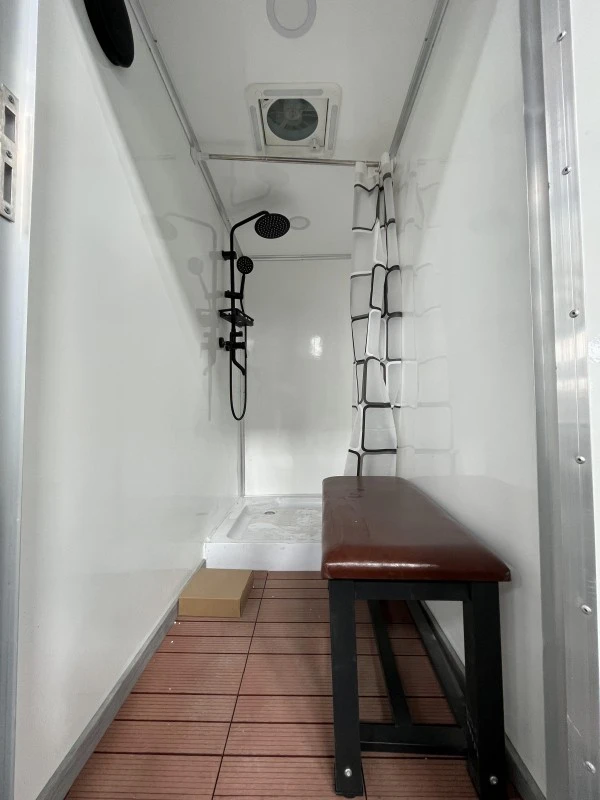

LED light mirrors, non-slip floor, lighting and selected ventilation equipment |
|
Optional Equipment |
Air conditioning, music playback system and customized storage |
|
Exterior Color |
Customized according to the approved color card |
The above data is for initial planning. Final weight, power requirements and water-system details may change according to the selected heater, air-conditioning system, storage lockers, electrical components and branding.
At a mining or construction site, the shower trailer should be separated from heavy equipment routes, blasting areas, fuel storage and material handling zones. A stable access road is necessary because the TN-S85 is larger and heavier than compact models.
A site manager should prepare a daily service record covering water levels, wastewater levels, shower condition, floor cleanliness, electrical equipment and visible damage. If several shifts use the unit, cleaning should be arranged between major usage periods.
Seasonal farms and livestock facilities may use the unit where permanent shower buildings are unavailable. The operator should consider mud, dust, uneven ground, drainage and distance from accommodation areas.
The exterior and underbody should be cleaned regularly when the trailer operates in wet soil or agricultural environments. A protected service area can make tank filling, wastewater removal and maintenance easier.
For festivals, marathons, outdoor exhibitions and camping grounds, the eight shower bays can be planned as part of a larger temporary facility. Clear signs, adequate lighting, queue space and scheduled cleaning are important for user flow.
The trailer should not block emergency routes or interfere with food-service, medical or vehicle-access areas. Event organizers should calculate demand based on peak attendance and operating hours rather than total attendance alone.
The unit may be considered for temporary shelters and response camps when transport access, water supply, wastewater handling and power generation are available. Emergency deployment still requires site assessment, sanitation supervision and local authority coordination.
The phrase “rapid deployment” should be understood as a logistical objective, not a guaranteed installation time. Delivery depends on road conditions, customs, weather, site preparation and available service equipment.
Transport inspection → Ground assessment → Chassis stabilization → Water connection → Wastewater inspection → Heater and power test → Shower-flow test → Cleaning setup → User operation
Before the first shift:
1. Confirm that the trailer is parked on stable ground.
2. Deploy all support and stabilizing equipment.
3. Inspect the three-axle chassis and brake connections.
4. Fill the 1,000 L fresh-water tank or connect the approved supply.
5. Check the 2,300 L wastewater tank and outlet.
6. Test each shower station individually.
7. Adjust hot-and-cold water controls.
8. Check sinks, mirrors, lighting and ventilation.
9. Place cleaning tools and operating instructions in the service area.
During operation, staff should monitor water pressure, temperature, drainage, tank levels and floor conditions. Shower curtains, fittings and controls should be inspected because frequent use can loosen components over time.
The non-slip flooring helps improve traction in wet areas, but regular cleaning remains necessary. Soap residue, mud and standing water can still increase slipping risk.
Recommended maintenance includes:
● Daily cleaning of shower floors and sinks
● Inspection of shower heads and hoses
● Checking curtains, hooks and rails
● Testing LED mirrors and internal lighting
● Cleaning ventilation openings and air-conditioning filters
● Monitoring pump noise and water pressure
● Checking tank outlets and pipe joints
● Inspecting tire wear and wheel fasteners
● Reviewing brake and road-light connections
● Checking exposed chassis areas for corrosion
In freezing conditions, the operator should drain or protect exposed pipes and tanks. In coastal or industrial areas, salt, chemical dust and moisture may accelerate corrosion, so the chassis and underbody should receive more frequent inspection.
The TN-S85 uses three torsion axles with brakes and six 195/70 R15 tires. The towing vehicle and transport method must be selected according to the actual loaded weight, not only the 1,800 kg reference empty weight.
Before delivery, confirm:
● Road width and turning radius
● Bridge and height restrictions
● Ground bearing conditions
● Loading and unloading equipment
● Towing connection
● Parking and stabilization area
● Water filling position
● Wastewater pumping route
● Electrical or generator location
● Local registration and transport rules
The full tanks, heater, air conditioner, stored equipment and other accessories can significantly affect the transport condition. The final loading plan should therefore be confirmed with the supplier and logistics provider.
TUNE's factory covers approximately 4,500 square meters and follows a complete production process from material preparation to final inspection. The manufacturing system is managed under ISO 9001. For export orders, CE and DOT documents can be supplied where applicable to the final configuration and destination market. SGS and Intertek third-party inspections can be arranged before shipment. Certificate scope depends on the selected heater, electrical system, water system, trailer configuration, and delivery country. Buyers should confirm the required documents before production.
The unit has eight shower bays, but the number of people it can serve depends on shower duration, shift timing, water supply, heating capacity, cleaning intervals and wastewater servicing. A project calculation should be completed before purchase.
The trailer lists a 1,000 L fresh-water tank, a 2,300 L wastewater tank and a hot-and-cold water system. The exact heater type, pump, voltage and power demand should be confirmed in the final quotation. Buyers should state whether electricity, gas or another energy source is available on site.
Lockable lockers, storage, air conditioning and selected electrical equipment can be discussed as customized options. Their inclusion may affect the internal layout, weight and user circulation.
This depends on the selected pump, heater, lighting, air-conditioning system and other electrical equipment. A generator or independent power system may be required if grid power is unavailable.
Buyers should request the final technical drawing, equipment schedule, reference weight, water-system layout, electrical requirements, inspection checklist, packing dimensions and warranty terms. Any certification or local compliance statement should match the exact model and destination market.
TUNE factory can organize inspection of the chassis, axle and brake systems, tires, body panels, water tanks, shower fittings, sinks, lighting, mirrors, ventilation and selected electrical equipment.
The delivery package may include:
● Approved technical drawing
● Equipment list
● Plumbing information
● Electrical requirements
● Operation and maintenance instructions
● Loading and packing details
● Inspection records
● Spare-parts recommendations
The mobile shower trailer should be evaluated as part of the complete sanitation plan. Reliable daily use depends on correct site selection, adequate water and power, controlled wastewater disposal, trained operators and a documented maintenance routine.
