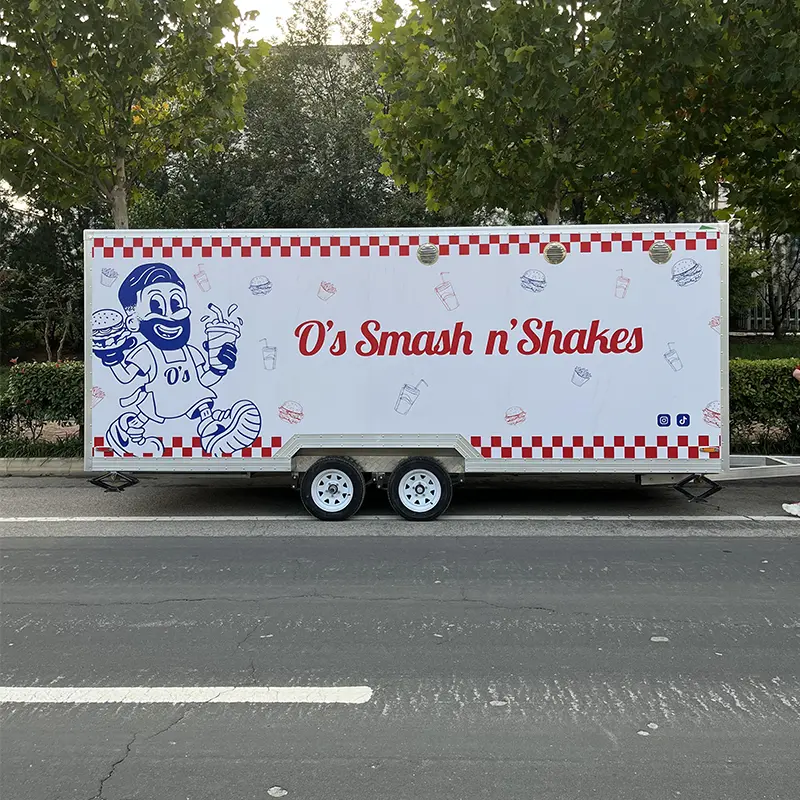

Qingdao Tune Technology Co., Ltd. builds Square Food Trailers at its 4,500-square-meter production site in Shandong, China. The square profile uses 90-degree vertical walls, which gives more usable floor and wall space than a curved body. Standard commercial kitchen equipment can sit flush against the walls, so the layout is easier to plan and install. This shape suits burger kitchens, pizza trailers, bakery units, coffee bars, and full commercial kitchens.
The square body is designed with CAD software to remove interior dead zones. Vertical side walls allow standard appliances, such as under-counter fridges, griddles, and fryers, to be mounted without custom trimming. Smooth corner radii and tapered front edge moldings are added to reduce wind resistance during towing and to improve tracking at highway speed. The result is a box shape that still behaves predictably on the road.

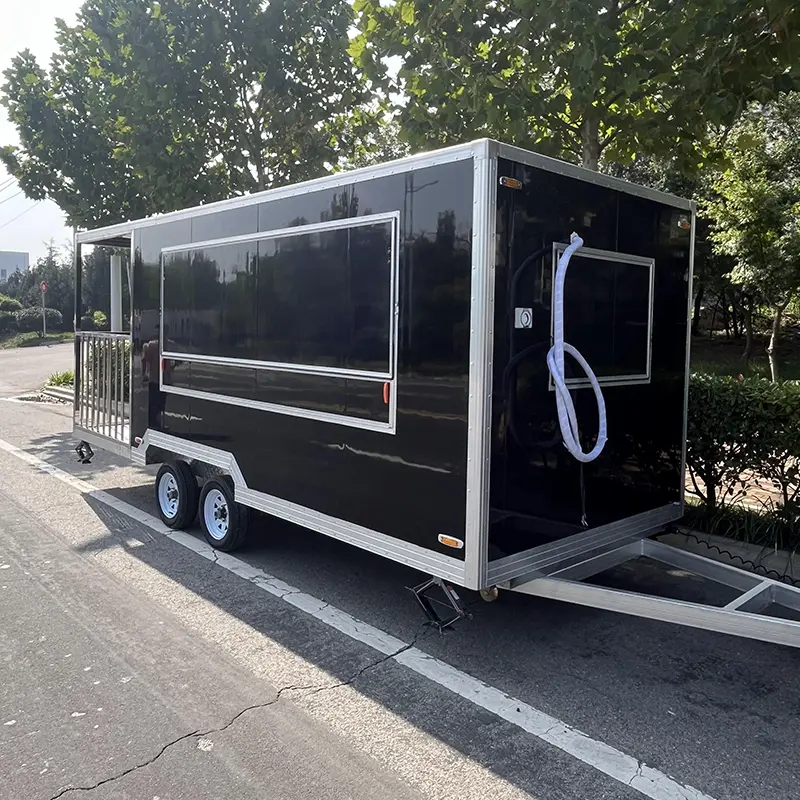

The subframe is fabricated from cold-formed 100 x 50 x 3.0 mm rectangular hollow structural steel tubing. The complete frame is hot-dip galvanized to ASTM A123, which gives an 80+ micron zinc coating inside and outside the tubing. This protects the chassis from road de-icing chemicals and coastal moisture. The design is intended to resist chassis flex and metal fatigue when heavy cooking equipment and refrigeration units are installed. The galvanized version is often specified for high-load kitchen builds.
Side walls and floors use multi-layer acoustic insulation to reduce equipment hum and generator vibration. Generator compartments are lined with fire-rated acoustic foam and mounted on anti-vibration rubber isolators. This helps keep noise within local municipal limits, which is useful for suburban neighborhoods, corporate parks, and evening event zones.

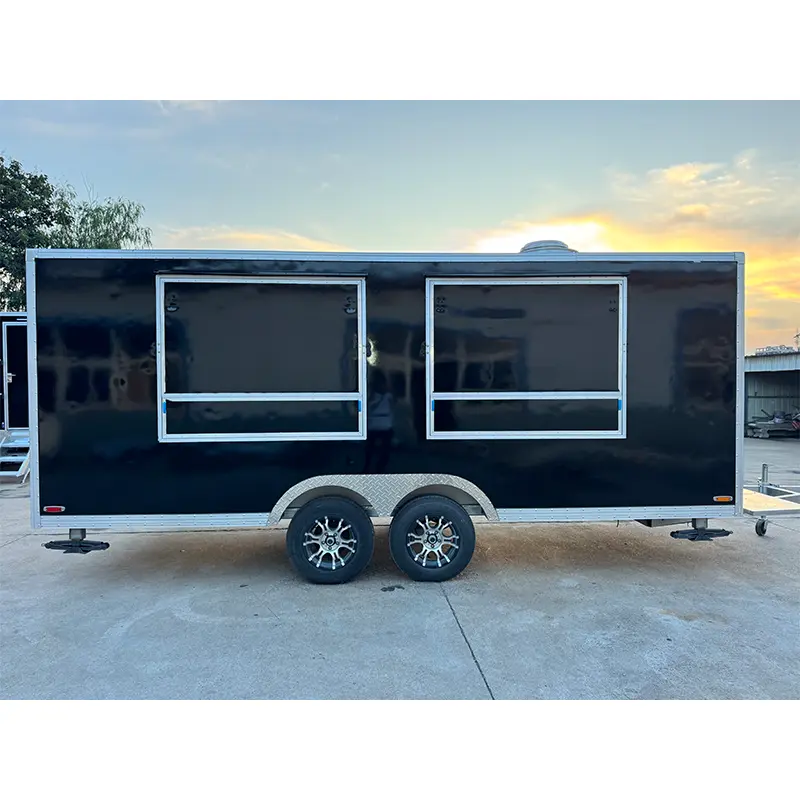

Service hatches are available in single or multi-window layouts. Separate openings for ordering, payment, and pickup can reduce queue times at large events. Each canopy uses heavy-duty 300N gas struts, continuous rubber weather strips, and internal deadbolts for overnight security. Multi-window configurations are common on the Multi-Window Square Vending Trailer.
Each trailer includes an IP67 weather-sealed central distribution panel with a 30mA residual current device (RCD/GFCI) and individual miniature circuit breakers for separate appliance circuits. Multi-core copper cabling runs through flame-retardant rigid PVC conduits from 110V, 220V, 240V, or 380V industrial CEE inlets. This allows simultaneous operation of induction cookers, espresso machines, deep fryers, and refrigeration without thermal trips or voltage drops.

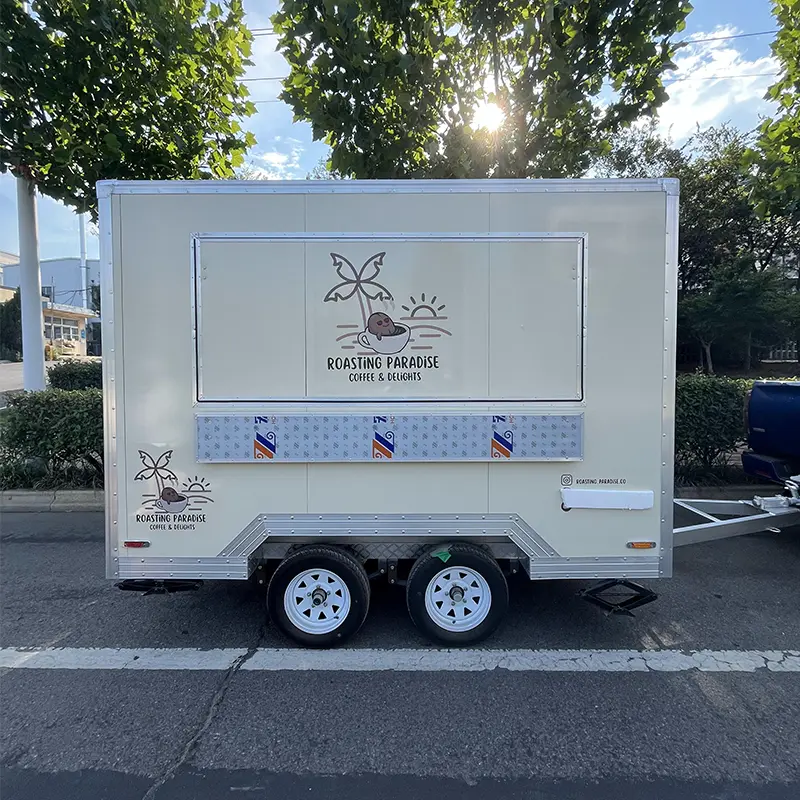

Cooking appliances are anchored to structural floor joists and reinforced wall studs with anti-vibration steel brackets. This prevents shifting during transit. Gas manifolds use seamless copper tubing with dual-stage pressure regulators and automatic shut-off valves. For full kitchen builds, the Commercial Full Kitchen Mobile Trailer configuration integrates gas fryers, flat-top griddles, charbroilers, and under-counter refrigeration in a single unit.
The plumbing system uses NSF-approved food-contact PEX-B piping connected to dual 100L to 150L polyethylene freshwater and greywater tanks with electronic fluid sensors. A 12V demand diaphragm pump delivers 4.5 GPM at 50 PSI. The wash station includes a 3-compartment or 4-compartment 304 stainless steel sink with an under-counter grease trap, high-rise swivel spouts, and an instant electric water heater providing water up to 65°C. This setup is designed to help operators pass municipal health inspections.
A 304 stainless steel exhaust canopy with removable baffle grease filters sits above the cooking equipment. A top-mounted centrifugal blower rated above 1,200 CFM evacuates grease-laden vapors and heat. Low-velocity make-up air vents in the side walls maintain balanced internal static pressure, which reduces backdrafts and keeps the cabin cooler during long cooking shifts.
Interior walls, ceilings, backsplashes, and countertops are clad in 1.0 mm food-grade 304 stainless steel with coved joints. The floor uses marine-grade plywood underlayment covered by anti-slip aluminum checkerplate with recessed drain plugs. These surfaces are designed for end-of-shift wash-down and reduce the chance of food particle buildup in seams.
Before shipment, each Square Food Trailer goes through a 30-minute deluge test in an environmental chamber. High-pressure water jets at 35 PSI target service hatches, doors, and roof seams to check for leaks. Electrical systems undergo insulation resistance testing, and gas manifolds are pressure-audited for 24 hours. Each unit receives a 17-digit VIN on the drawbar, plus CE homologation certificates and wiring schematics. TUNE provides a 12-month structural chassis warranty and global technical support.
Square Food Trailers can be supplied with CE, ISO 9001, DOT, EPR, COC, and NSF-aligned documents where required. TUNE holds Alibaba Gold Supplier status and has completed regular third-party inspections by SGS and Intertek. Certificate numbers, scope, and validity can be provided before ordering.
Q: Why choose a square trailer over a curved one?
A: A square body gives more usable wall and floor space. Appliances sit flush, and interior layout is simpler. The trade-off is slightly higher wind resistance, which is reduced by corner radii and tapered front moldings.
Q: Can I install my own cooking equipment?
A: Yes. The subframe and wall studs are designed for anchored appliances. We can also supply a turnkey build with fryers, griddles, ovens, and refrigeration already installed and tested.
Q: What electrical power do I need?
A: The trailer can be configured for 110V, 220V, 240V, or 380V single-phase or three-phase shore power. The panel uses separate breakers for each appliance group, so high-draw equipment can run at the same time.
Q: How is the trailer tested before shipping?
A: Each unit completes a 30-minute deluge test at 35 PSI, electrical insulation resistance testing, and a 24-hour gas pressure audit. A 17-digit VIN and CE homologation documents are provided for registration.
Q: What after-sales support is included?
A: TUNE offers a 12-month structural chassis warranty, remote technical support, and shipment of common spare parts such as water pumps, gas valves, breakers, and door seals. Specific terms are stated in the contract.
