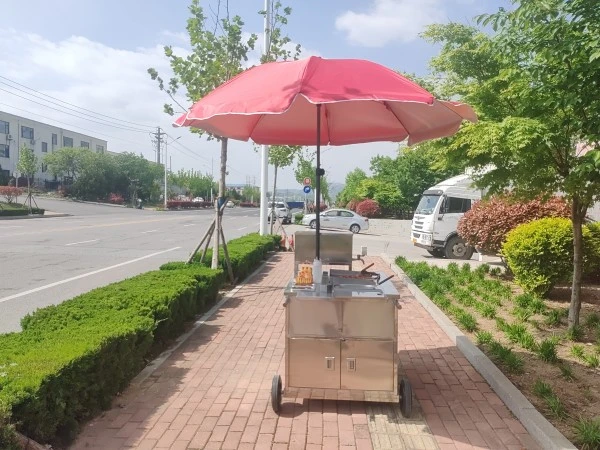

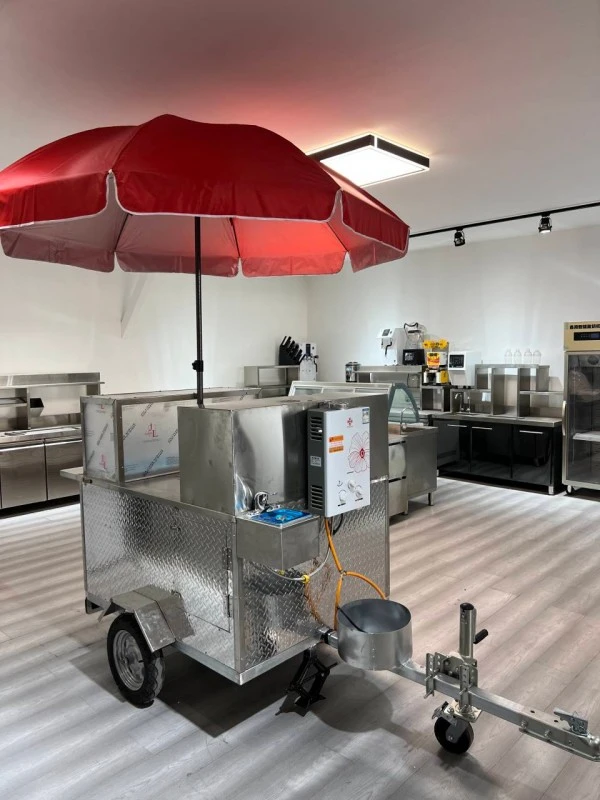

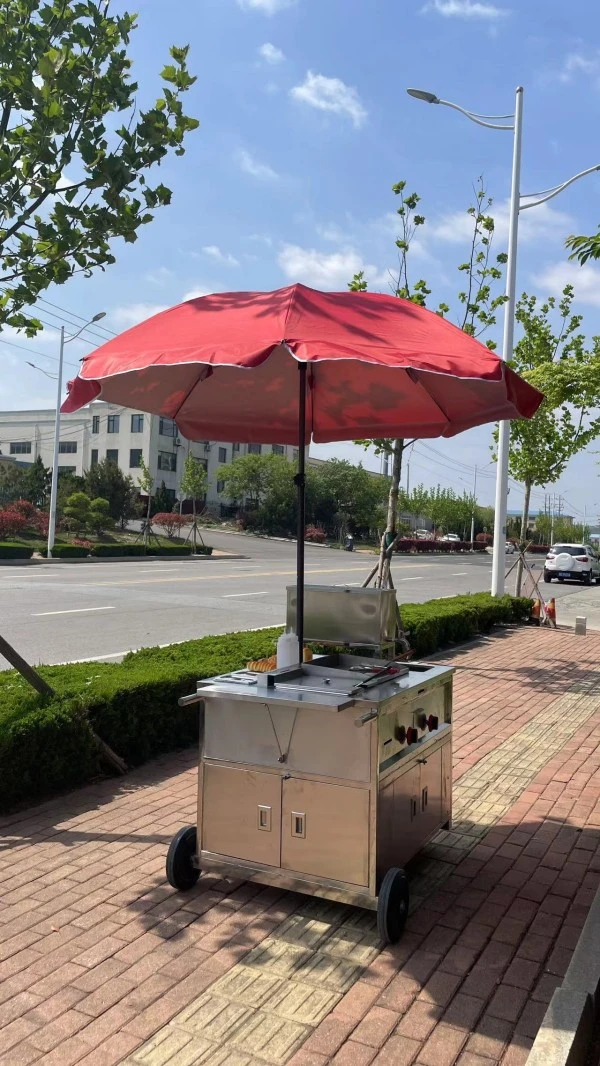

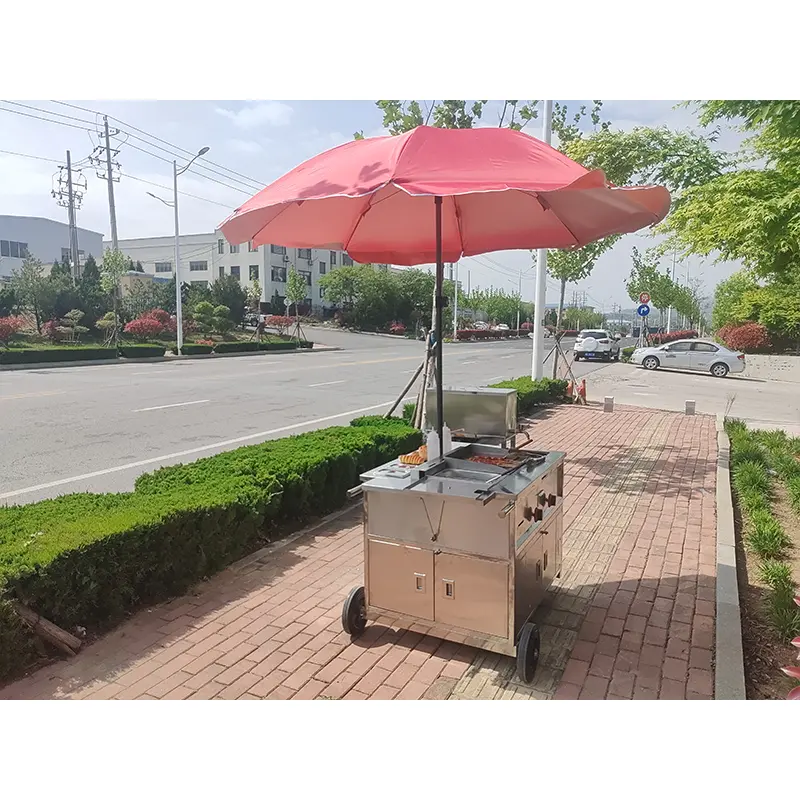

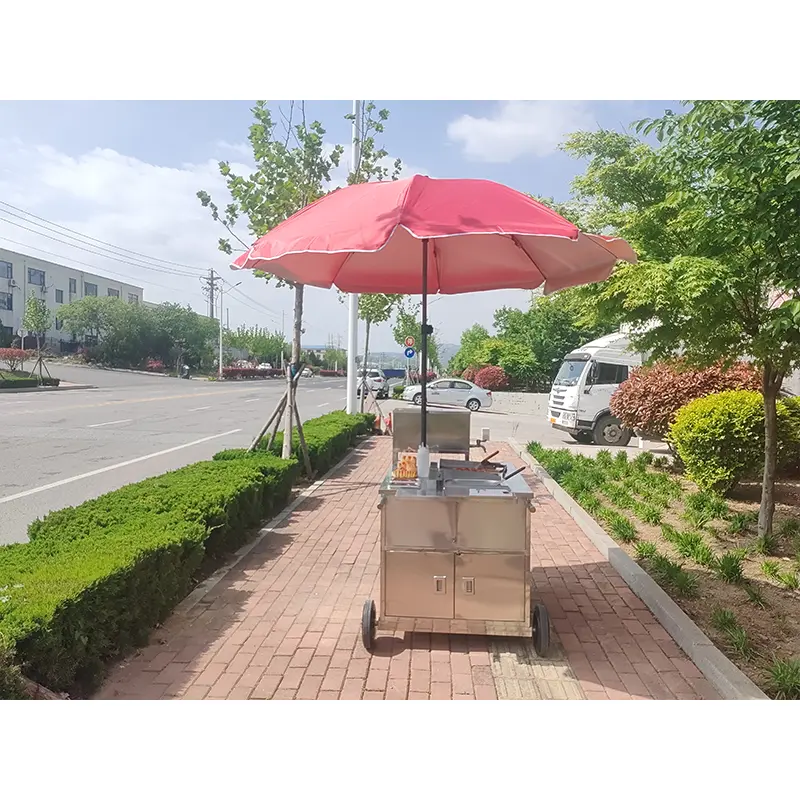

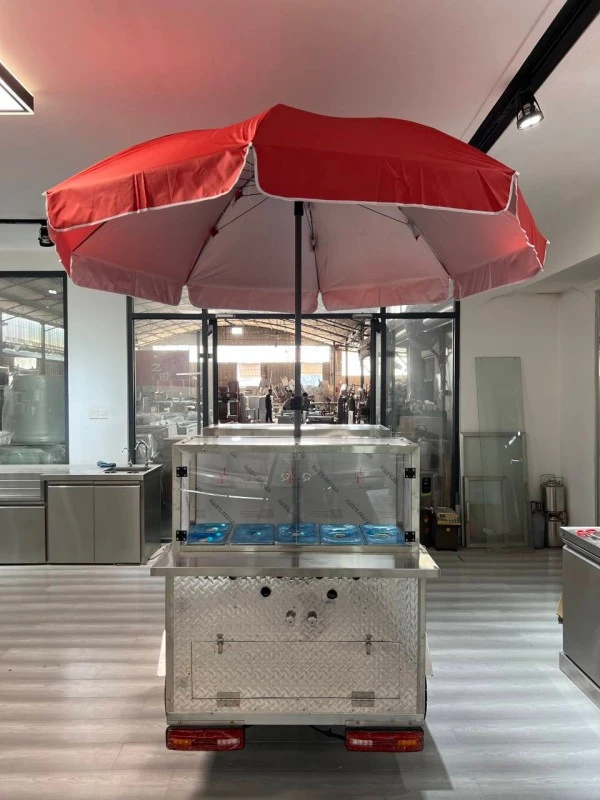

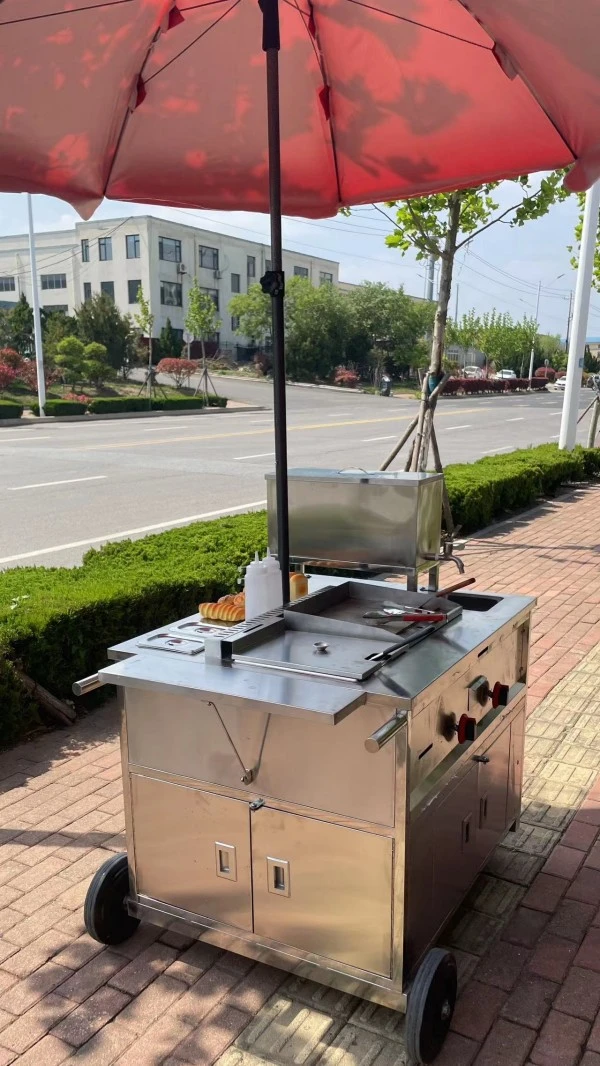

Hot Dog Umbrella Push Cart

Why This Cart Fits Quick-Service Vending

The street hot dog push cartis designed for short-distance hand-pushed vending rather than long-distance transportation. With a reference size of approximately 2,100 × 900 × 2,700 mm and a weight of approximately 100 kg, it can be positioned at sidewalks, markets, parks, stadium exits, beach boardwalks and small private events, subject to local permission.

The layout focuses on quick assembly. Steam pans can keep sausages or other prepared items warm, while the flat-top area can be used for onions, bacon, buns or selected grilled products. GN-style condiment pans and side racks help the operator keep sauces, toppings, tongs and packaging within reach.

The product can be used for hot dogs, hamburgers, seafood snacks, fried food and barbecue-style items. The final cooking equipment should be selected according to the menu and local gas, electrical and food-hygiene requirements.

Reference Parameters

The product file lists motor and bearing as core components, although the cart is primarily hand-pushed. Buyers should confirm the exact wheel, caster, axle and brake configuration in the technical quotation.

Main Functional Zones

Cooking and Warming

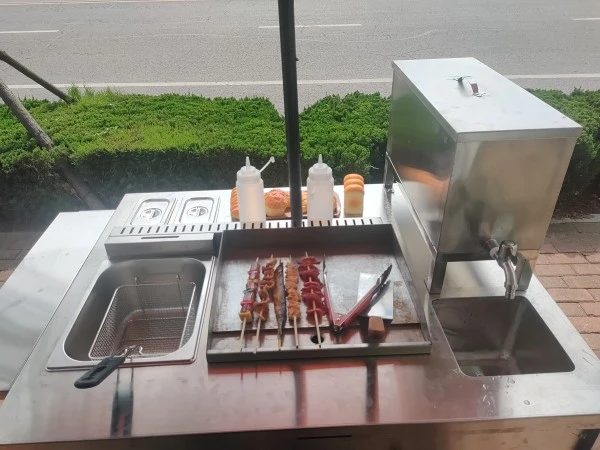

The cooking area can include LPG burners, steam pans and a stainless-steel flat-top surface. The operator may steam sausages, warm buns and grill onions or other toppings in sequence. Cooking capacity depends on pan size, burner output, available workspace and staff speed.

Topping and Assembly

A practical topping station may include compartments for:

● Ketchup

● Mustard

● Relish

● Chopped onions

● Chili

● Cheese

● Pickles

● Disposable trays and wrappers

The assembly area should be separated from raw ingredients and used utensils. Food should be held at temperatures required by local health regulations, and the operator should use a thermometer rather than relying only on visual appearance.

Storage and Sanitation

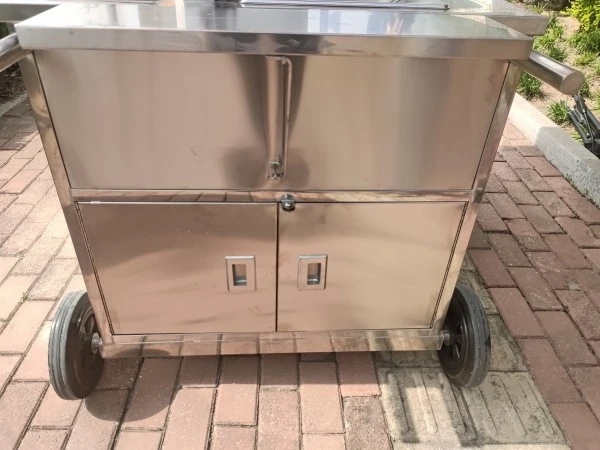

The lower cabinet can store packaging materials, backup ingredients, cleaning supplies and selected equipment. Gas cylinders, if installed, must be secured in an approved location with adequate separation from heat sources. A hand-washing sink can be added where required by the local authority.

Application Scenarios

The push cart can be used in:

● Street-side hot dog sales

● School and university events

● Stadium and sports venues

● Night markets

● Tourist parks

● Beach boardwalks

● Winery and brewery events

● Corporate gatherings

● Small catering operations

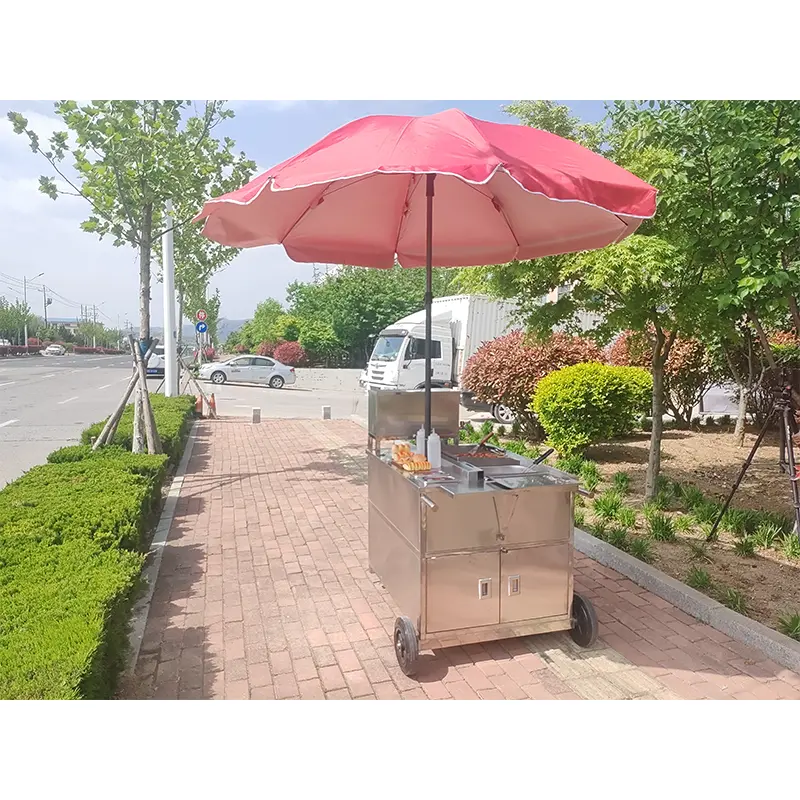

The umbrella provides shade and a recognizable visual marker. It offers some protection from direct sun and light rain but should be closed or secured during strong wind, severe weather or transport.

Recommended Service Procedure

Prepare ingredients → Check burners, steam pans and water supply → Heat products to the required temperature → Assemble with toppings → Package and hand over → Clean the work area between service periods

The cart is suitable for a single operator when the menu is limited. If the menu includes frying, grilling, seafood and several toppings, a second operator may be needed to maintain hygiene and service speed.

Operational Safety

LPG and Heat

If LPG burners are used, the cylinder, regulator, hose and connections should be inspected before every service period. A leak test should be completed with an approved method. Gas cylinders must remain upright and away from direct heat. The operator should keep an appropriate fire extinguisher accessible where required.

Do not operate burners beneath a damaged or unstable umbrella. Maintain clearance between the flame, canopy fabric, packaging and plastic containers. The cooking area should be used in a well-ventilated outdoor environment.

Moving the Cart

Before pushing:

1. Remove or secure hot containers.

2. Close gas valves.

3. Lock cabinet doors.

4. Lower or secure the umbrella.

5. Check wheels, casters and handles.

6. Keep the route free of steps, loose cables and wet surfaces.

The portable hot dog cart should not be overloaded with water, ingredients or cooking equipment beyond its designed capacity. Heavy loads should be distributed low and centrally to reduce tipping risk.

Hygiene and Cleaning

At the end of each shift, clean the steam pans, flat-top surface, condiment containers, sink, handles and cabinet surfaces. Grease should not be allowed to accumulate around burners or under the cooking platform.

Fresh water and wastewater containers must be clearly identified. If the cart is equipped with a sink system, the water tank, pump and drainage hose should be flushed and sanitized according to the operating schedule. Cleaning chemicals should be stored separately from food and packaging.

Stainless steel is resistant to corrosion, but it can still stain or discolor when exposed to salt, strong chemicals or high heat for extended periods. Use a non-abrasive cleaner and dry the surfaces after washing.

Certification and Inspection

The product file lists CE and COC information, as well as a machinery test report and video outgoing inspection. These documents should be verified against the actual final cart and the buyer’s destination requirements.

The buyer should request:

● Final material and equipment list

● Burner and gas-system information

● Wheel and caster specifications

● Sink and water-system details

● Electrical information, if applicable

● Umbrella material and fixing method

● Available CE or COC documentation

● Pre-shipment inspection records

● Warranty scope for core components

A certificate for one component does not automatically confirm permission to operate the complete cart in every city or country.

FAQ

Can the cart sell products other than hot dogs?

Yes. It can be adapted for hamburgers, seafood snacks, fried food, barbecue items and selected fast-food products. Each menu may require different cooking, ventilation, storage and hygiene arrangements.

Is the umbrella suitable for heavy rain?

The umbrella is mainly intended for shade and light weather protection. It should be closed and secured during strong wind or severe weather.

Does the cart require electricity?

The cooking system may use gas, while lighting, refrigeration or pumps may require an external electrical connection. The final quotation should state the power source for every installed component.

Can one person operate the cart?

A simple hot-dog menu can often be managed by one operator. A larger menu with frying, grilling, toppings and payment collection may require additional staff.

How should the cart be transported?

The cart should be secured in a suitable vehicle or transport frame. The umbrella, cooking equipment, gas cylinder and loose accessories must be fixed before movement.

Supplier Support and Warranty

The sales agreement should identify the stainless-steel structure, wheel system, cooking equipment, gas components, sink system, umbrella, packaging, inspection process and delivery terms. TUNE can provide online technical guidance, operation instructions, cleaning recommendations and spare-parts support. Warranty conditions should distinguish between the cart body, wheels, burners, bearings and optional appliances.
