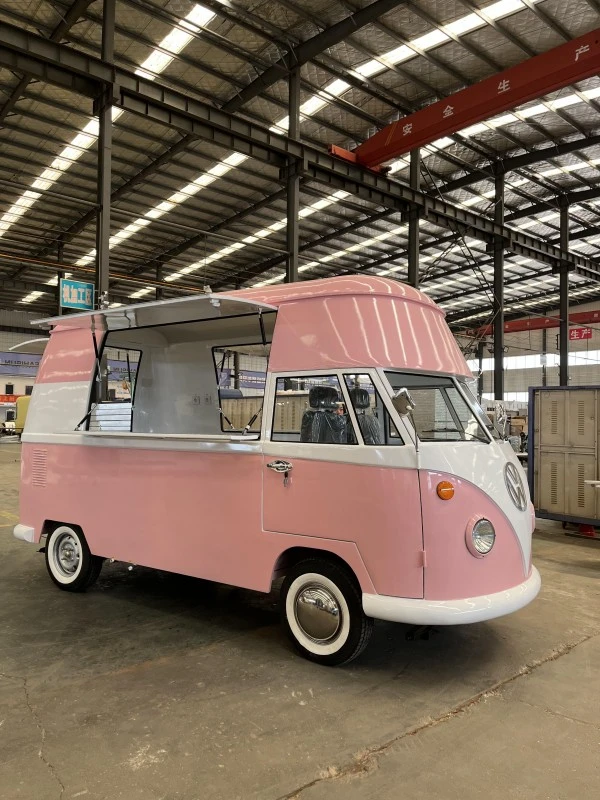

TUNE's VW Classic Bus Style Food Truck is a custom mobile commercial kitchen built for food businesses that need a recognizable storefront and enough working space for continuous service. The retro exterior houses a practical interior with parallel work counters, storage cabinets, cooking stations, and customer-facing service windows. TUNE manufactures this vintage bus style food truck in its Qingdao factory under ISO 9001 quality management. The vehicle is exported to customers in North America, Europe, Australia, and other markets, with US DOT and EU CE documentation available for the relevant configuration. Buyers looking for a wholesale classic bus food truck or a custom mobile kitchen truck can confirm layout, equipment, and electrical standards directly with TUNE before production.
The standard interior is approximately 5.5 meters long, providing more working space than compact vending vehicles. Depending on the final equipment layout, three to four operators can work in different areas such as preparation, cooking, order collection, and payment. The actual operating capacity depends on the menu, appliance size, and staff workflow.
TUNE manufactures this classic bus style food truck under ISO 9001 quality management. US DOT and EU CE documents can be provided for the completed vehicle and selected electrical system, based on the final configuration and destination market. Third-party inspection by SGS or Intertek can be arranged before shipment. Each vehicle passes through a documented inspection process covering the chassis, body, service windows, water system, and electrical circuits.
The VW Classic Bus Style Food Truck is developed for food businesses that need a recognizable mobile storefront with enough working space for continuous service. Behind the retro exterior, the vehicle uses a practical commercial layout with parallel work counters, storage cabinets, cooking stations, and customer-facing service windows.
The standard interior is approximately 5.5 meters long, providing more working space than compact vending vehicles. Depending on the final equipment layout, three to four operators can work in different areas such as preparation, cooking, order collection, and payment. The actual operating capacity depends on the menu, appliance size, and staff workflow.

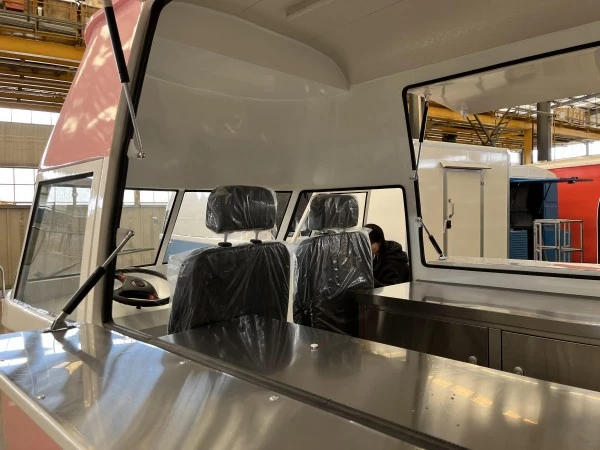

The interior is arranged around a wide central passage. One side can be used for high-temperature cooking equipment, while the opposite side is suitable for preparation, refrigeration, order assembly, and POS service. This division helps reduce unnecessary crossing between raw-material preparation and finished-food handling.

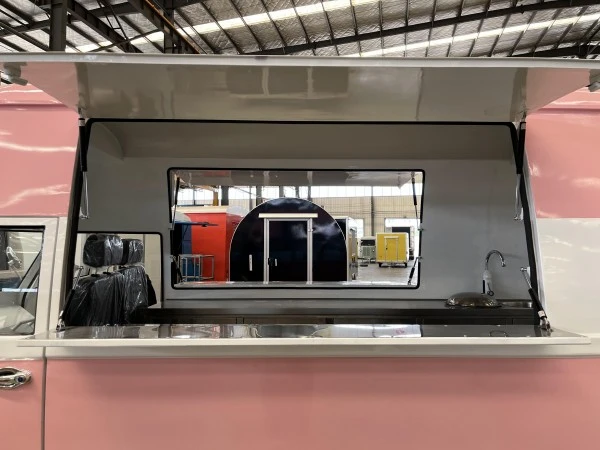

Large hydraulic service windows are installed on both sides of the body. One window can be used for ordering and the other for order collection, depending on the operating plan. The raised hatches also provide a degree of weather protection and improve communication between staff and customers.

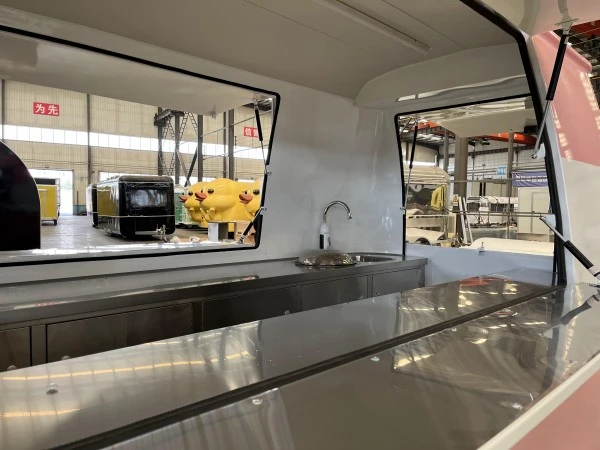

The main food preparation counters and storage areas use 304 stainless steel. This material is commonly selected for commercial food-contact environments because it is smooth, cleanable, and less prone to corrosion than ordinary steel when maintained correctly.

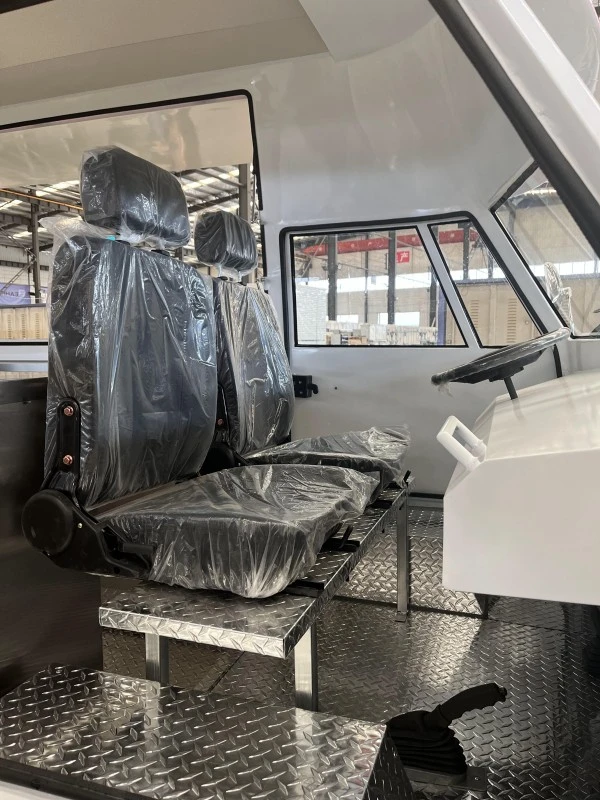

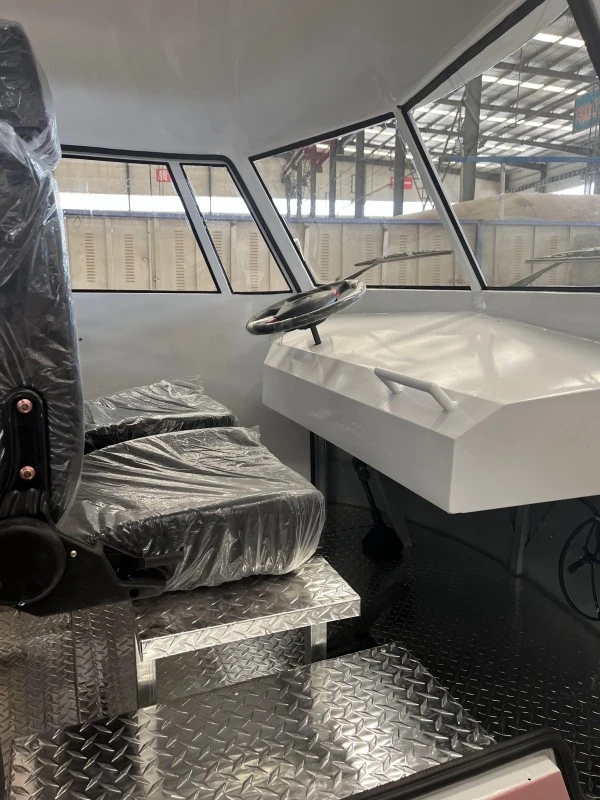

The aluminum diamond-tread floor includes a central stainless steel drain. Staff can remove food residue and grease using an appropriate cleaning method. The floor should still be cleaned at the end of each working day, especially around fryers, griddles, and waste collection points.
|
Category |
Reference Specification |
|
Product Model |
VWT-TN55 |
|
Custom Size |
5,800 × 1,930 × 2,350 mm |
|
Unladen Weight |
Approximately 1,200–1,500 kg |
|
Chassis |
Galvanized anti-corrosion tubular steel chassis |
|
Body Material |
Stainless steel body panels |
|
Axle Options |
Double or triple heavy-duty axles |
|
Tires |
165R13 commercial radial tires |
|
Drive System |
72V DC electric drivetrain |
|
Motor Rating |
4.5 kW |
|
Battery |
6 × 12V 100Ah deep-cycle AGM batteries |
|
Shore Power |
110V / 220V / 240V / 380V |
|
Water System |
Double sinks, pump, instant hot-water tap and tanks |
|
Lighting |
Interior LED and exterior lighting |
|
Certifications |
US DOT and EU CE stated for the relevant configuration |
The final gross weight, axle rating, brake system, electrical sockets, and kitchen equipment load must be confirmed in the approved production drawing. Heavy appliances may affect the axle selection and total payload.
The mobile kitchen can be adapted for menus such as burgers, hot dogs, fried food, crepes, waffles, desserts, coffee, and cold beverages. Typical options include:
● Double electric or gas fryer
● Flat-top griddle
● Flame broiler
● Under-counter refrigerator
● Upright freezer
● Ice bin
● Food warming cabinet
● Beverage dispenser
● Double sink and hand-washing sink
● Exhaust hood and extraction fan
● POS counter and condiment storage
High-power equipment normally requires an external electrical connection or a properly specified gas system. The appliance list should be completed before production so that the electrical circuits, ventilation, and counter positions can be designed correctly.
TUNE's production sequence is organized as follows:
Layout confirmation → CNC panel cutting → Chassis welding → Anti-corrosion treatment → Body assembly → Stainless-steel installation → Electrical and plumbing wiring → Leakage and insulation tests → Final inspection → Export packing
The inspection process covers body alignment, weld appearance, service-window movement, door locks, floor drainage, water connections, electrical protection, lighting, appliance installation, and chassis components. Buyers may arrange a pre-shipment inspection through SGS, Intertek, or live video verification when required.
The stated factory information includes a production facility of approximately 4,500 square meters and manufacturing experience in food trucks, food trailers, mobile kitchens, and restroom trailers. These company details should be supported by current commercial documents when used for formal tendering or compliance submissions.
The food truck is suitable for:
● Music festivals and outdoor concerts
● QSR brand extensions
● Seasonal food markets
● University and sports events
● Shopping-center promotions
● Private catering
● Coffee, dessert and snack businesses
● Multi-unit mobile catering fleets
For a fleet project, using the same body style with different interior layouts can help separate menus while maintaining a consistent brand image.
Before opening for business:
1. Park the vehicle on stable ground and engage the parking system.
2. Open and secure the hydraulic service windows.
3. Connect the correct external power supply or activate the approved battery system.
4. Check the main breaker panel and appliance circuits.
5. Fill the clean-water tank and inspect the wastewater outlet.
6. Test the sink, water pump, hot-water tap, and drainage.
7. Switch on ventilation before using cooking equipment.
8. Confirm that refrigeration has reached the required operating temperature.
9. Keep raw materials, finished products, and waste containers separated.
10. Clean the work surfaces and floor after service.
The 5.5-meter layout can accommodate several operators in separate work zones. Three to four staff members may work simultaneously when the equipment arrangement and menu are planned appropriately.
Yes, the electrical configuration can be prepared for 110V, 220V, 240V, or 380V input. The final voltage, socket type, and phase requirement must match the destination country and installed appliances.
No. Regular checks are needed for tires, brakes, batteries, electrical connections, water pumps, service-window struts, drainage, and kitchen equipment. Maintenance requirements also depend on operating frequency and local road conditions.
The vehicle can be supplied with relevant technical documents for the confirmed configuration, but registration, road approval, health permits, and local inspections remain subject to the laws of the destination market.
TUNE can provide US DOT and EU CE documents for the completed vehicle and selected electrical system, based on the final configuration and destination market. ISO 9001 applies to the manufacturing process. Third-party inspection by SGS or Intertek can be arranged.
Before production, the buyer should confirm the layout drawing, equipment list, body color, electrical standard, water capacity, axle configuration, delivery terms, and inspection method. TUNE provides operation guidance, electrical and water-system support, spare-parts assistance, and remote technical communication. The stated standard warranty is 12 months for manufacturing defects, while optional equipment may have separate supplier terms.
For a quotation, buyers should provide the operating country, city, menu, preferred appliances, required vehicle length, quantity, and expected delivery schedule.

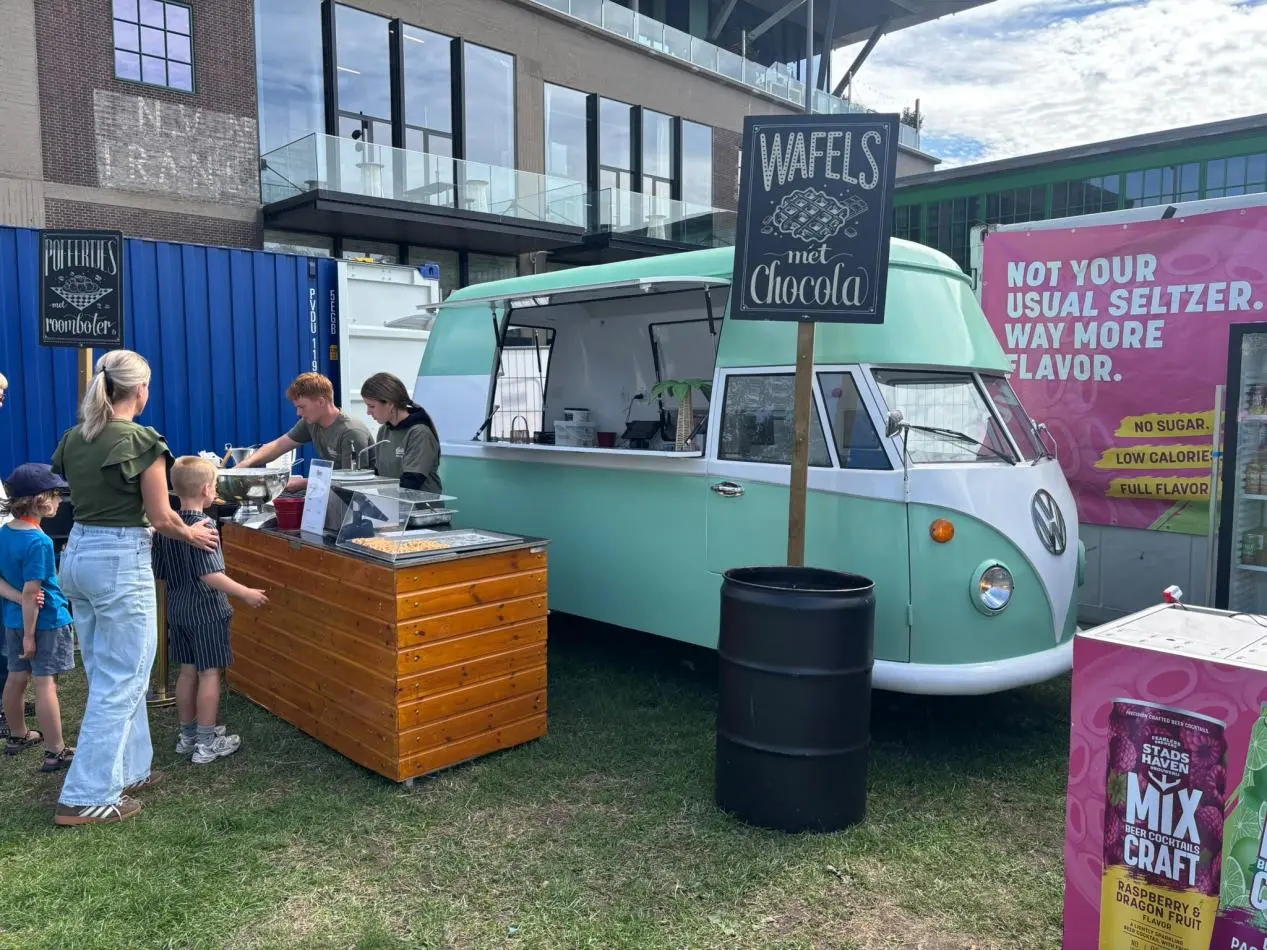

· Product Model: Classic Bus Style Food Truck (Vintage VW T1 Aesthetic Series)
· Location: City Event & Street Food Festival, The Netherlands (Europe)
· Primary Menu: Traditional Dutch Poffertjes (Mini Pancakes) & Gourmet Chocolate Waffles
· Exterior Finish: Two-Tone Mint Green & Off-White Premium Automotive Paint
Operating mobile catering units in European urban events requires strict adherence to space footprints, electrical safety, and local event aesthetics:
Many historical cities and food festival organizers in the Netherlands and Western Europe enforce strict visual guidelines for food trucks. The authentic retro bus design, combined with clean two-tone mint green bodywork, naturally complies with event venue rules without requiring heavy temporary decorations.
Preparing fresh Poffertjes and waffles requires simultaneous operation of multiple high-wattage electric baking plates. The vehicle's pre-wired European standard (230V) distribution panel and heavy-duty 304 stainless steel prep counters ensure safe, heat-resistant operation throughout multi-day events.
During peak festival hours, throughput speed is critical. The wide hydraulic side hatch combined with a matching external wooden serving counter allows staff to separate the hot griddle cooking zone from the customer payment and pickup area, maintaining a clean and continuous serving flow.
Rating: 5.0 out of 5.0 Stars
Operating Partner: Artisanal Dessert Caterer
Region: Netherlands, Europe
"We ordered the Classic Bus Style Food Truck to service summer food festivals and weekend markets across the Netherlands. Our main requirement was a vehicle that combined classic retro charm with a functional, modern commercial interior.
The shipment arrived at the European port in excellent condition, with all body panels, window hydraulics, and internal wiring fully intact. The mint green and white paint job is smooth, durable, and handles outdoor weather exposure well.
From an operational perspective, the internal stainless steel countertops easily handle our heavy commercial Poffertjes griddles and waffle irons. The pre-installed sockets have proven reliable under steady electrical loads during full-day festival shifts.
The wide side hatch opens smoothly on gas struts, providing ample headroom and shade for staff. We also appreciate how easy it is to set up an auxiliary wooden counter out front to handle customer queueing during peak afternoon crowds. It is a well-built, compliant, and practical mobile catering unit for European street trading."
