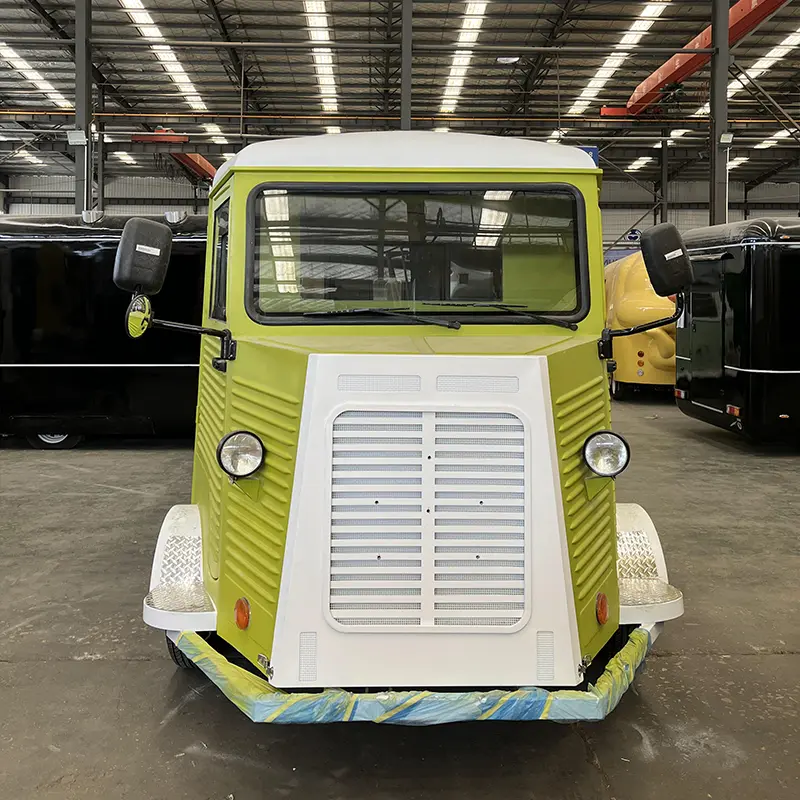

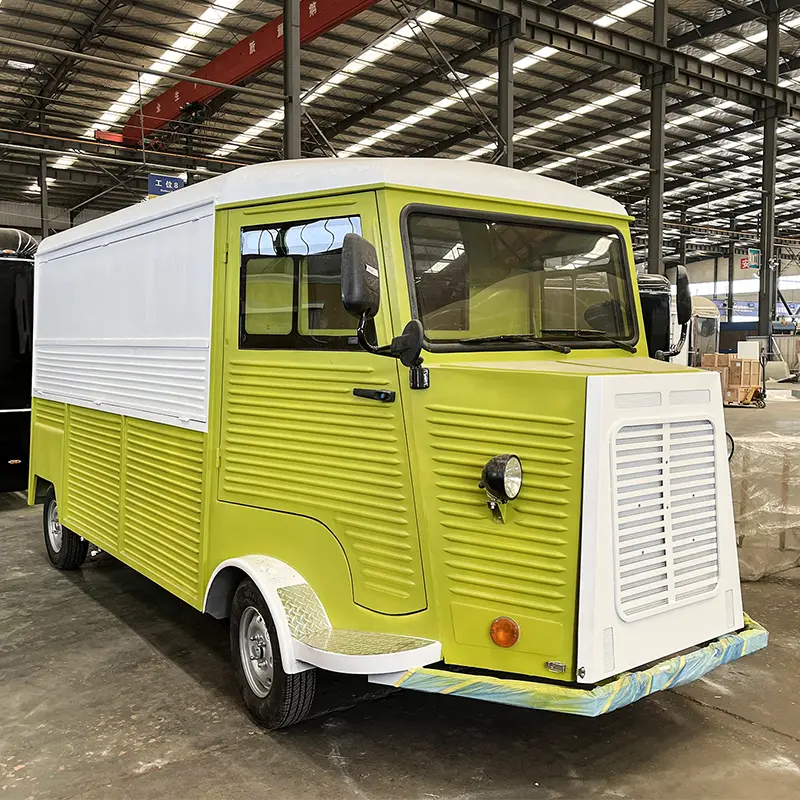

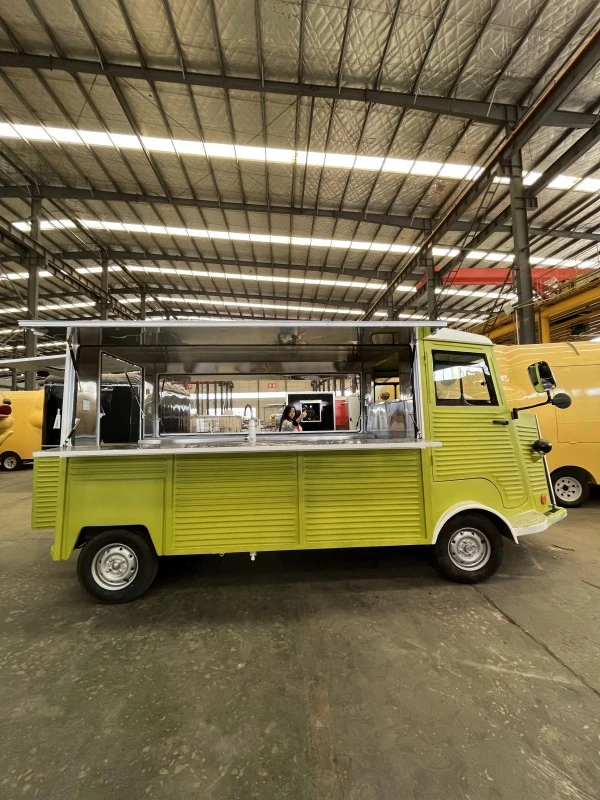

Antique Style Commercial Catering Van

TUNE's antique style commercial catering van is a retro-styled mobile kitchen for food businesses that care about brand presentation and kitchen productivity. The 4.8-meter body places cooking, preparation, storage, payment, and sanitation into separate working zones. The reference internal working area is approximately 3,600 × 1,800 × 1,950 mm, offering nearly two meters of standing height. TUNE manufactures this vintage catering van in its Qingdao factory under ISO 9001 quality management. The vehicle is exported to customers in North America, Europe, Australia, and other markets, with US DOT and EU CE documentation available for the relevant configuration. Wholesale and custom orders can be discussed directly with TUNE before production.

Certification & Documentation

The antique style commercial catering van is produced under TUNE's ISO 9001 quality management system. Depending on the destination market, CE and DOT certification can be supplied for the completed vehicle and its electrical system. Independent inspection by SGS or Intertek is available on request. Each unit undergoes a documented inspection covering the galvanized chassis, fiberglass and corrugated body, 304 stainless-steel interior, water system, and electrical circuits. Buyers should confirm that all certificates correspond to the final configuration, voltage, and destination country.

Product Overview and Design Intent

The Antique Style Commercial Catering Van is intended for businesses that care about both brand presentation and kitchen productivity. Instead of treating the vehicle only as a decorative display, the layout places cooking, preparation, storage, payment, and sanitation into separate working zones.

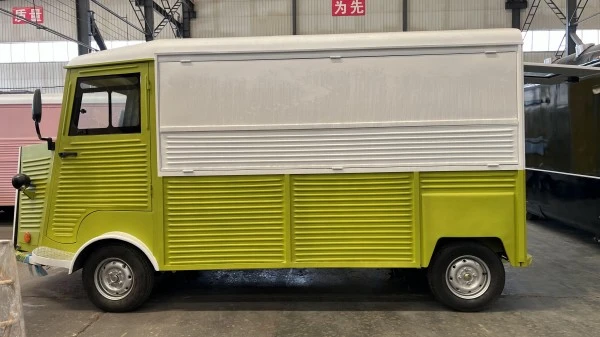

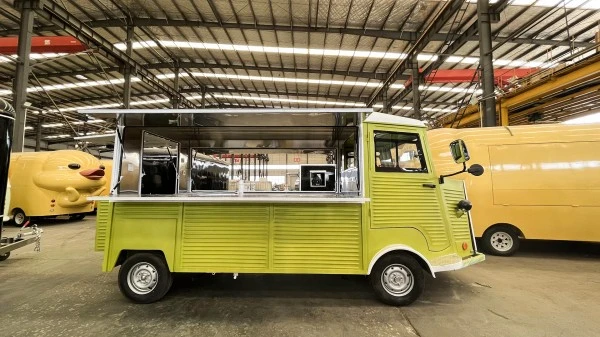

The 4.8-meter body provides a practical balance between mobility and interior capacity. The reference internal working area is approximately 3,600 × 1,800 × 1,950 mm. The nearly two-meter standing height may be more comfortable for long shifts than a low-ceiling compact trailer, although the final usable height can vary around lighting, exhaust systems, and ceiling equipment.

Technical Data

The payload, axle rating, and maximum permitted road weight must be checked against the final equipment list. A coffee machine, fryer, refrigerator, battery bank, and water can add considerable weight to the vehicle.

Interior Zoning

Cooking Zone

The driver-side work line can accommodate appliances such as a flat-top griddle, double fryer, charbroiler, or other thermal equipment. An exhaust hood with oil-collection baffles can be positioned above heat-producing appliances. The hood size and extraction capacity should be matched to the final menu and local fire-safety requirements.

Preparation and Service Zone

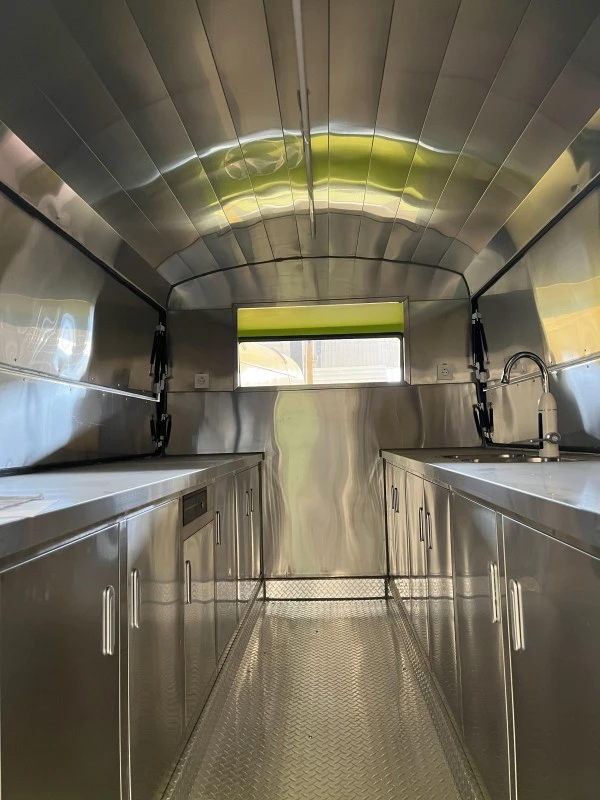

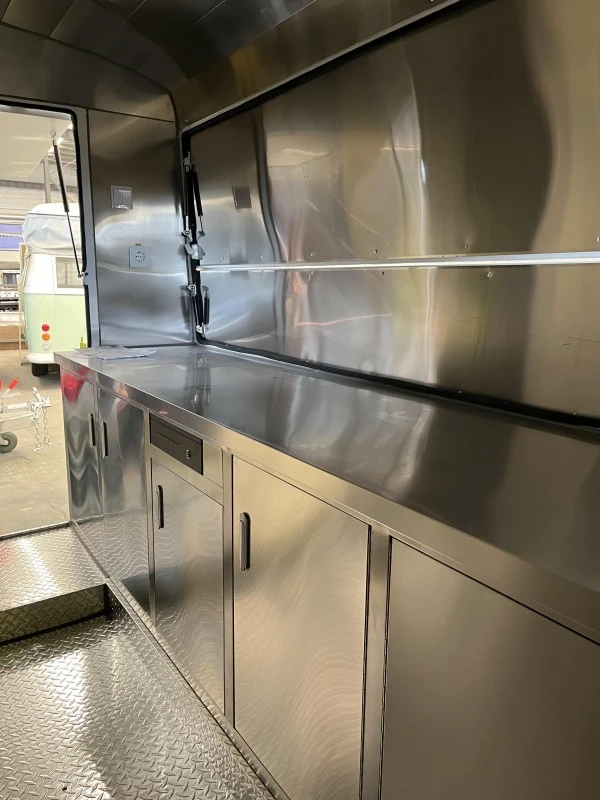

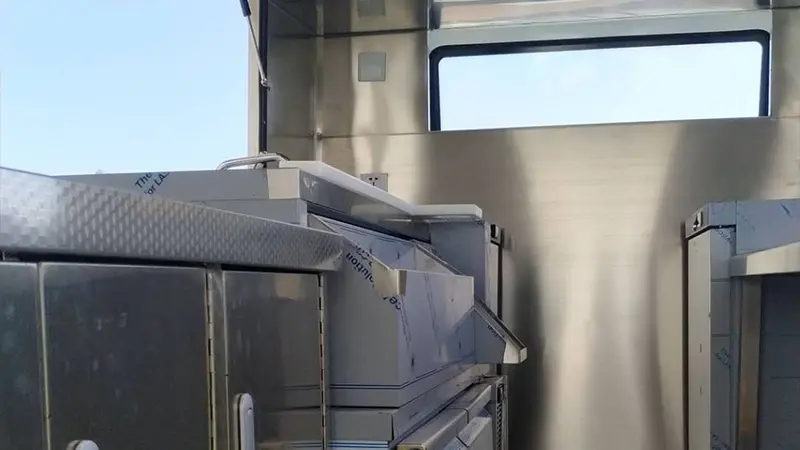

The serving side may include 304 stainless-steel counters, refrigerated drawers, condiment rails, packaging storage, and a POS position. This arrangement is suitable for menus that require a clear sequence from chilled storage to preparation, assembly, and customer handover.

Hygiene Area

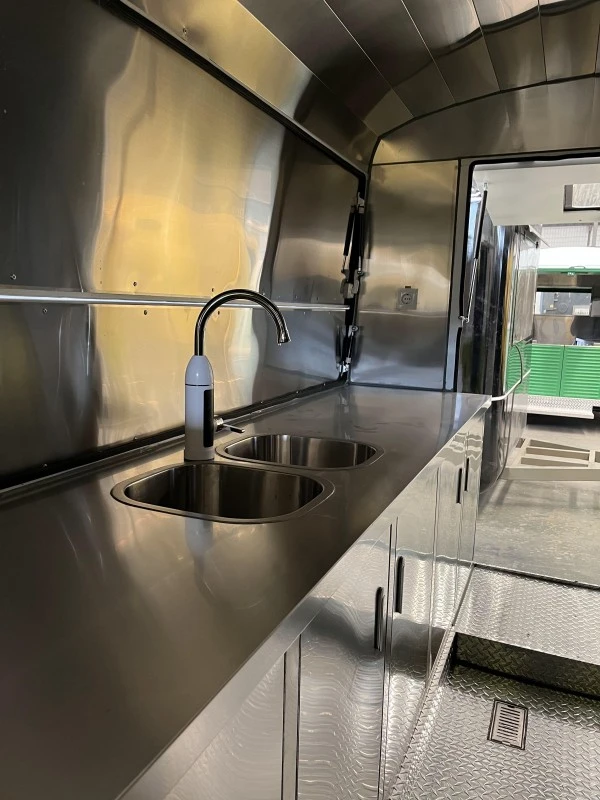

At the rear, the sanitation area can include double sinks, a separate hand-washing sink, an automatic 12V pump, an instant water heater, and separate clean and wastewater tanks. The exact tank volume should be confirmed according to local food-service requirements and expected daily demand.

Manufacturing Flow

The production process can be presented as the following visual flow:

CAD layout approval ↓ CNC laser cutting and frame welding ↓ Exterior fiberglass and corrugated-panel assembly ↓ Automotive paint and surface finishing ↓ 304 stainless-steel interior installation ↓ Electrical and water-system connection ↓ Rain-spray, drainage and circuit-load testing ↓ Pre-delivery inspection, road test and export packing

This sequence gives the buyer several points for confirmation before final delivery. Important inspection records should include the approved layout, equipment list, electrical test, water-pressure test, exterior finish check, chassis inspection, and packing photographs.

Product Strengths for Food Businesses

The vintage body can help create a recognizable visual identity at markets and events, but appearance alone does not determine operating performance. For a mobile kitchen, the more practical factors are the worktop length, storage access, ventilation, power planning, cleaning method, and staff movement.

The aluminum tread-plate floor provides a non-slip surface and allows washdown toward the central drain. Operators should remove grease and food waste before washing, prevent solids from entering the drain, and inspect the drainage hose regularly.

The galvanized chassis is intended to provide additional corrosion protection compared with untreated painted steel. However, road salt, standing water, and coastal air still require routine cleaning and inspection, especially around joints, fasteners, axles, and underbody components.

Menu and Application Examples

This catering van can be configured for:

● Smash burgers and fried chicken

● Tacos and hot sandwiches

● Crepes and waffles

● Specialty coffee and breakfast wraps

● Pastries and desserts

● Street noodles or fusion food

● Ice cream and cold beverages

For coffee-focused operations, counter space and electrical capacity should be reserved for the espresso machine, grinder, refrigeration, and water filtration. For fried-food menus, the priorities are fryer placement, exhaust, grease handling, fire protection, and external power.

Use and Maintenance Notes

Before service, the operator should confirm that:

● The vehicle is securely parked.

● The service hatches are fully supported and locked open.

● The correct electrical voltage is connected.

● The breaker panel shows no abnormal warning.

● The clean-water tank has sufficient water.

● The wastewater tank has enough remaining capacity.

● The exhaust system is operating before cooking.

● Refrigerated products are stored at the required temperature.

● Hand-washing supplies are available.

After service, switch off appliances, close the external power connection, clean all food-contact surfaces, remove grease, empty waste containers, and inspect the floor drain. A maintenance log is recommended for fleet operators and high-frequency businesses.

Frequently Asked Questions

What is the main difference between this van and a standard food trailer?

This model combines a self-propelled commercial vehicle concept with a vintage body style and a fixed kitchen layout. It does not require the same separate towing arrangement as a conventional trailer, although local registration and driving requirements must be confirmed.

Does the van support several power standards?

The stated electrical system supports 110V, 220V, 240V, and 380V input options. The selected configuration must match the destination market and the actual rating of the appliances.

Is the 304 stainless-steel interior suitable for food preparation?

304 stainless steel is commonly used for commercial food-contact surfaces because it is smooth, cleanable, and resistant to many forms of corrosion. Cleaning chemicals and procedures should still follow the equipment supplier's instructions.

How long does production take?

The stated lead time is approximately 25 days for one unit after design approval, around 30 days for two units, and approximately 35 days for three units. Custom equipment and bulk orders may require a separate schedule.

What documents can be provided?

Depending on the order and destination, TUNE may provide layout drawings, equipment lists, wiring diagrams, water-system information, inspection photographs, packing records, and available compliance documents.

Can the water tank capacity be increased?

The reference tanks are 100 L fresh water and 120 L wastewater. Larger tanks may be possible if space and weight distribution allow. The buyer should confirm the required daily water volume and local disposal rules before production.

Commercial Purchase and Support

Before placing an order, the buyer should provide the operating city, menu, equipment list, preferred color, electrical standard, quantity, and target delivery date. The commercial agreement should state the confirmed dimensions, weight, equipment, warranty scope, inspection method, and shipping arrangement.

TUNE provides technical communication for electrical, water, and structural questions, along with support for common spare parts. Any warranty statement should be checked against the final contract, especially when third-party cooking equipment is installed.

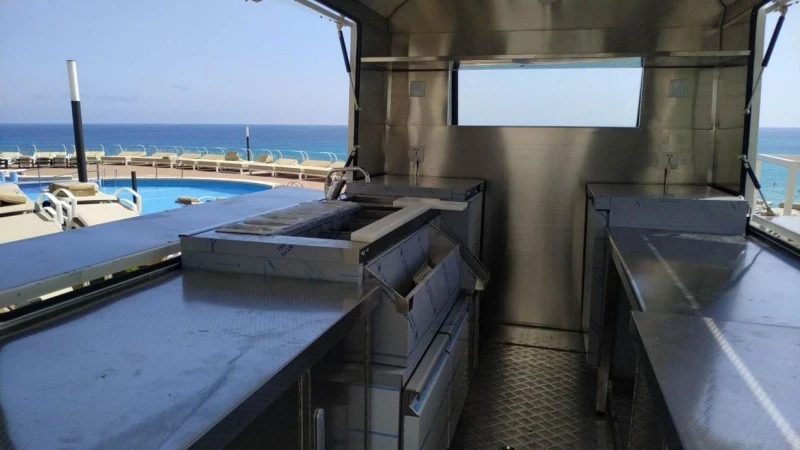

Field Deployment Case: Coastal Resort Lounge (Spain)

Verified Project Profile

• Product: Antique Style Commercial Catering Van (Citroën Type H Retro Design)

• Deployment Location: Beachfront Resort & Poolside Deck, Balearic Coast, Spain

• Operating Environment: High-Humidity / Marine Salt Air Outdoor Environment

• Primary Usage: Outdoor Beverage Prep & Cold Snack Serving Station

Equipment Specifications & Site Alignment

To meet local health regulations in Spain and withstand coastal outdoor conditions, the client selected a fully customized build based on the Antique Style Commercial Catering Van framework:

Verified Client Review

Rating: 5.0 / 5.0 ★★★★★

Verified Buyer: Food & Beverage Operations Department

Property Type: Mediterranean Resort & Lounge, Spain

"We sourced this Antique Style Commercial Catering Van from TUNE to operate as a permanent poolside beverage and light-snack station at our resort property in Spain.

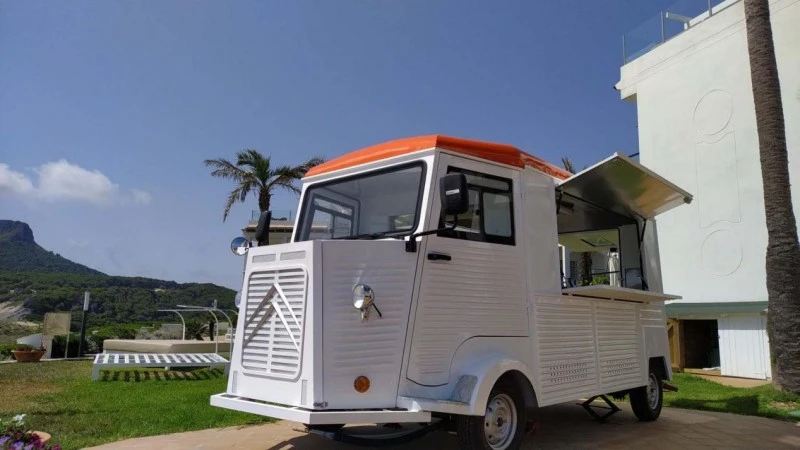

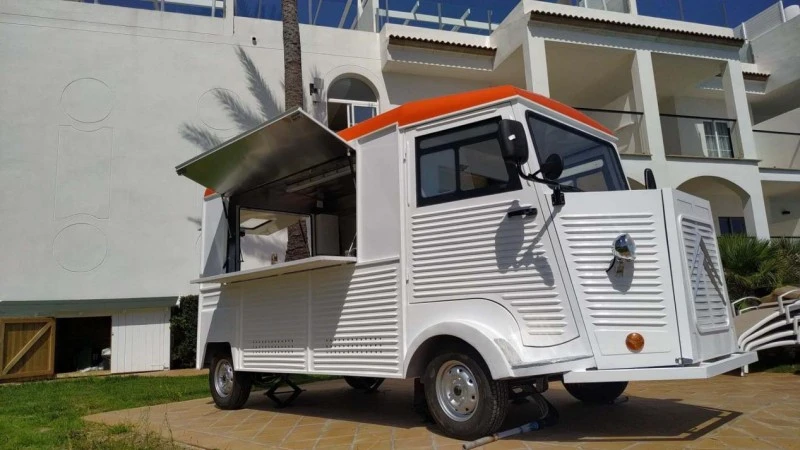

From a technical and shipping perspective, the vehicle arrived via ocean freight exactly as specified in the pre-production 2D/3D layouts. The dual-tone orange and white retro body integrates well with our outdoor pool architecture without requiring extra exterior cladding.

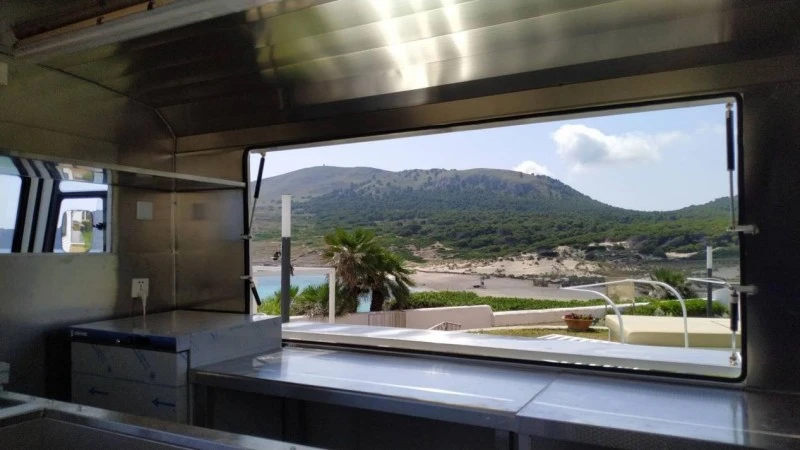

Operationally, the internal workspace is practical for two staff members during peak service hours. The under-counter refrigeration units and insulated prep wells maintain consistent temperature standards during hot Mediterranean afternoons. The gas-strut hatch windows are easy to open and secure at night.

For our maintenance team, the anti-slip aluminum floor and built-in floor drain make end-of-day washdowns quick and sanitary. It is a solid, functional piece of commercial catering equipment that performs reliably in a salty coastal climate."
