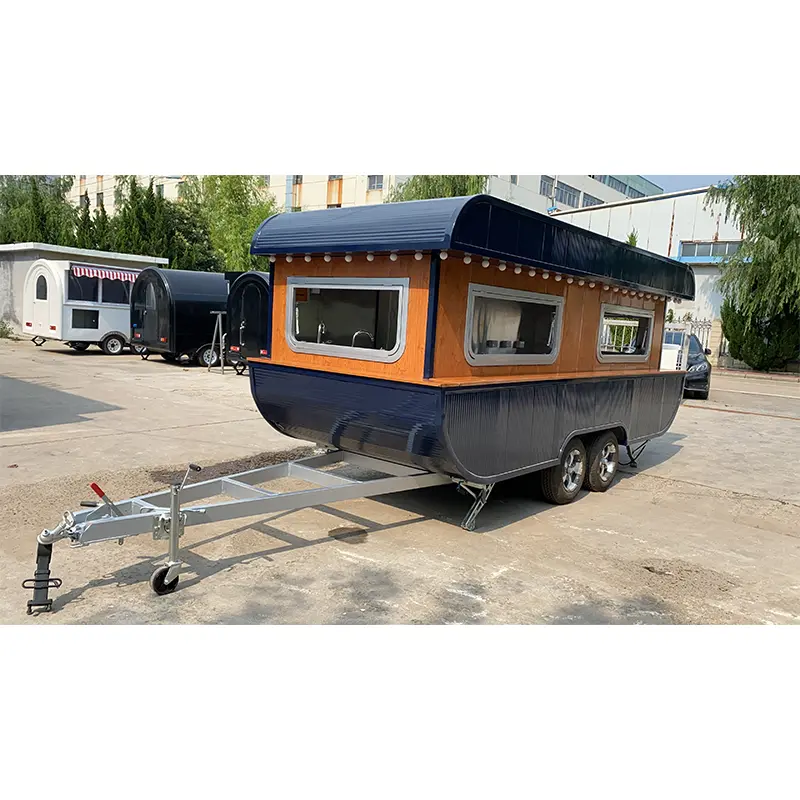

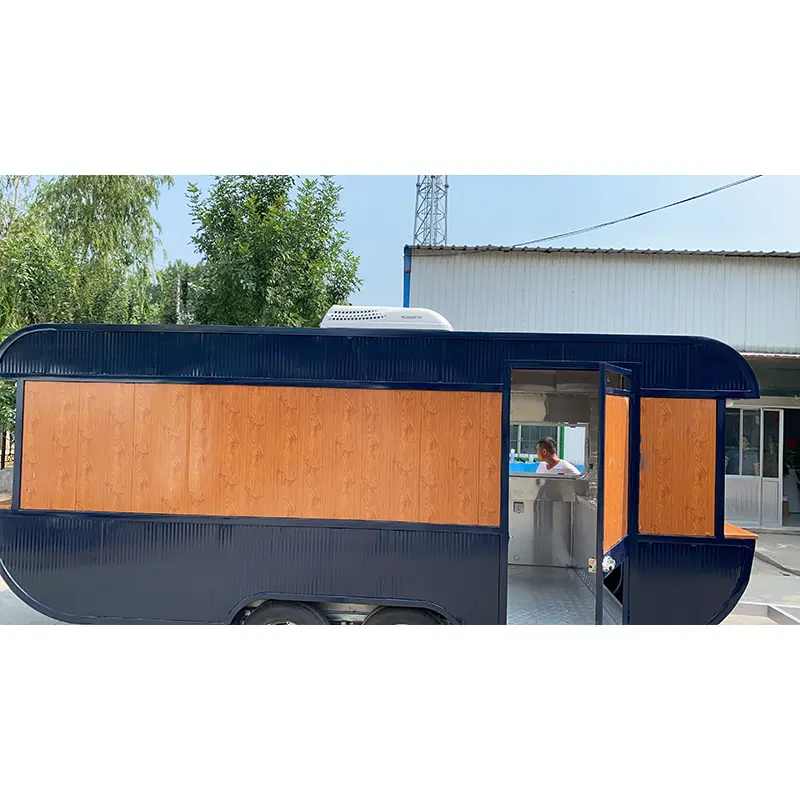

The streamlined body uses a combination of galvanized steel plate, patterned steel plate, and lightweight aluminum-alloy structural components. The design balances visual appeal, towing convenience, and practical interior use. The interior can be configured with stainless-steel counters, sinks, water tanks, refrigeration, cooking equipment, service windows, and branded elements.
A single-, double-, or triple-axle configuration can be considered according to the final body length, total equipment weight, and destination-market towing requirements. The correct axle arrangement should be confirmed before production rather than selected only by appearance.

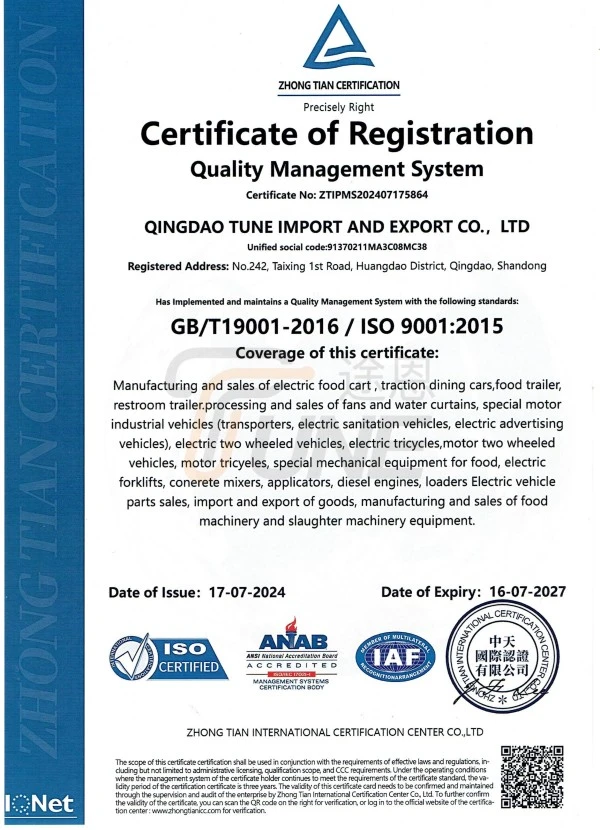

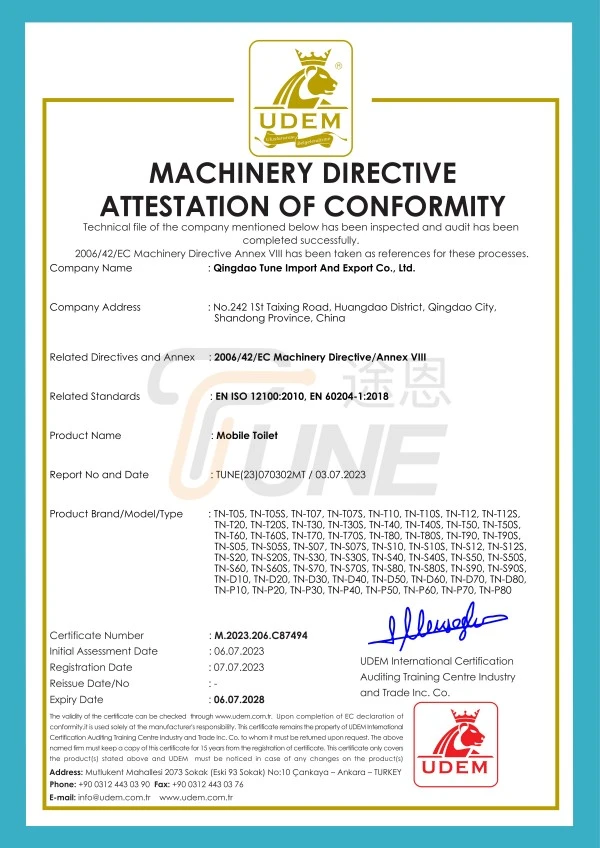

TUNE manufactures this vessel shape food trailer under ISO 9001 quality management. CE, DOT, or other documents can be supplied for the completed trailer and selected electrical system, based on the final configuration and destination market. Third-party inspection by SGS or Intertek can be arranged before shipment. Each trailer passes through a documented inspection process covering the chassis, body, electrical system, water system, and towing components.
|
Item |
Reference Specification |
|
Product Type |
Streamlined Vessel Shape Food Trailer |
|
Reference Dimensions |
4,000 × 2,000 × 2,400 mm |
|
Reference Weight |
Approximately 1,000 kg |
|
Chassis |
Integrated galvanized steel frame |
|
Body Materials |
Galvanized steel plate, patterned steel plate and aluminum-alloy structure |
|
Axle Options |
Single, double or triple axle |
|
Tire Specification |
165R13 tires |
|
Interior Work Surfaces |
Stainless steel, configuration dependent |
|
Water System |
Sinks, water pump, water heater, clean-water tank and wastewater tank |
|
Electrical System |
External power connection, sockets, control cabinet and separate switches |
|
Lighting |
Ceiling LED lights, service-window lighting and tail-light system |
|
Color |
Custom color according to approved color card |
|
Documentation |
DOT, CE or other documents subject to final configuration |
The dimensions and weight may change after the addition of kitchen equipment, refrigeration, tanks, batteries, gas systems, and branding. The final engineering drawing and weight calculation should be used for towing and registration decisions.
This vessel-style food trailer can be adapted for:
● Coffee and cold-drink service
● Ice cream and dessert sales
● Fried snacks and light meals
● Sandwiches and burgers
● Bakery and pastry display
● Beach and resort vending
● Festival and event catering
● Tourism and roadside food points
For a café layout, the interior may prioritize an espresso machine, grinder, under-counter refrigerator, and takeaway counter. For a snack menu, the design may focus on fryers, a griddle, warming equipment, and packaging storage. The available space should be planned around the menu instead of installing equipment without a workflow review.
The water system can include a clean-water tank, wastewater tank, pump, heater, inlet and outlet pipes, divider, and one or more sinks. A separate hand-washing sink may be added when required by local food-service regulations.
The electrical system can include:
● External power inlet
● Main control cabinet
● Individual switches
● Grounded sockets
● Ceiling lights
● Service-window lights
● Tail lamps and marker lights
Power demand depends on the appliance schedule. Coffee machines, refrigeration, water heaters, air conditioning, and cooking equipment may operate on different circuits. The buyer should provide the required voltage, frequency, phase, and total wattage before production.
1. Close and lock all service windows and doors.
2. Switch off cooking, refrigeration, and electrical equipment where required.
3. Secure water tanks, gas cylinders, and loose kitchen items.
4. Check the coupling, safety chains, jockey wheel, and lighting system.
5. Inspect tire pressure, tread, and wheel fasteners.
6. Confirm that the actual loaded weight is within the approved limit.
7. Remove or secure external signs, shelves, and advertising accessories.
1. Park on firm and reasonably level ground.
2. Engage the parking brake and use stabilizing equipment if installed.
3. Connect the correct external power source.
4. Test the pump, water flow, heater, and wastewater drainage.

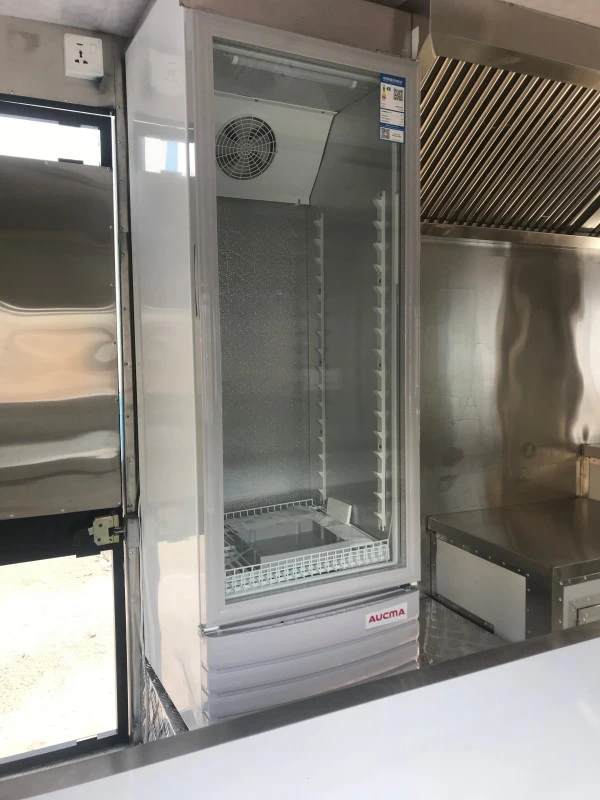

5. Check the refrigeration temperature before loading food.
6. Clean and sanitize all food-contact surfaces.
7. Confirm that the service area is free from trip hazards.
The exterior shell should be washed with non-abrasive materials. Salt, sand, and road dirt should be removed regularly, particularly when the unique shape concession trailer is operated near the coast or transported on salted roads.
No. The curved exterior mainly creates a visual identity, but the internal layout can still include commercial counters, sinks, storage, refrigeration, and cooking equipment. Curved wall sections may reduce the usable area for tall cabinets compared with a square trailer.
The chassis and electrical system can be prepared according to the destination requirements. Local registration, road lighting, coupling, braking, food permits, and electrical inspection should be confirmed by the buyer before purchase.
Yes. Exterior colors, logo stickers, LED advertising light boxes, sliding windows, and service details can be customized after the design is approved.
The axle arrangement should be based on body length, gross vehicle mass, payload, road conditions, and local regulations. A longer trailer or a configuration with heavy cooking equipment may require a dual- or triple-axle solution.

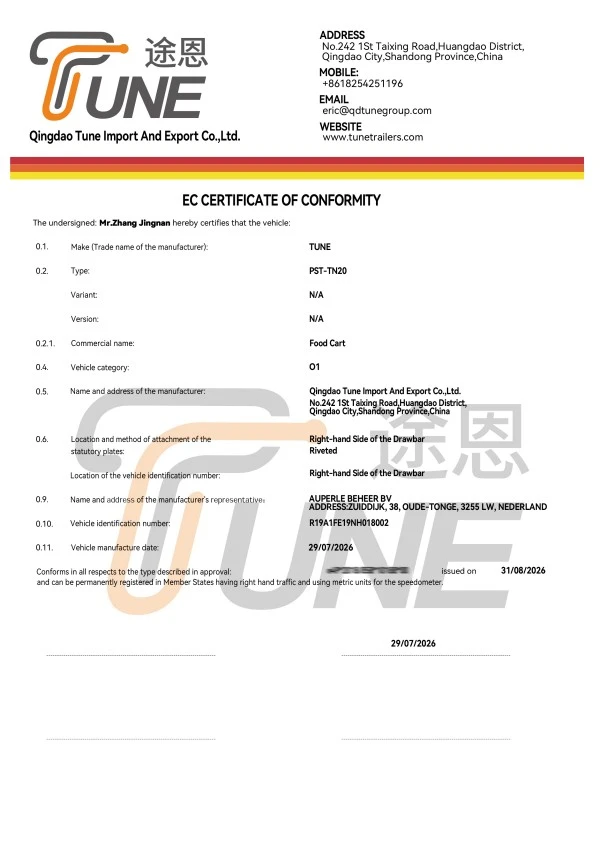

TUNE can provide the final layout drawing, electrical diagram, water-system specification, inspection report, packing list, and available certification documents for the completed trailer. DOT, CE, or other documents depend on the final configuration and destination market.
Menu and layout confirmation
→ Chassis fabrication
→ Protective coating inspection
→ Body and service-window assembly
→ Water and electrical installation
→ Equipment commissioning
→ Final dimension and weight review
The buyer may request photographs, test records, wiring information, water-system details, and a pre-shipment inspection. Any DOT, CE, or VIN-related documentation should correspond to the actual completed trailer and destination-market requirements.
The purchase agreement should specify the final dimensions, axle type, body material, color, equipment list, water system, electrical standard, delivery schedule, inspection procedure, and warranty scope.
TUNE can provide operation instructions, layout drawings, electrical information, water-system guidance, and replacement-parts assistance. Warranty conditions for the chassis, body, electrical components, water system, and optional appliances should be listed separately.

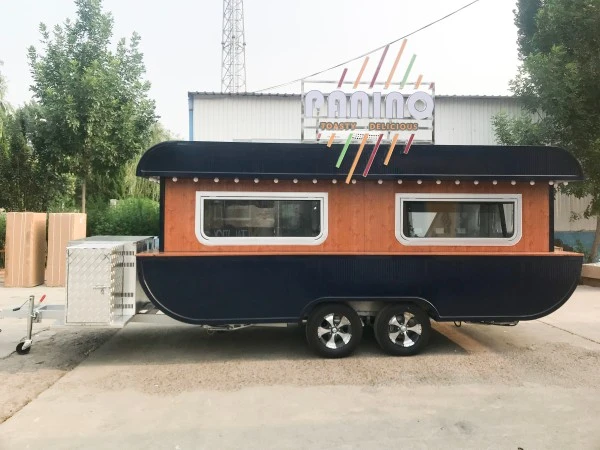

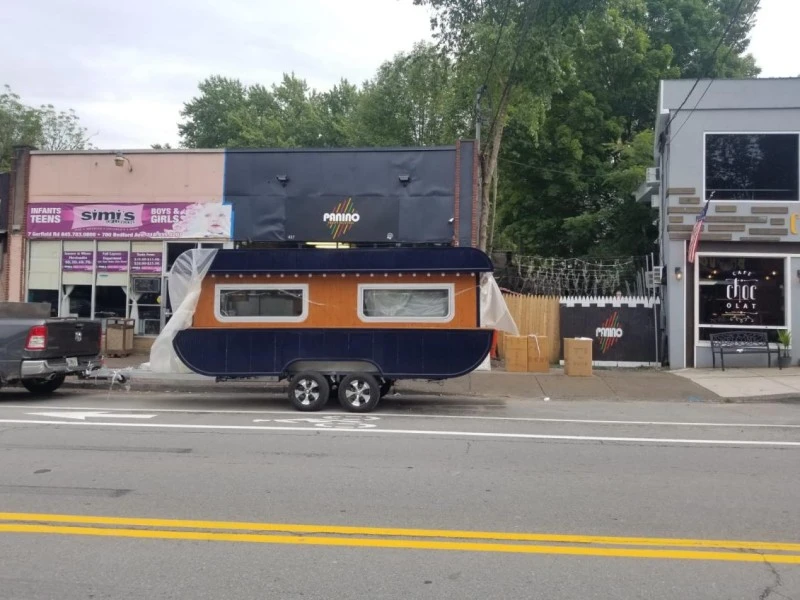

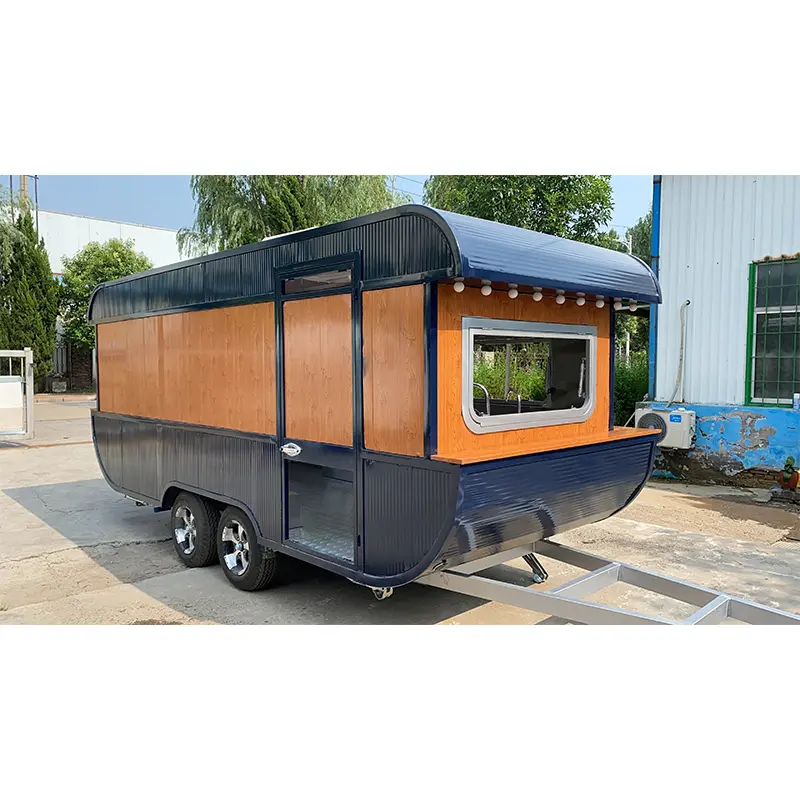

● Vehicle Model: Streamlined Vessel Shape Food Trailer (Retro Nautical Dual-Axle Series)

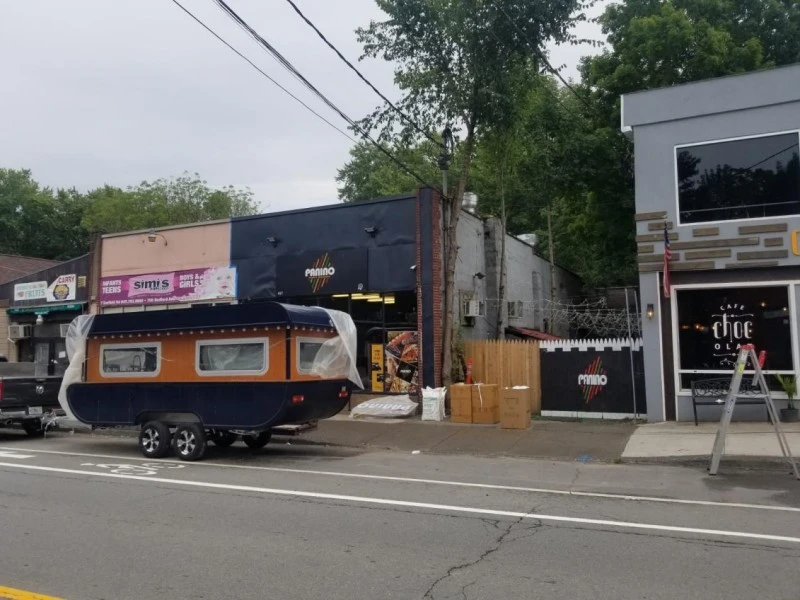

● Delivery & Deployment Location: Commercial Retail Corridor, New York State, United States
● Client Property: Panino Gourmet Toasties & Specialty Sandwich Kitchen

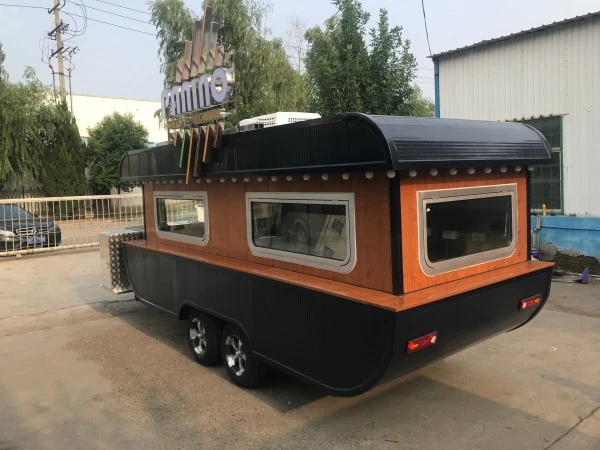

● Exterior Architecture: Midnight Navy Ribbed Steel Trim, Warm Wood-Grain Composite Wall Panels, & Overhead Marquee Warm-Bulb Lighting Perimeter
● Chassis Setup: Heavy-Duty Tandem Axle with Custom Chrome Alloy Wheels & Highway-Rated DOT Suspension
Deploying a custom-built mobile food unit in the United States requires meeting local highway transportation regulations, municipal health codes, and outdoor venue aesthetics.
The dual-axle chassis configuration with independent electric braking and alloy wheels provides low-vibration highway towing behind standard US pickup trucks. The curved “vessel shape” front profile reduces wind resistance during interstate transport from the arrival port to the commercial site.

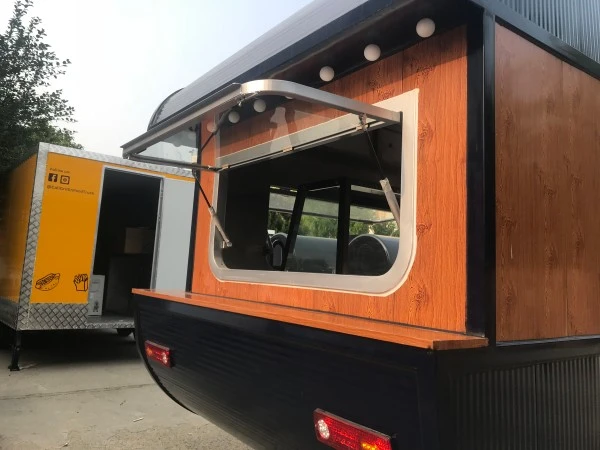

Designed to mirror the aesthetic of a classic diner, the top exterior perimeter features an integrated line of heavy-duty, weather-sealed warm white LED marquee bulbs. This built-in lighting illuminates the wooden side panels and service windows during evening trading without requiring secondary external light poles.
The body utilizes insulated composite wood-pattern walling combined with commercial aluminum-framed sliding glass windows. The structural steel canopy extended over the front overhang shields internal equipment and operators from rain and direct sun exposure.
Verified Buyer: Commercial Franchise Operator
Location: New York, United States
Rating: 5.0 out of 5.0 Stars
"We ordered the Streamlined Vessel Shape Food Trailer from TUNE as an extended outdoor mobile serving station for our brick-and-mortar hot sandwich kitchen in New York.

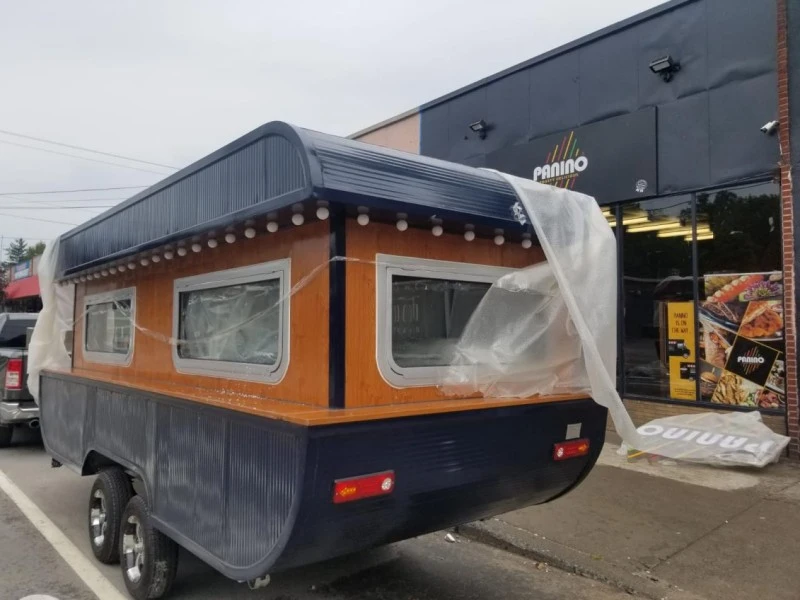

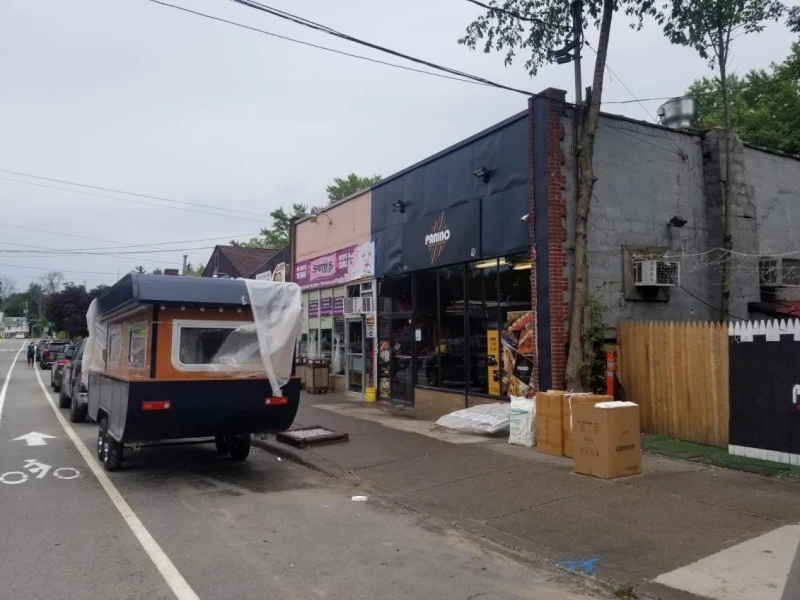

The ocean shipment and domestic flatbed transport went smoothly. The unit arrived directly at our store curb with all protective bubble wrapping around the window frames, roof marquee lights, and painted steel body intact.
Towing the unit behind our Dodge Ram truck was stable, thanks to the balanced dual axles and proper hitch tongue height. The exterior wood-grain finish and navy blue structural trim align perfectly with our shop’s front branding.

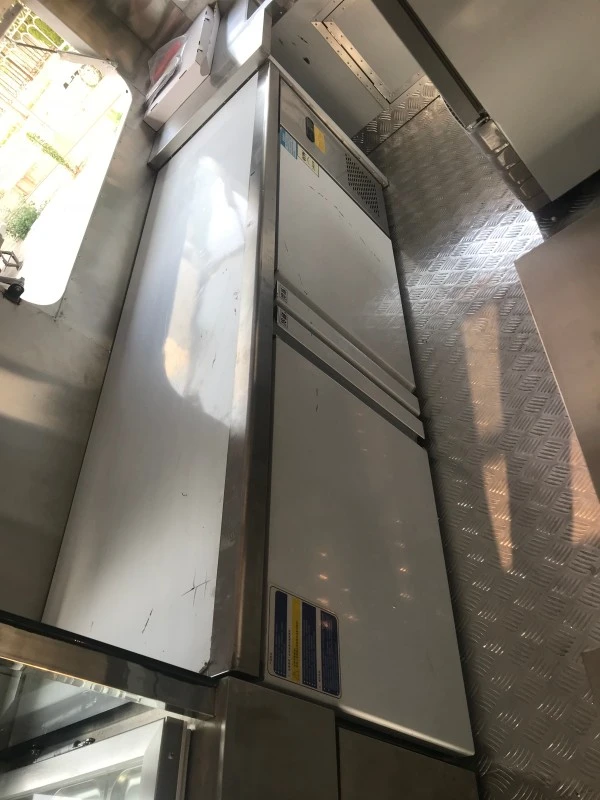

Inside, the stainless steel counter setup, breaker panels, and water plumbing systems match the floor plan drawings we confirmed prior to production. It’s a well-engineered, solid piece of equipment that passed our initial structural and electrical checks upon arrival."
