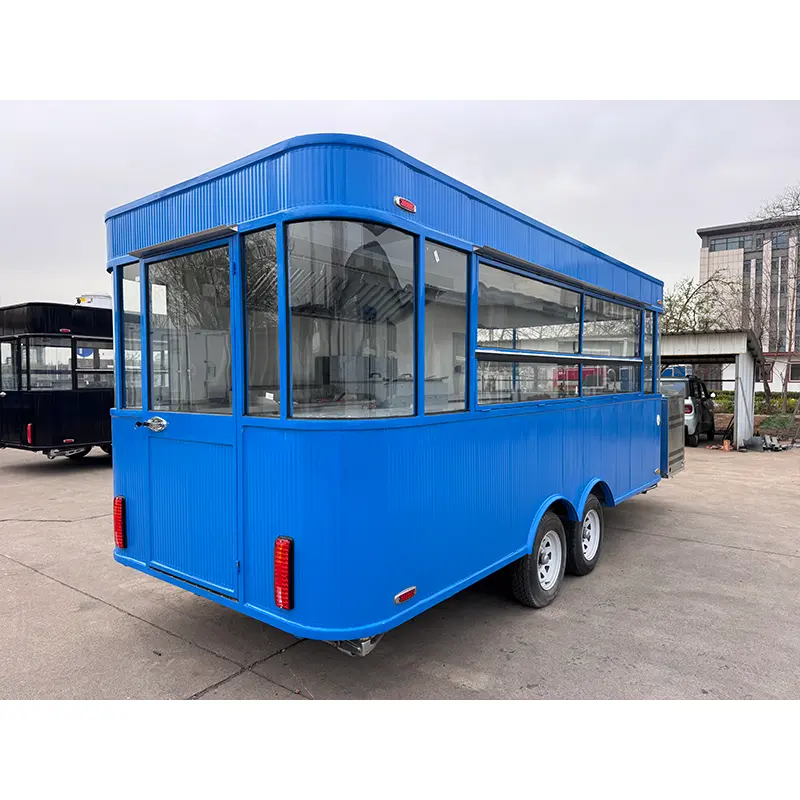

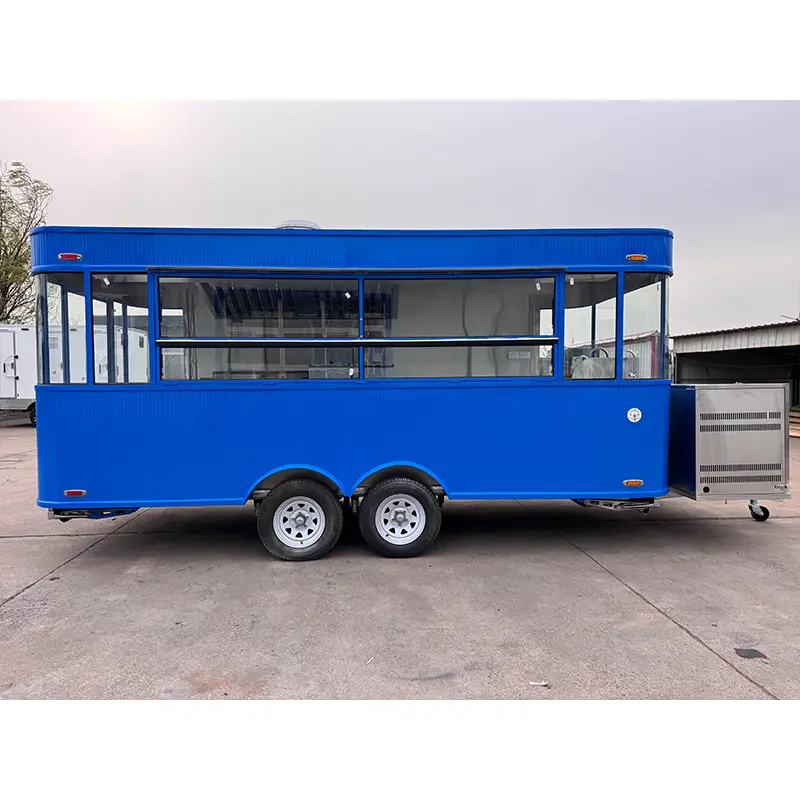

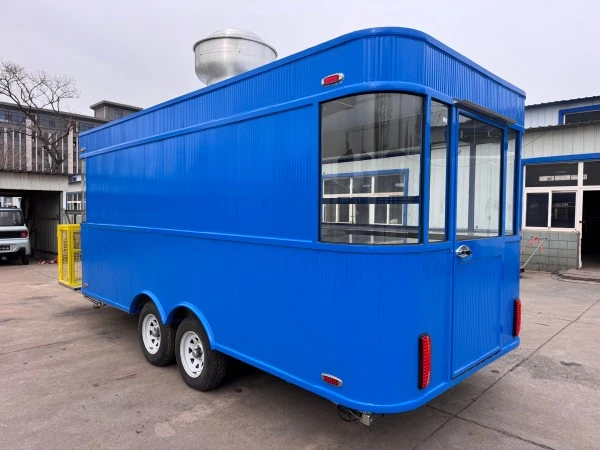

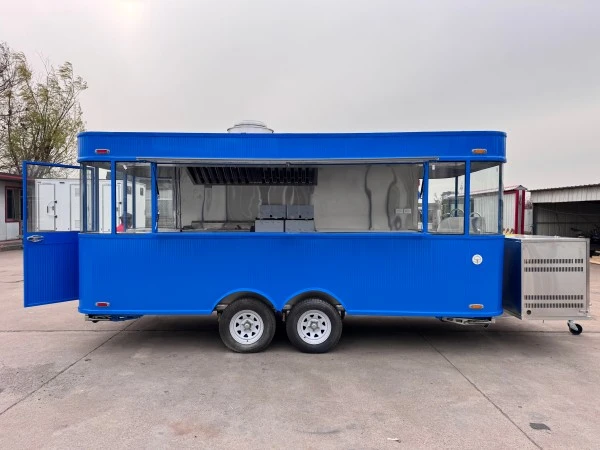

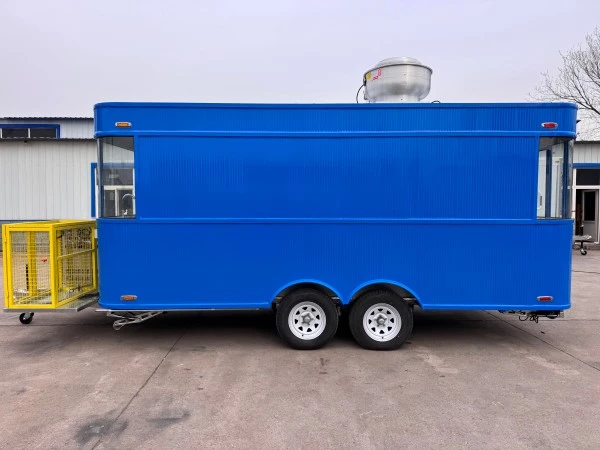

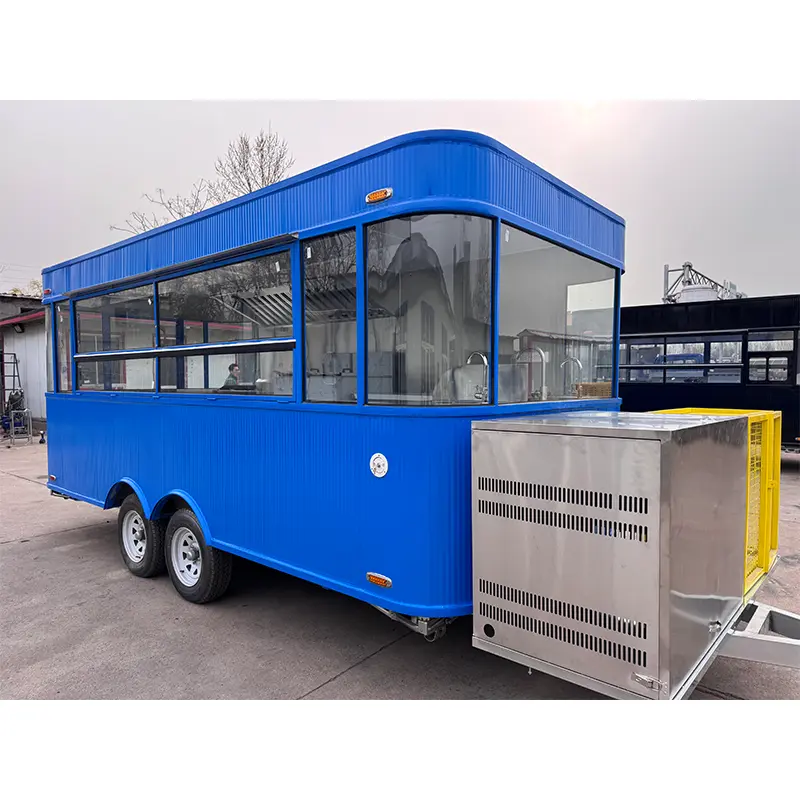

The outdoor Street View Mobile Concession Food Trailer is designed for businesses that rely on product visibility and direct customer interaction. Its large panoramic windows allow customers to see the service counter and product display, while the roof marquee can be used for branding, menu information or business identification.
The reference configuration measures approximately 4,000 × 2,000 × 2,400 mm and weighs approximately 1,000 kg before final equipment and stock are added. The body uses fiberglass material, with a non-slip aluminum floor and customizable internal cooking equipment.
The trailer can be used for ice cream, snacks, burgers, beverages, simple meals and seasonal event vending. The final application should determine whether the interior requires refrigeration, hot-food equipment, a range hood, additional water capacity or a larger electrical system.
|
Item |
Reference Specification |
|
Product Type |
Street View Mobile Concession Food Trailer |
|
Model Reference |
Blue 4-Wheel Series |
|
External Dimensions |
4,000 × 2,000 × 2,400 mm |
|
Reference Weight |
Approximately 1,000 kg |
|
Body Material |
Fiberglass |
|
Chassis |
Dual-axle configuration subject to final design |
|
Interior Equipment |
Custom cooking and vending equipment |
|
Flooring |
Non-slip aluminum flooring |
|
Water System |
Double sinks and pump system |
|
Power Supply |
External power connection |
|
Voltage Options |
110V / 220V / 240V / 380V |
|
Warranty Reference |
1 year, subject to contract |
|
Packaging |
Export wooden case |
|
After-Sales Support |
Online technical support; engineer service subject to agreement |
|
Applications |
Ice cream, snacks, burgers and outdoor vending |
The source specification lists both a dual-axle chassis and a four-wheel model. The final axle arrangement, brake system, coupling, tires, payload and road-lighting configuration must be confirmed in the approved production document.
The wide display windows can help the operator show:
● Ice cream and frozen desserts
● Packaged snacks
● Fresh pastries
● Burger preparation
● Drinks and bottled products
● Branded menus and promotional items
The roof marquee can carry a business name or product category. It should be designed with appropriate wind resistance and secured before towing. Any external display equipment or signage adds weight and may affect the center of gravity.
The street concession trailer is particularly suitable for:
● Ice cream vending
● School and community events
● Food festivals
● Parks and tourist areas
● Shopping-center promotions
● Sports events
● Seasonal roadside sales
● Brand activation projects
A frozen-dessert layout may include a display freezer, under-counter storage, hand-washing sink, clean-water tank, wastewater tank and customer-facing serving shelf. Refrigeration capacity should be selected according to the number of products and expected service duration.
A snack layout may include a griddle, fryer, warming cabinet, preparation counter, exhaust hood and refrigerated storage. Cooking appliances increase electrical, gas, ventilation and fire-safety requirements.
A beverage-focused unit can use an under-counter refrigerator, ice storage, sink, preparation counter and POS station. The layout should leave sufficient access around the water and electrical systems for cleaning and maintenance.
Before moving the mobile street food trailer:
1. Lower and lock the panoramic service hatch.
2. Engage all mechanical latches.

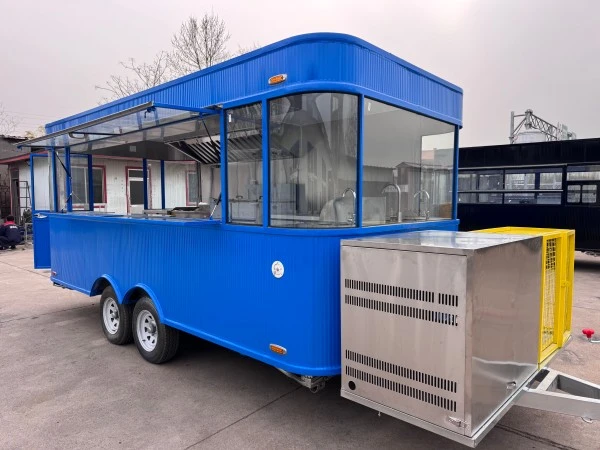

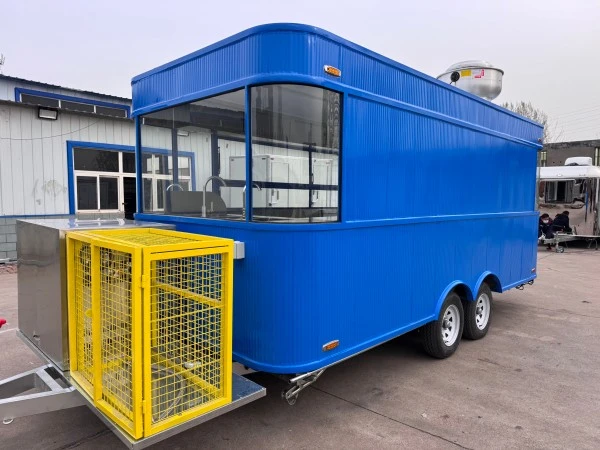

3. Secure external generator housing, utility cages and loose equipment.
4. Check the coupling and safety chains.
5. Inspect road lights, marker lamps and brake connections.
6. Distribute stock evenly across the interior.
7. Check tire condition and pressure.
8. Confirm that the loaded mass remains within the final approved rating.
The trailer supports different voltage options, but only one approved configuration should be used for a specific unit. Before connecting to shore power or a generator:
● Switch off the main breaker.
● Confirm voltage and frequency.
● Check the rated current of the cable and socket.
● Keep connectors away from standing water.
● Avoid running several high-power appliances on one circuit.
● Inspect cables and plugs for heat marks or damage.
A generator should be selected after the equipment schedule is completed. The combined wattage of freezers, heaters, cooking equipment, lighting, pumps and air conditioning determines the required capacity.
The double-sink system should be connected to food-grade hoses. Fresh-water tanks and wastewater tanks must be clearly identified. Before first operation, flush and sanitize the tanks and lines. Wastewater should be emptied at an approved disposal point.
During winter storage, drain the tank, pump, heater and water lines to reduce the risk of frost damage. After long periods without use, the water system should be cleaned before reconnecting it to food-service operations.

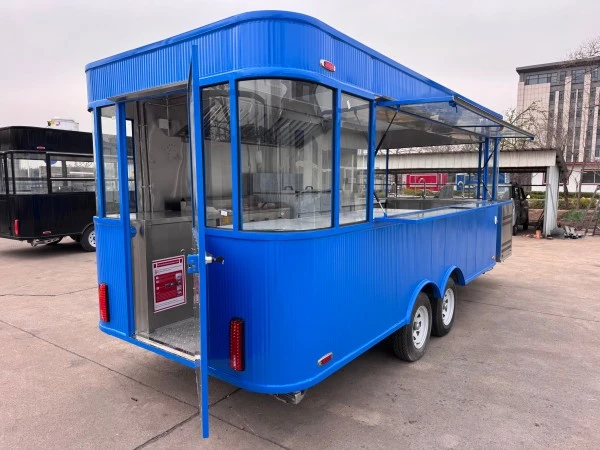

The large service hatch improves visibility, but it also requires careful operation. Before opening:
1. Check the hinge and support mechanism.
2. Remove objects from the hatch surface.
3. Open the panel evenly.
4. Confirm that the supports hold the hatch securely.
5. Keep customers away from the moving area.
Before towing, the hatch must be completely lowered and locked. Rubber seals should be checked for cracking, compression and correct alignment. Weather resistance depends on the condition of the seals, the closure system and the installation quality.
At the end of every shift:
● Wipe stainless-steel counters and service shelves.
● Clean the panoramic glass with a suitable non-abrasive product.
● Remove food residue from the aluminum floor.
● Clean the sink and drainage area.
● Empty wastewater correctly.
● Clean the range hood and filters if cooking equipment is installed.
● Check that no grease or water has entered the electrical cabinet.
The fiberglass body should not be cleaned with aggressive solvents unless they are confirmed to be compatible with the finish.
The buyer should request and review:
● Final chassis and axle information
● Brake and coupling details
● Electrical wiring diagram
● Water-system layout
● Appliance list
● Final vehicle weight
● Road-lighting configuration
● Packing and shipping details
● Warranty and after-sales terms
● Any available inspection or test records
The source file states that a video outgoing inspection can be provided, while a machinery test report is not available in the standard information. This should be reflected accurately in the quotation. Any additional inspection should be agreed before shipment.
Yes. It can be configured as an ice-cream vending unit, but refrigeration, power, display layout and local food permits should be reviewed for the intended products.
The standard information describes an external power connection. A generator, if required, should be listed separately with its rated output, fuel type, installation position and ventilation requirements.
Possible changes depend on the available space, electrical capacity, ventilation, floor loading and fire-safety requirements. It is safer to approve the final equipment plan before production.
Close the hatch completely, engage all locks, inspect the rubber seals and remove unsecured signs or display accessories. A protective transit frame may be added when specified in the packing plan.
The purchase contract should clearly state the final dimensions, axle arrangement, body material, window system, electrical voltage, water equipment, kitchen appliances, inspection procedure, delivery packaging and warranty period.
TUNE can provide online technical support, operation instructions, maintenance recommendations, wiring information and spare-parts communication. Overseas engineer service may be available subject to location, travel arrangements and a separate agreement.
The mobile vending trailer is a practical option for operators who need strong product visibility, flexible customization and a compact format for seasonal or event-based vending. Its final performance will depend on the selected equipment, local operating permits, towing conditions and daily maintenance procedures.

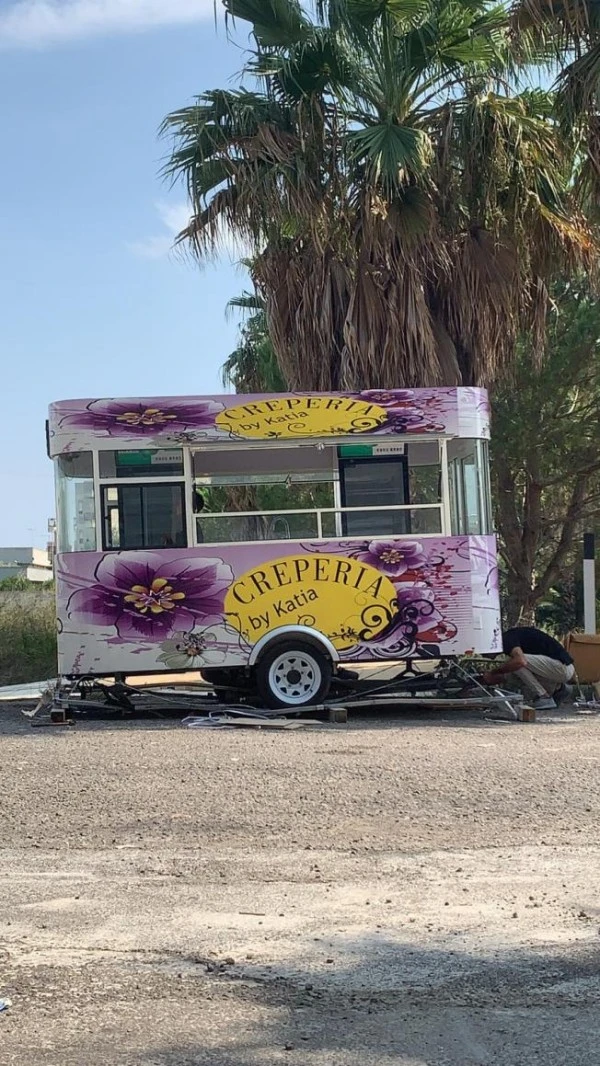

● Operating Brand: Creperia by Katia
● Deployment Location: Coastal Beach Promenade, Southern Italy (European Union Zone)
● Equipment Classification: Street View Mobile Concession Food Trailer (Panoramic Glass & Single-Axle Series)
● Primary Menu Offerings: Traditional French Crepes, Belgian Waffles, Gelato, & Espresso Bar
● Logistics Transport Unit: Heavy Crane Flatbed Truck (Italian Transport Registration: ZA 462 PH)
● Towing Support Vehicle: Commercial Panel Van (Italian Vehicle License: FJ 815 NF)
● Exterior Aesthetic: Custom Lavender & Floral Graphic Wrap with Burgundy Retractable Canvas Awning
Importing custom mobile kitchen equipment across maritime routes into Southern European ports requires uncompromising structural protection against humidity, salt fog, and mechanical stress during handling:

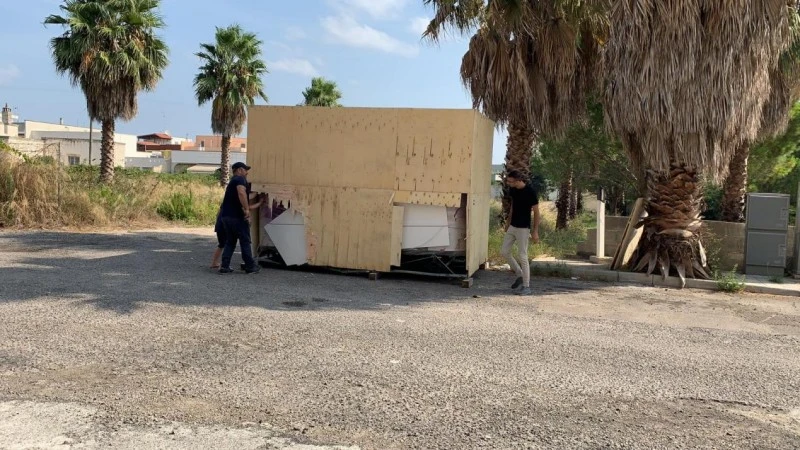

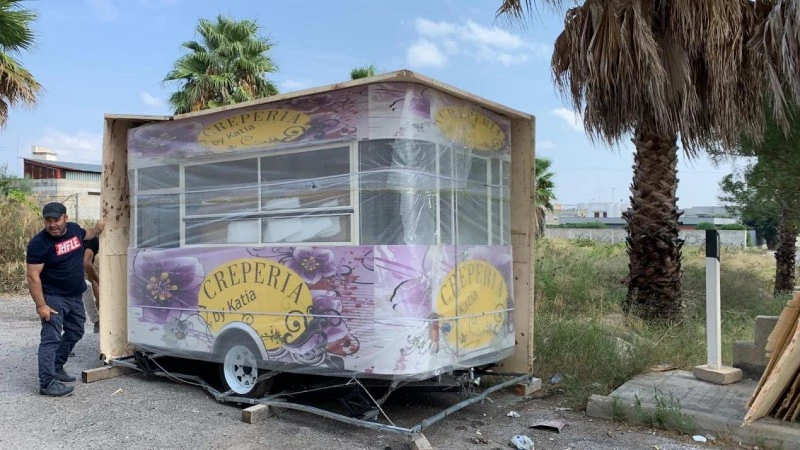

As verified by on-site delivery documentation, the trailer was encased inside a full-coverage, heavy-duty wooden shipping crate. Beneath the timber framing, the vehicle body, glass panels, and graphic wrap were wrapped in industrial stretch film and shock-absorbing bubble wrap.

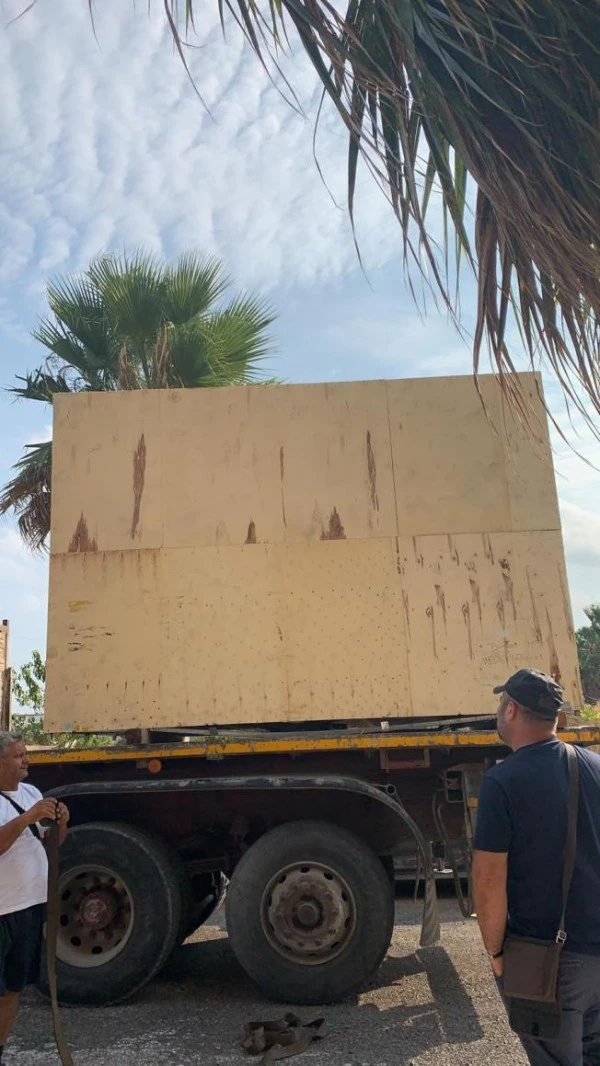

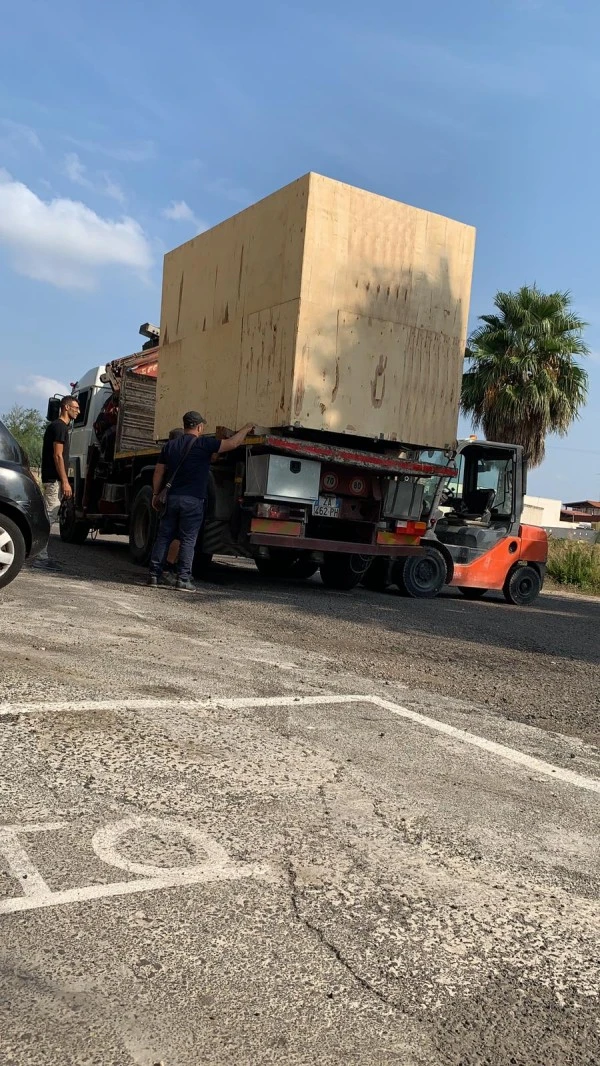

The unit arrived via flatbed crane truck (Plate: ZA 462 PH) and was offloaded directly onto location using a pneumatic forklift. The internal wheel blocks and chassis tie-down straps held the axle rigid throughout transit.

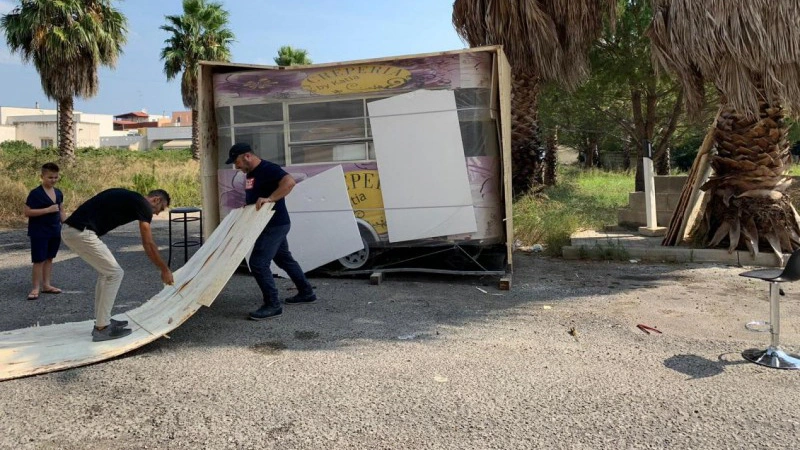

Upon removing the external timber panels on site under local Italian supervision, all curved corner panoramic windows, structural seams, and custom exterior graphics were confirmed 100% free of transit scratches, glass stress cracks, or frame warping.
Operating a concession trailer along Italian public plazas and coastal promenades requires adherence to regional road safety rules and municipal hygiene regulations:
|
Technical Aspect |
Engineering Specification & Field Performance |
|
Tow Hitch & Highway Ball Alignment |

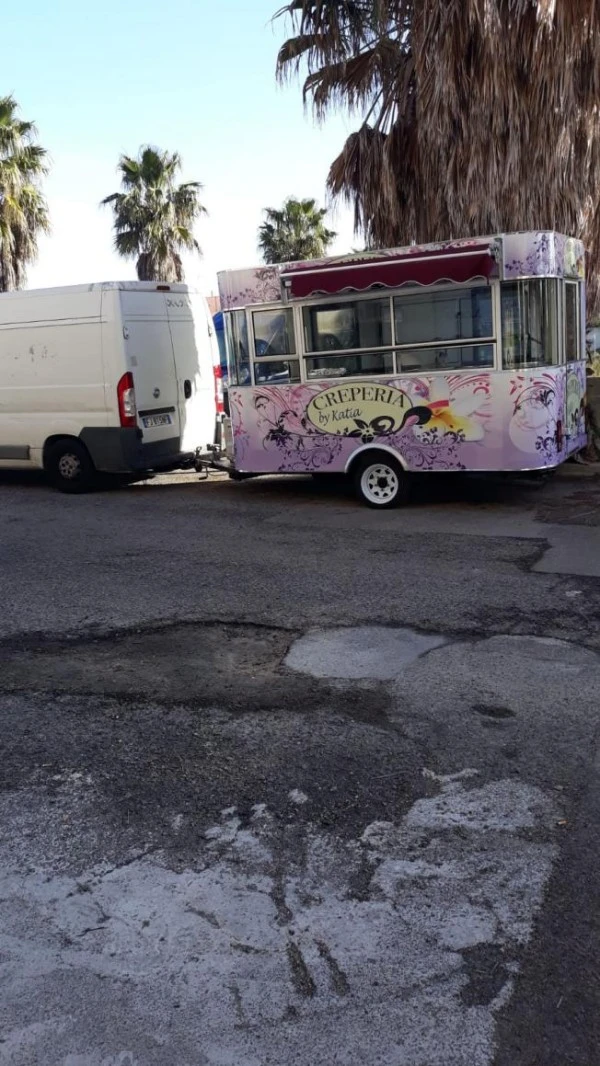

Compatible with standard European 50mm tow balls. Connects directly to commercial vans (e.g., Fiat Ducato, Plate FJ 815 NF) with balanced tongue weight for stable highway towing across Italian coastal roads. |
|
Electrical Load Distribution |
Pre-wired 230V/50Hz European system with an internal breaker box. Designed to handle continuous heavy draw from dual commercial crepe griddles (piastre per crepe), ice cream freezers, and coffee grinders without breaker trips. |
|
Panoramic Customer Service Window |
High-transparency curved corner glass panels offer 270° interior visibility. Front horizontal sliding glass windows allow clean food handoffs while keeping dust and sea breeze out of the kitchen area. |
|
Sun Protection & Climate Control |
Fitted with a heavy-duty burgundy canvas awning that extends over the service ledge, shielding staff and hot cooking surfaces from Mediterranean sun exposure. |
Customer Rating: ★★★★★ (5.0 / 5.0 Stars) Verified Owner: Italian Mobile Catering Enterprise (Creperia by Katia) Location: Southern Italy
“La nostra esperienza con questo trailer concession è stata eccellente. Il trasporto via mare era la nostra preoccupazione principale, ma l’imballaggio in cassa di legno e la protezione con pluriball hanno mantenuto tutto perfetto. Agganciarlo al nostro furgone per il trasporto su strada è stato facilissimo e il bilanciamento è ottimo. L’impianto elettrico supporta le nostre piastre per crepe ad alto consumo senza problemi. È una struttura solida, bella da vedere e pronta all’uso quotidiano.”
“Our experience with this concession trailer has been excellent. Sea transport was our primary concern, but the timber crate packaging and bubble wrap protection kept everything in pristine condition upon arrival. Hitching it to our van for road transport was straightforward, and the weight distribution is very well balanced. The electrical system handles our high-wattage crepe griddles without any power issues. It is a solid, visually appealing, and practical unit built for real daily commercial work in Italy.”
