Piaggio Side-Opening Fast Food Van

The TUNE Piaggio Side-Opening Fast Food Van is a compact mobile retail unit designed for drinks, packaged snacks, desserts, ice cream and promotional retail. As a mobile food cart manufacturer, Qingdao Tune Technology Co., Ltd. produces this three-wheel electric vending vehicle and Piaggio-style food van for distributors, event rental companies, resort operators and mobile retail businesses.

Qingdao Tune Technology Co., Ltd. was founded in 2015 and operates a manufacturing facility of approximately 4,500 square meters in Shandong, China. The factory covers material preparation, laser cutting, welding, polishing, painting, assembly, quality inspection, packing and shipment. TUNE products are exported to more than 50 countries, with North America accounting for approximately 60% of sales and Europe approximately 25%. Production follows ISO 9001 quality management, and applicable configurations carry CE, DOT, EPR and COC documentation. Third-party inspections are conducted by SGS and Intertek.

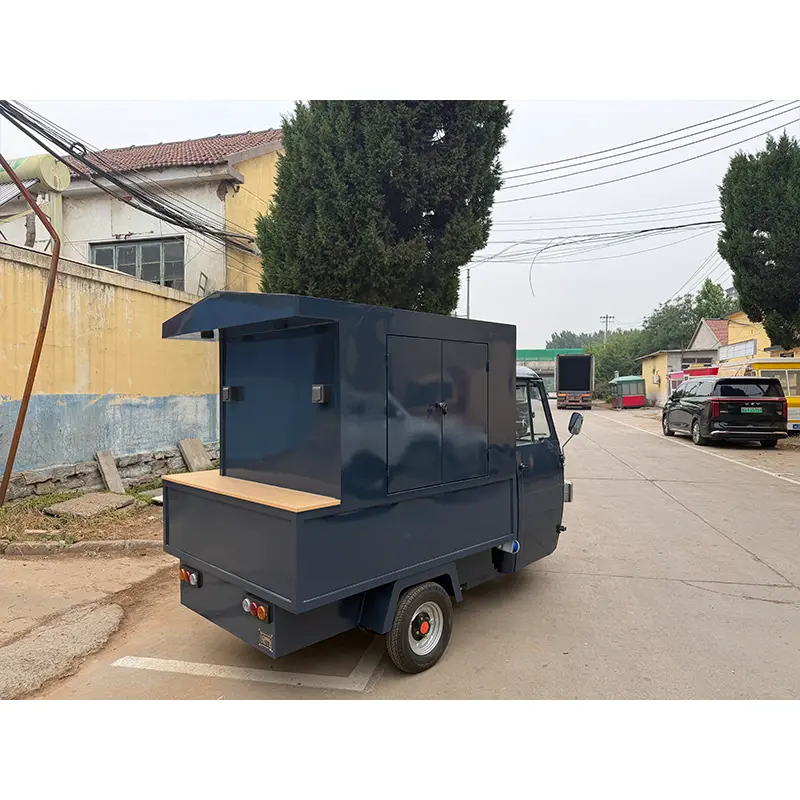

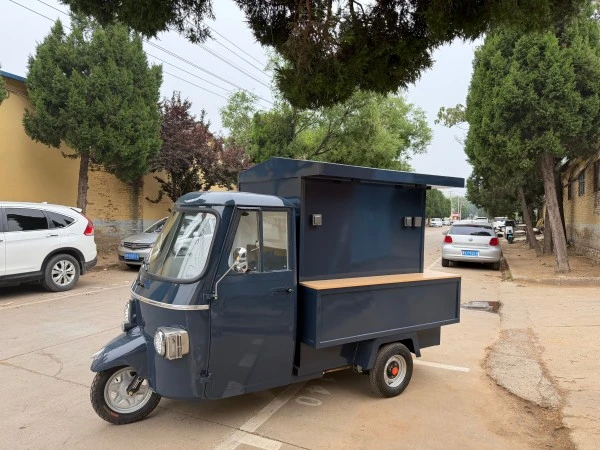

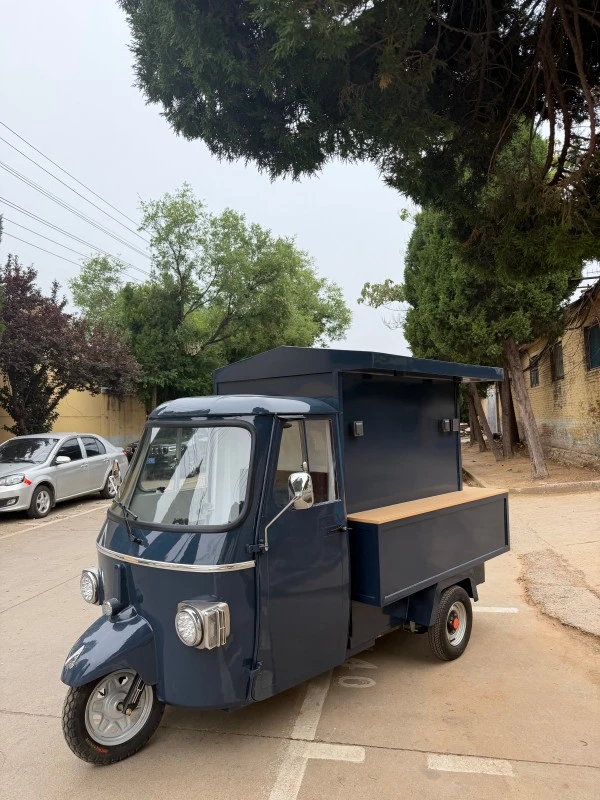

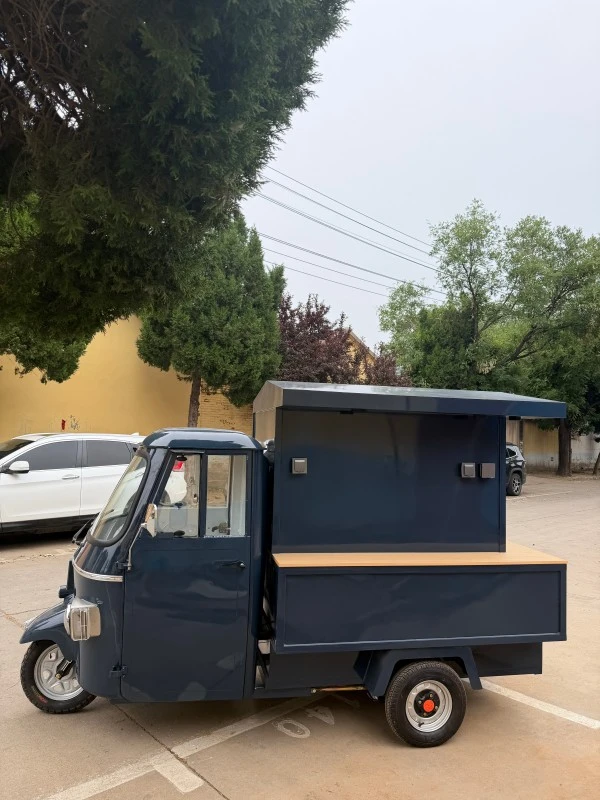

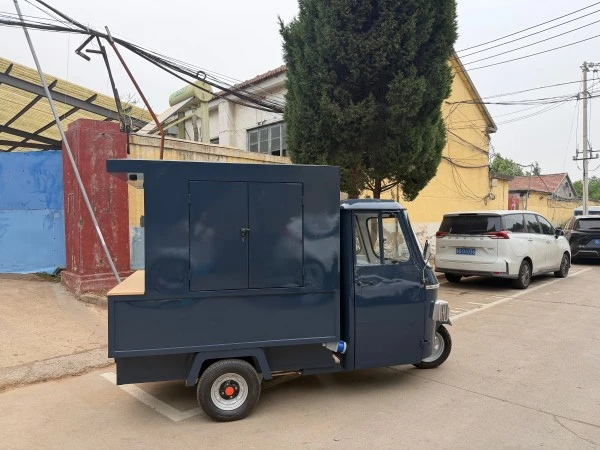

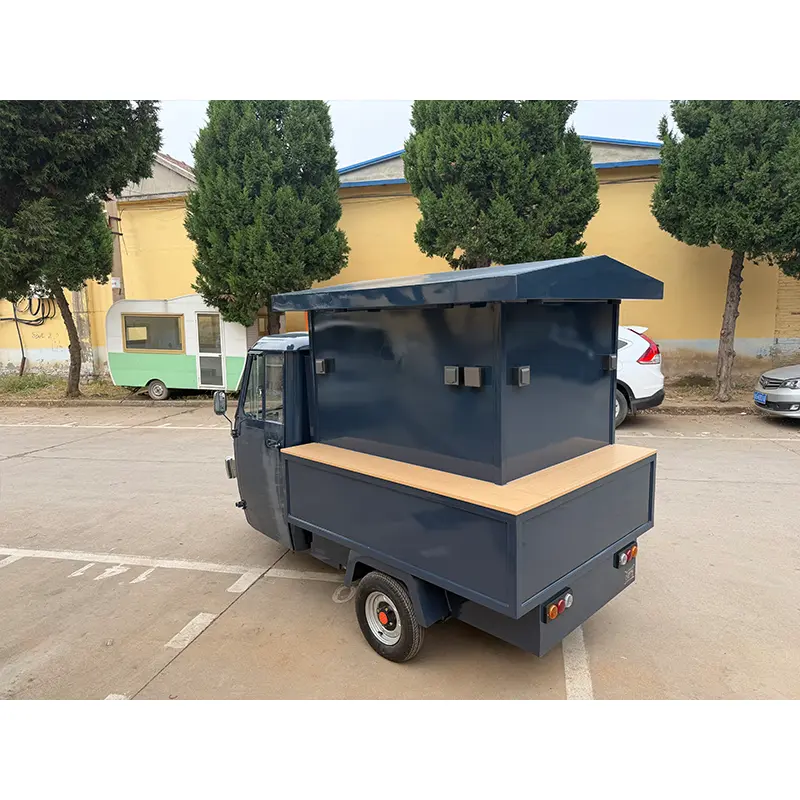

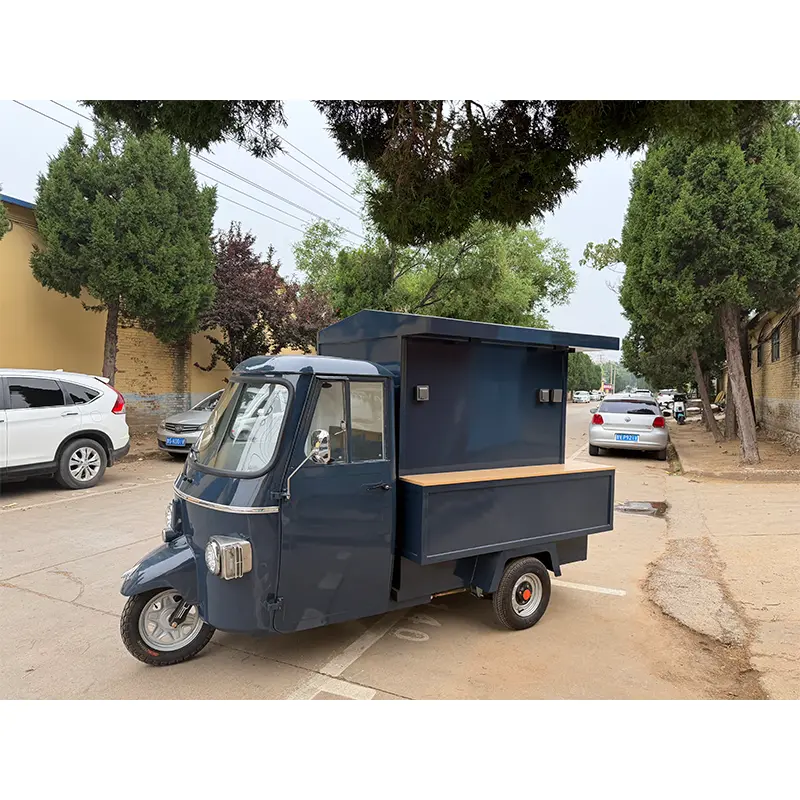

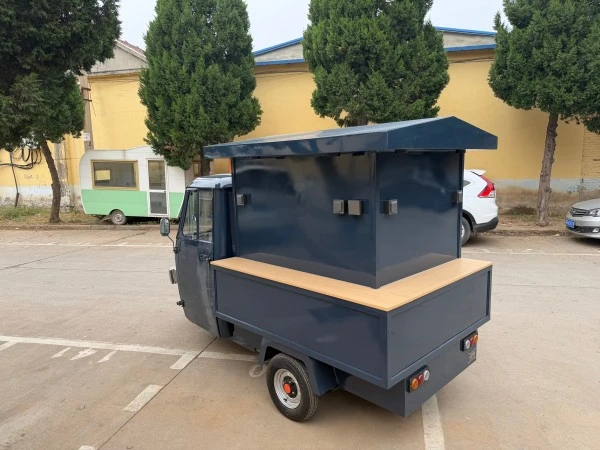

The layout places the driver’s cabin at the front and a high-volume service cabinet at the rear. The enclosed front section includes a curved windshield, side glazing, mirrors, headlights and a compact three-wheel chassis. At the back, the large service body creates a clearly defined selling area with a raised roof, broad counter and lockable access panels.

The dark blue exterior gives the vehicle a professional and understated appearance. It can be used as a base color for logos, promotional graphics or a complete brand identity. The wood-look counter adds visual contrast and creates a more welcoming customer interface, while the body can also be customized with stainless steel for projects that require a more commercial appearance.

The mobile electric food truck is suitable for controlled operation in markets, resorts, campuses, parks, exhibition areas, private communities, event venues and commercial properties. Public-road use, registration and vending permissions are reviewed according to the destination country.

Manufacturing Process and Workmanship

1. Configuration planning

Production begins with a review of the buyer’s intended products, service method and operating location. A drinks cart may need storage for cups, bottles, ice and dispensing equipment, while a snack or dessert cart may require more display space and less electrical equipment.

At this stage, TUNE confirms:

● Product category and operating environment

● Final body dimensions

● Motor and battery configuration

● Counter material

● Storage-door arrangement

● Branding and color requirements

● Electrical outlets and appliance load

● Charging method for the destination market

This planning step is important because a vehicle designed for packaged snacks has different ventilation, drainage and counter requirements from one designed for coffee or hot food.

2. Chassis and running system

The three-wheel chassis is prepared before the upper vending body is installed. The front wheel and steering system are aligned with the enclosed driver cabin, while the two rear wheels support the larger service compartment. Wheel fasteners, steering movement and brake response are checked before the body is fitted.

The listed electric option includes a 1,500W motor and a 60V 45Ah lithium battery. These specifications are intended for planned, low-speed movement between service points. Actual performance depends on the total load, road surface, slope, tire pressure, driving frequency and additional equipment.

3. Body fabrication

The rear cabinet is fabricated as a separate service structure and then integrated with the chassis. The roof extends over the serving area, creating a degree of cover for the operator and customer-facing counter. The side and rear panels provide surfaces for branding, while the lockable doors allow the operator to secure stock and equipment when the cart is unattended.

The visible body uses a dark blue finish and a wood-look counter. Buyers may select a wood or stainless-steel material option. The final material is matched to the product type, cleaning frequency, moisture exposure and required appearance.

4. Surface finishing

Before delivery, the body is checked for panel alignment, edge finishing, coating consistency, door gaps and visible surface damage. A dark glossy finish can show dust, fingerprints and minor marks more easily than a lighter matte surface, so the maintenance method is explained to the operator.

For customized orders, the logo artwork and graphic positions are approved before final coating or application. Graphics do not obstruct lights, doors, ventilation points, identification plates or safety-related components.

5. Electrical installation

The motor, controller, lithium battery, charger interface, lights and switches are connected according to the approved configuration. If the buyer adds a refrigerator, coffee machine, freezer, water pump or other appliance, the additional power demand is reviewed before installation.

The electrical system includes clear cable routing, protected connections and accessible inspection points. The charger supplied matches the battery system and the electrical standard of the destination market.

Structural Details for Commercial Use

Covered service area

The raised roof extends over the rear working area and helps create a more recognizable retail profile. It also provides a practical place for menu boards, lighting or a brand sign, provided the final installation does not exceed the confirmed dimensions or create excessive wind load.

Wood-look counter

The counter runs along the rear service body and provides a defined position for product display, order collection and packaging. It supports applications such as:

● Bottled drinks and canned beverages

● Packaged snacks

● Ice cream and desserts

● Coffee cups and takeaway accessories

● Fresh juice service

● Promotional samples

● Small retail products

Cooking equipment, water systems and refrigeration are optional configurations and are confirmed separately.

Lockable cabinet doors

The side cabinet doors provide access to the internal storage area. Operators separate daily-use products, reserve stock, cleaning supplies and electrical accessories. Keeping heavier items low helps maintain a more stable load arrangement.

The doors are checked for smooth opening, hinge alignment, lock function and sealing. Products are secured during movement to prevent internal shifting.

Technical Parameter Table

The overall height of 2,300 mm is checked against entrances, loading areas, covered parking spaces and transport restrictions before ordering. The final dimensions change if optional equipment, signs or additional roof fittings are added.

Engineering Data

The following data is available for project review and is confirmed according to the final configuration:

Certification and Compliance Documentation

The applicable requirements depend on the destination market and intended use. Buyers identify whether the vehicle requires:

● Local vehicle registration

● Road-use approval

● Lighting and signaling compliance

● Electromagnetic compatibility testing

● Battery and charger documentation

● Lithium battery transport documents

● Food-contact material declarations

● Electrical safety records

● Local food vending or hygiene permits

TUNE can help organize the technical information required for the buyer’s compliance review. If a customer needs CE documentation, EMC test results, battery transport records or another certificate, the exact document and applicable vehicle configuration are confirmed in writing.

CE marking — applies to applicable electrical configurations of the vehicle.

ISO 9001 — covers the factory quality management system at the Shandong production facility.

DOT documentation — relates to confirmed transport configurations for the destination market.

Certificate numbers, issuing bodies and product scope are supplied with the final order documents.

Lithium Battery and Quality Control

The 60V 45Ah lithium battery is identified by its model, rated voltage, rated capacity, charger compatibility and installation position. During inspection, the buyer requests confirmation of:

1. Battery label and rated specifications

2. Charger output and plug type

3. Cable routing and connector condition

4. Battery fixing and protection

5. Controller connection

6. Charging response

7. Lighting and switch function

8. Motor start and stop response

Recommended Operating Workflow

Prepare: charge the lithium battery and confirm that the service area is clean.

Inspect: check steering, brakes, wheels, lights, doors, locks, counter fixing and electrical connections.

Load: place heavy products in the lower cabinet and keep frequently used items close to the service counter.

Position: park on firm, level ground with sufficient space for customers and operator movement.

Serve: use only the equipment included in the approved configuration and keep the counter free from unnecessary items.

Close: remove waste, clean the working surface, secure products, lock the cabinet and connect the cart to the approved charger.

This workflow is suitable for a small team or an individual operator and helps separate driving, stock handling and customer service tasks.

Frequently Asked Questions

What businesses can use this vehicle?

It is adapted for drinks, packaged snacks, desserts, ice cream, coffee accessories, promotional campaigns and mobile retail. The final equipment matches the chosen business model.

Is it a fully equipped cooking truck?

No. The base structure is a mobile vending body. Cooking appliances, refrigeration, water tanks, sinks, drainage and ventilation require separate confirmation.

Can the counter be changed to stainless steel?

Yes. Wood and stainless-steel options are available subject to the final design, material specification and intended cleaning requirements.

Is the battery lithium?

Yes. The listed configuration uses a 60V 45Ah lithium battery. A compatible charger is selected for the destination market.

Can the exterior color and logo be customized?

Yes. The dark blue finish can be changed, and branding graphics are added after artwork approval. The final placement keeps lights, doors and identification plates visible.

Is the product covered by a warranty?

The stated warranty period is one year. The agreement defines coverage for the chassis, body, motor, controller, battery, charger and optional equipment.

Can it be driven on public roads?

This depends on local registration, traffic, insurance and vehicle-classification rules. The buyer confirms the legal operating requirements.

Warranty and After-Sales Support

The product is supplied with a one-year warranty from the date of shipment, unless otherwise stated in the sales contract.

Warranty exclusions cover damage caused by improper operation, overloading, unauthorized modification, transportation, normal wear, corrosion, consumable parts, third-party equipment, incorrect voltage or force majeure events.

If a manufacturing defect appears, the buyer provides the model, serial number, delivery date, invoice reference, photos or video and a description of operating conditions. TUNE reviews the information and provides replacement parts, repair guidance, on-site support or another solution confirmed in the sales contract.

Technical support is provided by TUNE engineering staff through email, video call or written instructions. Spare parts include tires, brake components, motor controller parts, battery charger, lighting modules, door hardware and electrical connectors, subject to stock and shipping arrangement.

Final Inspection and After-Sales Support

Before shipment, the Electric Food Cart is inspected against the approved specification. The checklist includes:

● 3550 × 1400 × 2300 mm overall dimensions

● 2000 × 1400 mm body size

● 1,500W motor identification

● 60V 45Ah lithium battery

● Charger and plug compatibility

● Steering and braking response

● Front and rear lighting

● Wheel and tire installation

● Door hinges and locks

● Counter stability

● Roof and body-panel alignment

● Surface finish and logo placement

● Electrical switch operation

● Packaging and included accessories

TUNE can provide configuration confirmation, operating instructions, maintenance guidance and replacement-parts support within the agreed scope. The purchase contract records customization details, inspection requirements, delivery conditions and the one-year warranty. This gives distributors and end users a practical reference for installation, operation and future service.
