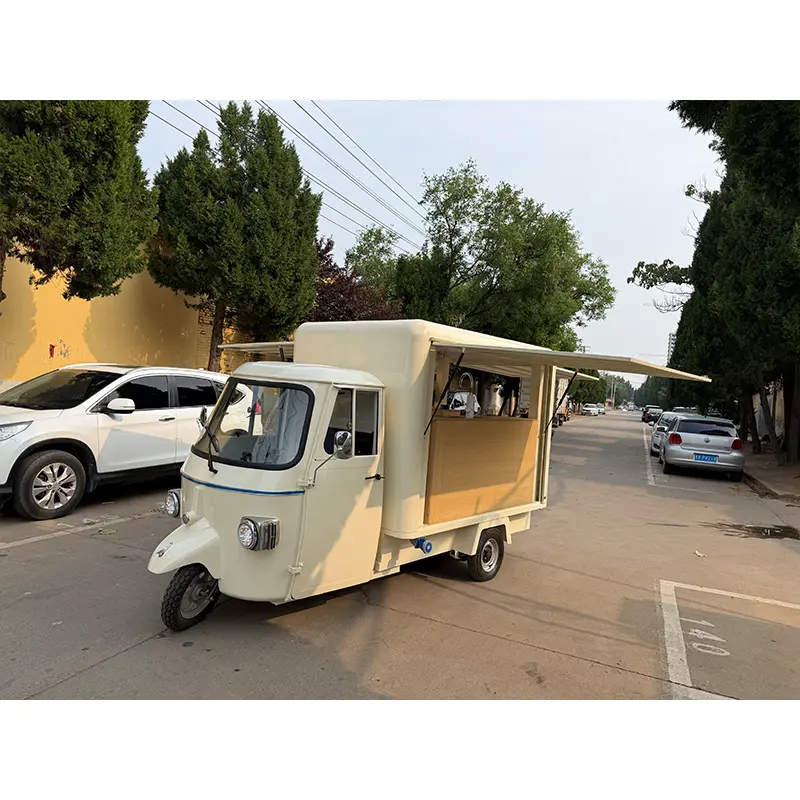

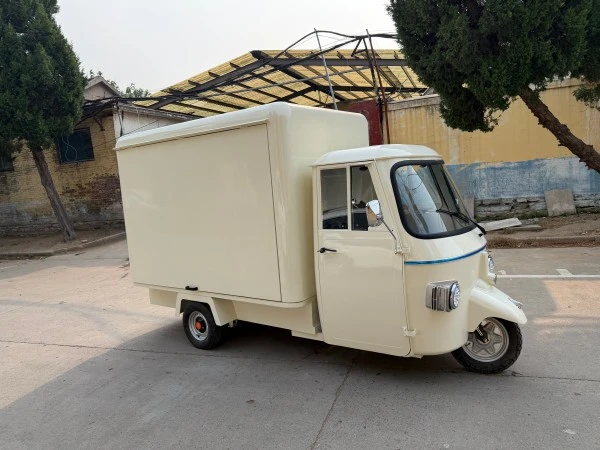

The TUNE Piaggio Ape Mobile Coffee Bar Truck combines short-distance electric mobility with a built-in service cabin. As a Piaggio Ape coffee truck manufacturer, Qingdao Tune Technology Co., Ltd. produces this ape espresso van and classic piaggio coffee cart for coffee brands, event rental fleets, resorts, campuses and mobile vending operators. The three-wheel structure is suitable for planned movement between permitted vending points, event spaces, parks, resorts, campuses and private commercial areas. Compared with a simple push cart, this configuration provides a more complete working environment, including side-opening service panels, overhead lighting, electrical outlets, counter cabinets and a sink area.

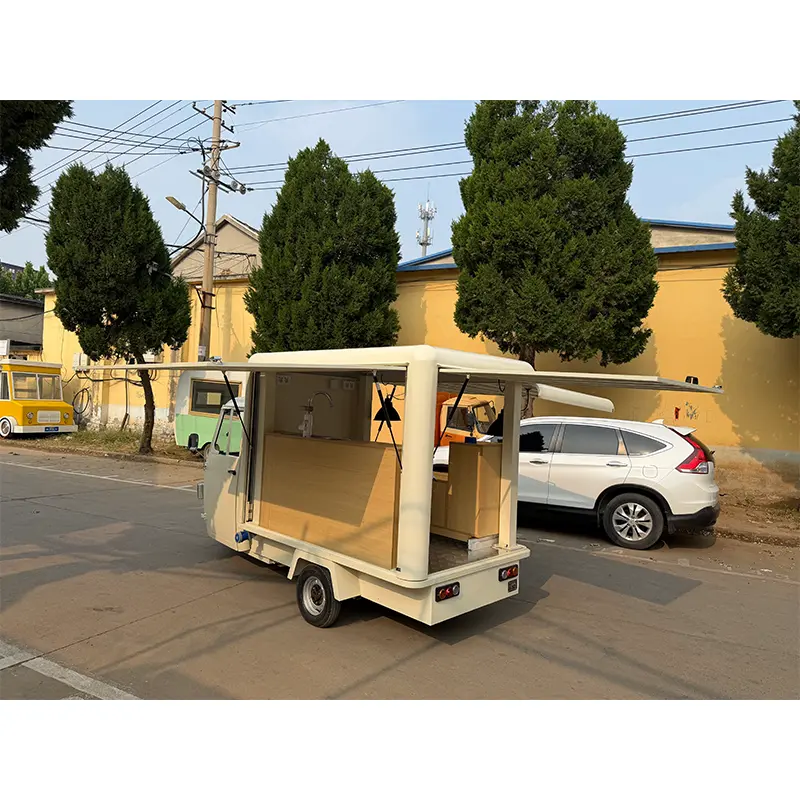

The rear service body is designed around direct customer interaction. When the side awnings are lifted, the counter becomes more visible and creates a sheltered serving position. When closed, the panels help protect the internal workspace and equipment during storage or transport. The final operating method should be adapted to local traffic, vending, food hygiene and electrical regulations.
Qingdao Tune Technology Co., Ltd. was established in 2015 and operates a manufacturing facility of approximately 4,500 square meters in Shandong, China. TUNE products are shipped to more than 50 countries, with North America representing approximately 60% of sales and Europe approximately 25%. Production follows ISO 9001 quality management, and applicable configurations carry CE, DOT, EPR and COC documentation. Third-party inspections are handled by SGS and Intertek.
The electric system uses a lithium battery with selectable capacities of 32 Ah, 40 Ah or 45 Ah at 60 V. This gives buyers flexibility when balancing vehicle use, charging arrangements, expected daily movement and budget.
The 32 Ah option suits shorter routes or locations with frequent access to charging. The 40 Ah and 45 Ah options provide a larger energy reserve for longer planned operating periods, although actual range is affected by payload, road surface, slope, speed, weather, tire condition and driving style.
Battery capacity is not a guaranteed mileage figure. Before ordering, the buyer confirms:
● Battery voltage and capacity
● Charger input and output specifications
● Charging connector and plug standard
● Charging time under the agreed test conditions
● Battery protection system
● Battery installation position
● Expected payload and operating terrain
● Storage requirements during long periods without use
The listed motor option is 1,500 W. This power level is intended for low-speed mobile vending applications and controlled routes. Actual climbing performance and acceleration depend on the total vehicle load, battery condition, road gradient and local operating conditions.
The vehicle is driven at a controlled speed, particularly when the service panels are open, on uneven ground or in areas with pedestrians. Operators inspect the brakes, tires, steering system and lighting before each working period.

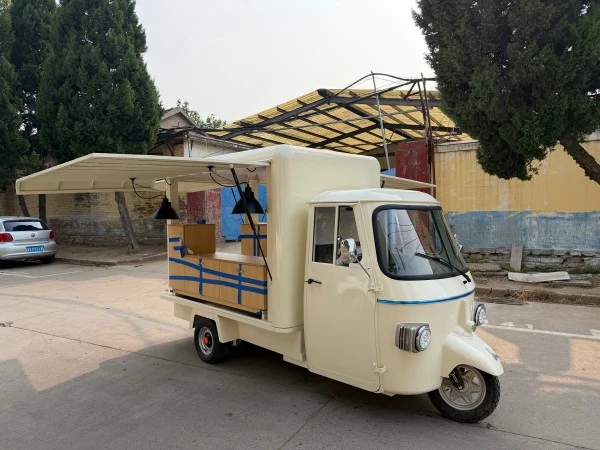

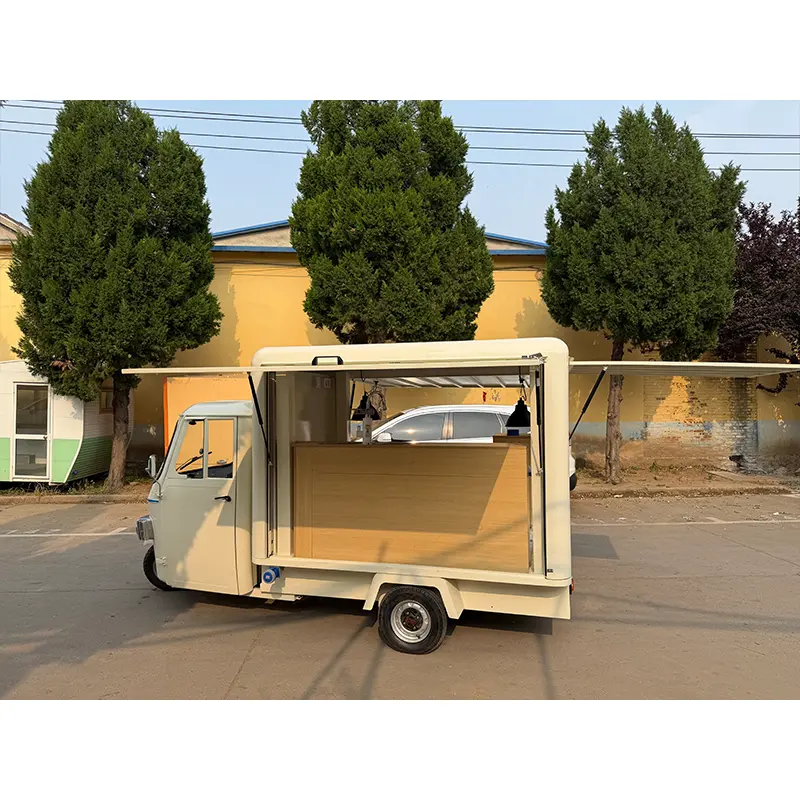

The fold-up side panels extend the visible service area and can also provide shade for the operator and products. Gas-supported opening mechanisms help hold the panels in position during service. The panels are fully closed and secured before the vehicle moves.
This layout supports different vending concepts, including:
● Coffee and tea
● Bottled or canned beverages
● Ice cream and chilled products
● Pastries and desserts
● Packaged snacks
● Light event catering
● Promotional sampling
● Seasonal street vending
The selected menu should match the available counter space, electrical load, storage area and cleaning facilities. Refrigeration, cooking appliances and other optional equipment are confirmed separately.

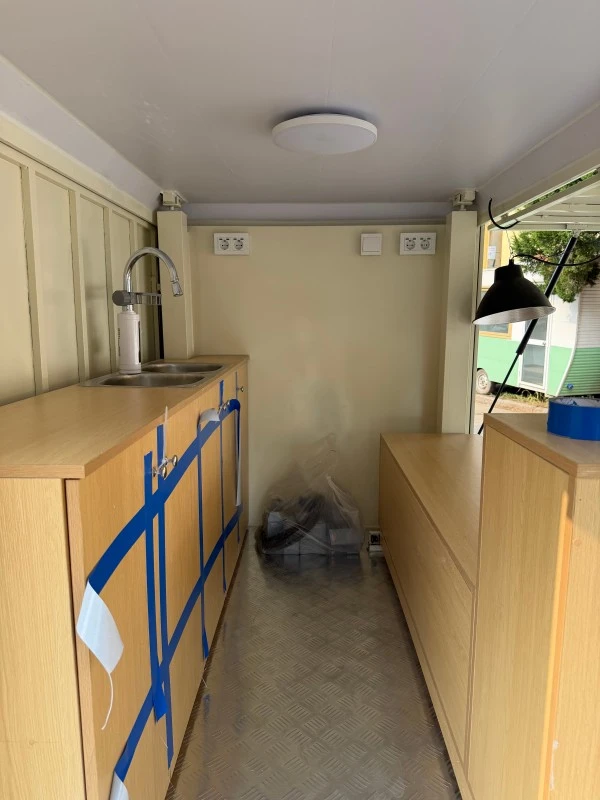

The interior provides two main counter sections, cabinet storage, a stainless-steel sink, faucet, wall outlets and ceiling lighting. This arrangement allows the operator to separate preparation, storage and customer service areas more clearly.
The sink supports basic hand-washing and cleaning procedures when connected to an appropriate water supply and wastewater collection system. Tank capacity, pump type, drainage method and plumbing accessories are included in the final configuration if required.
The wood-style panel option creates a warm café or dessert-shop appearance. Stainless steel suits buyers who prioritize frequent cleaning and a commercial food-service finish. Material selection is based on the menu, expected moisture exposure, cleaning frequency and local requirements.
Front driving area Used for steering, vehicle control and movement between approved locations.
Rear preparation counter Suitable for arranging small appliances, cups, ingredients and packaging.
Sink section Connected to a fresh-water and wastewater arrangement according to the agreed design.
Side service opening Provides direct access between the operator and customers.
Lower cabinets Suitable for selected supplies, tools and packaging. Heavy items are stored low and secured during movement.
Ceiling lighting and outlets Support basic work visibility and approved electrical appliances. Total electrical load is checked before additional equipment is installed.
|
Item |
Specification |
|
Product Name |
Piaggio Ape Mobile Coffee Bar Truck |
|
Brand Name |
TUNE |
|
Product Type |
Piaggio |
|
Overall Dimension |
3750 × 1400 × 2000 mm |
|
Body Size |
2200 × 1400 mm |
|
Motor Power |
1500 W |
|
Battery Type |
Lithium battery |
|
Battery Voltage |
60 V |
|
Battery Capacity |
32 Ah / 40 Ah / 45 Ah optional |
|
Body Material Options |
Wooden panel / Stainless steel |
|
Structure |
Three-wheel electric vending vehicle |
|
Interior Equipment |
Counters, cabinets, sink, faucet, outlets and lighting |
|
Application |
Coffee, snacks, beverages and outdoor vending |
|
Usage |
Outdoor Street Vending |
|
Color |
Customizable |
|
Condition |
New |
|
Warranty Reference |
1 Year |
|
Place of Origin |
Shandong, China |
|
Port of Dispatch |
Qingdao seaport |
The listed dimensions are checked against the buyer’s garage, storage room, transport route, parking space and local access restrictions. Payload, curb weight, maximum speed, braking specification, ground clearance and turning radius are confirmed in the technical drawing before production.
The following items are available for project review and are finalized against the confirmed order:
|
Data Item |
Status |
|
Vehicle kerb weight and gross operating weight |
Issued with the approved drawing |
|
Motor rated output and controller rating |
Shown on the specification sheet |
|
Battery voltage, amp-hour rating and charger output |
Matched to the order configuration |
|
Battery identification and transport paperwork |
Supplied where required |
|
Brake type and pre-shipment check record |
Completed before dispatch |
|
Maximum recommended load |
Set by chassis and body design |
|
Electrical load of the base configuration |
Calculated against selected appliances |
|
Water system capacity if tanks are ordered |
Set by the confirmed tank and drainage layout |
|
Steering and brake test result |
Recorded before shipment where applicable |
Certification requirements for an electric vending vehicle vary by country and involve different parts of the product, including vehicle registration, electromagnetic compatibility, low-voltage electrical safety, battery and charger safety, lighting and signaling equipment, food-contact materials, fire and ventilation provisions, and local vending and hygiene permissions.
TUNE prepares a documentation list according to the destination market, and the applicable approval route is confirmed before the order is finalized. If a buyer requires CE-related documents, battery transport documents, EMC test information or other compliance materials, the exact document name and responsible issuing party are stated in the contract.
CE marking — applies to applicable electrical configurations of the vehicle.
ISO 9001 — covers the factory quality management system at the Shandong production facility.
DOT documentation — relates to confirmed transport configurations for the destination market.
Certificate numbers, issuing bodies and product scope are supplied with the final order documents.
1. Park the vehicle on stable, level ground.
2. Apply the parking brake and check the surrounding area.
3. Inspect tires, lights, steering and service-panel supports.
4. Confirm the battery charge and connect only the approved charger.
5. Prepare the water and wastewater arrangement if the sink is in use.
6. Place ingredients, packaging and utensils in designated areas.
7. Open the service awnings and switch on the necessary lighting.
8. Operate appliances within the confirmed electrical load.
9. Clean the counters and sink during service intervals.
10. Close the awnings, secure the cabinets and disconnect equipment before movement.
A fixed workflow is useful for small vending teams because it makes daily preparation easier to check and reduces the chance of leaving loose items inside the cabin.
The ape espresso van is suited to planned vending locations rather than unrestricted long-distance road travel. Potential operating environments include:
● Outdoor markets
● Tourist attractions
● Resort properties
● School or campus areas
● Business parks
● Community events
● Sports venues
● Private gardens and commercial courtyards
For coffee service, buyers confirm the coffee machine power rating, water supply, wastewater capacity and ventilation needs. For ice cream or chilled beverages, refrigeration equipment and temperature-control requirements are specified. For hot food, the appliance type, heat protection, ventilation and total power load require separate review.
The lithium battery is available in 32 Ah, 40 Ah or 45 Ah configurations at 60 V. The appropriate option depends on the expected route, operating time, payload and charging access.
No. Range depends on terrain, load, speed, battery condition, weather and driving habits. A range figure is provided only with a defined test method.
Yes. The available material options include wooden panels and stainless steel. The final choice reflects the intended product category and cleaning requirements.
The vehicle includes a sink and faucet area. Fresh-water tanks, wastewater tanks, pumps and drainage accessories are confirmed as part of the final order.
Coffee equipment is installed if its dimensions, power demand, water requirements and ventilation needs are compatible with the counter layout and electrical system.
No. The side awnings are folded, locked and checked before the vehicle is moved.
The product is supplied with a one-year warranty from the date of shipment, unless otherwise stated in the sales contract.
|
Covered Section |
Warranty Content |
|
Chassis and frame |
Three-wheel chassis, welded joints and structural connections against manufacturing defects |
|
Body and cabin |
Body panels, side awnings, cabinet doors, locks, counter and surface coating against production defects |
|
Electric motor and controller |
1,500W motor and controller against manufacturing faults |
|
Battery and charger |
60V lithium battery (32 Ah / 40 Ah / 45 Ah) and supplied charger against manufacturing defects, subject to the battery supplier's conditions |
|
Water system |
Sink, faucet, water lines and drainage connections against leakage caused by production defects |
|
Electrical components |
Factory-installed wiring, outlets, lighting and control components against manufacturing faults |
|
Running gear |
Wheels, tires, brake components and steering parts against manufacturing defects |
|
Optional equipment |
Coffee machine, refrigeration, water tanks or other selected fittings, subject to the original manufacturer's terms |
Warranty exclusions cover damage caused by improper operation, overloading, unauthorized modification, transportation, normal wear, corrosion, consumable parts, third-party equipment, incorrect voltage or force majeure events.
If a manufacturing defect appears, the buyer provides the model, serial number, delivery date, invoice reference, photos or video and a description of operating conditions. TUNE reviews the information and provides replacement parts, repair guidance, on-site support or another solution confirmed in the sales contract.
Technical support is provided by TUNE engineering staff through email, video call or written instructions. Spare parts include tires, brake components, motor controller parts, battery charger, lighting modules, awning hardware, sink fittings, door hardware and electrical connectors, subject to stock and shipping arrangement.
Before production, the buyer and TUNE approve a configuration sheet covering the final dimensions, battery capacity, charger, motor, body material, counter layout, sink arrangement, electrical outlets, lighting, awning structure, color, logo and optional appliances.
A pre-delivery inspection covers:
● Overall body dimensions
● Panel alignment and surface finish
● Door, cabinet and awning operation
● Tire and wheel installation
● Brake and steering response
● Lighting and electrical outlets
● Sink and faucet connections
● Battery and charger identification
● Interior counter stability
● Packaging and shipping protection
Clean the stainless-steel sink and worktops after each service period. Keep the wooden-style panels dry and avoid prolonged contact with standing water. Do not spray high-pressure water directly onto the battery compartment, charger, wiring, control system or electrical outlets.
Regularly check the tire pressure, wheel fasteners, brake components, steering joints, awning supports, cabinet hinges and battery connectors. If the classic piaggio coffee cart is used in coastal or humid environments, metal fittings and electrical connections are inspected more frequently. The vehicle is stored in a dry, ventilated location when it is not in use.
The purchase agreement states the final dimensions, motor and battery configuration, body material, equipment list, water system, electrical standard, delivery schedule, inspection procedure and warranty scope. TUNE provides operating instructions, layout drawings, electrical information, water-system guidance and replacement-parts assistance. Warranty terms are listed separately for the chassis, body, electrical components, lithium battery, charger, water system and optional appliances.
