Six Station Commercial Restroom Trailer

The TUNE TNT70 Six Station Commercial Restroom Trailer is a towable sanitation unit with six private restroom rooms for festivals, sports events, exhibitions, public activities and industrial projects. As a restroom trailer manufacturer, Qingdao Tune Technology Co., Ltd. produces this six station restroom trailer and construction site toilet trailer for event organizers, rental companies, municipal projects and industrial contractors. A six-station arrangement reduces the need to install multiple small trailers, while the correct quantity depends on expected attendance, peak usage, opening hours and cleaning resources.

A six station restroom trailer is often considered for festivals, large sports events, temporary exhibitions, public activities and industrial projects. It can also be used as part of a larger sanitation plan when several activity zones need separate facilities.

The operator does not calculate capacity only from the number of rooms. A practical assessment also includes:

● Peak visitor flow

● Average stay time

● Event duration

● Number of cleaning staff

● Fresh-water replenishment frequency

● Wastewater removal access

● Distance from the service vehicle

● Availability of electrical power

● Weather conditions

For a high-attendance event, several sanitation units may still be required even when one six-station trailer is available.

Product Data

The final configuration may affect the actual weight, power consumption and available interior space. The purchaser requests an updated equipment list when adding water heaters, additional air-conditioning equipment, special lighting or branding materials.

Layout and Interior Use

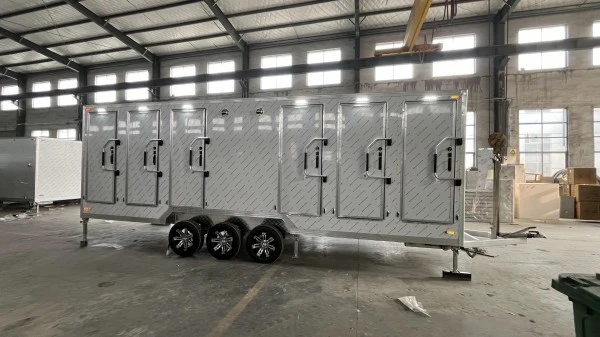

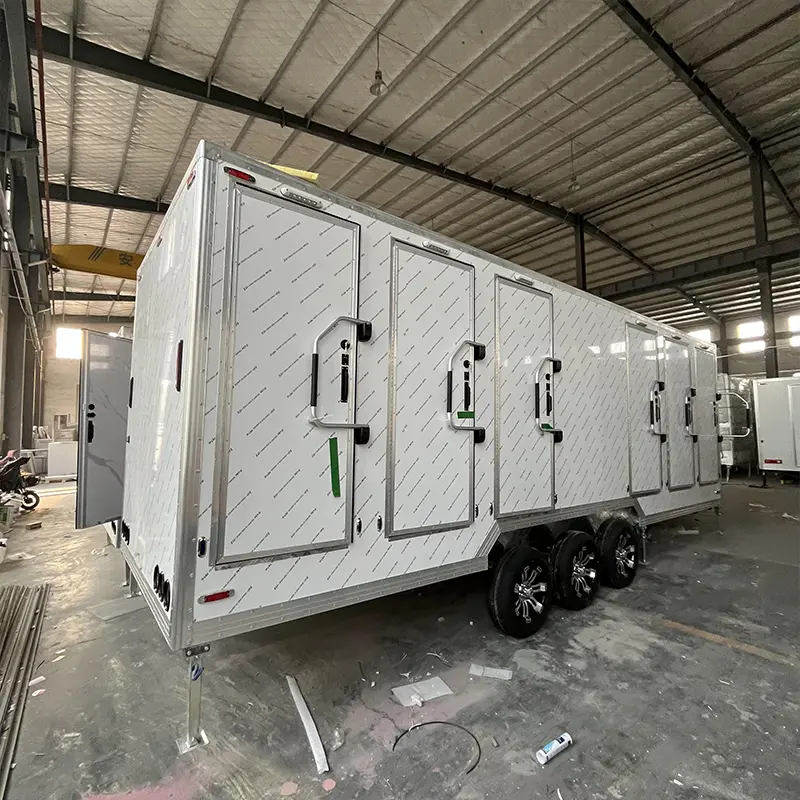

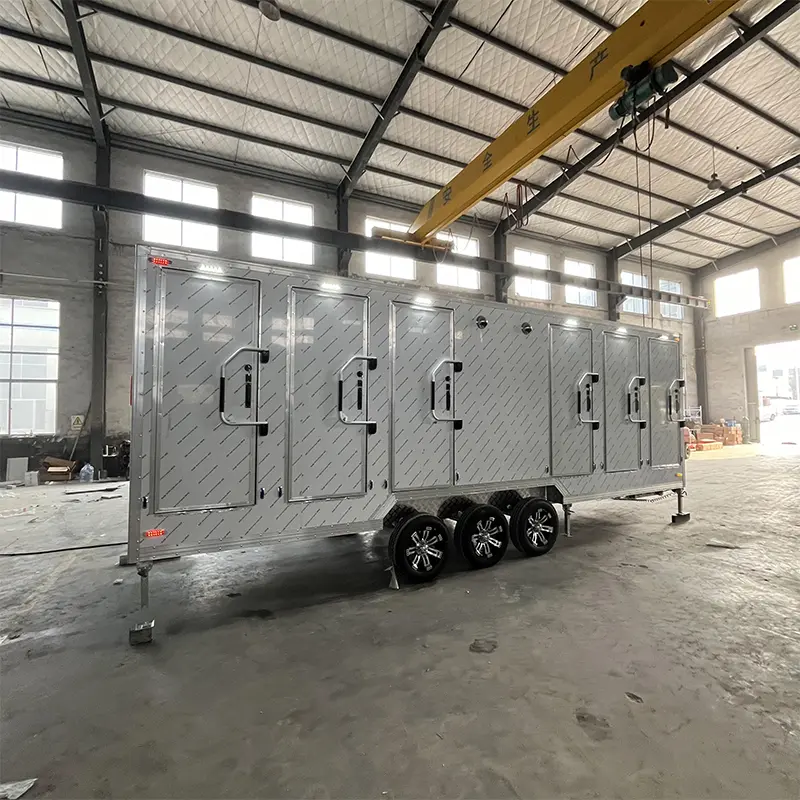

The six-station design separates users into multiple private rooms. This arrangement is useful where privacy, orderly entry and room-by-room cleaning are important.

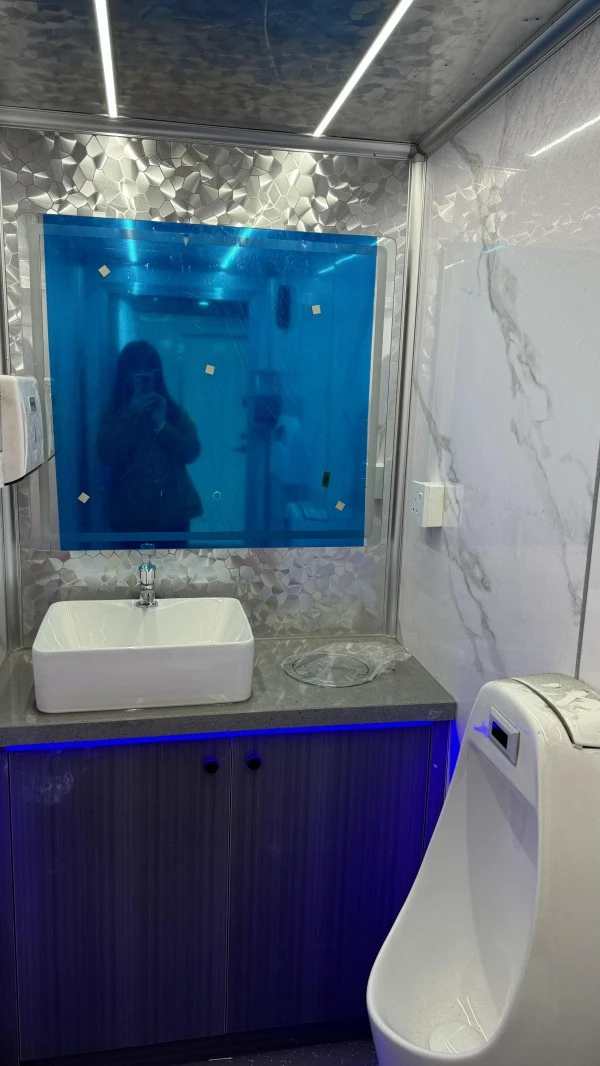

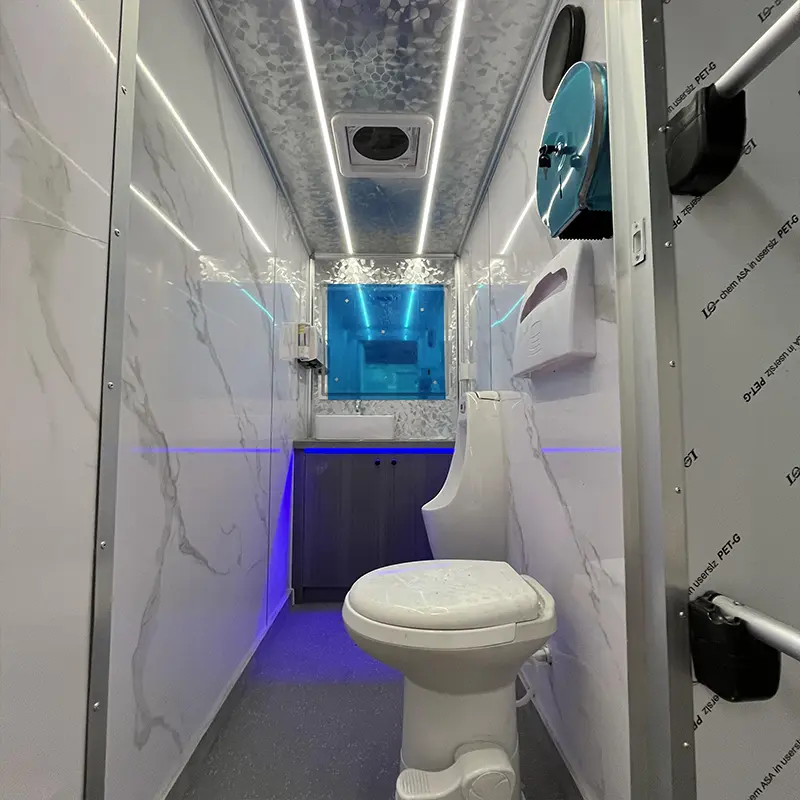

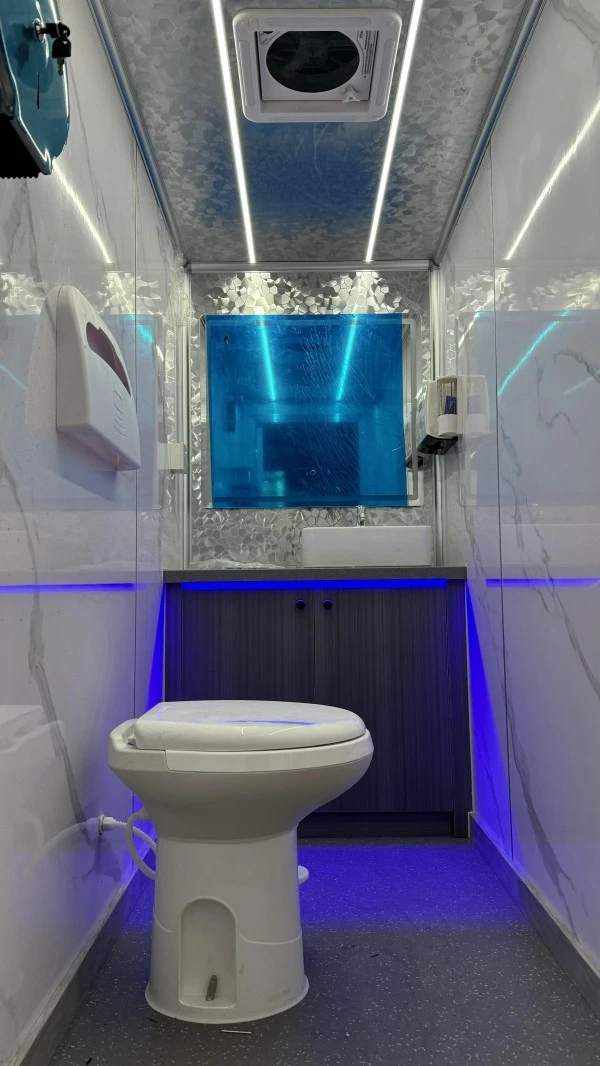

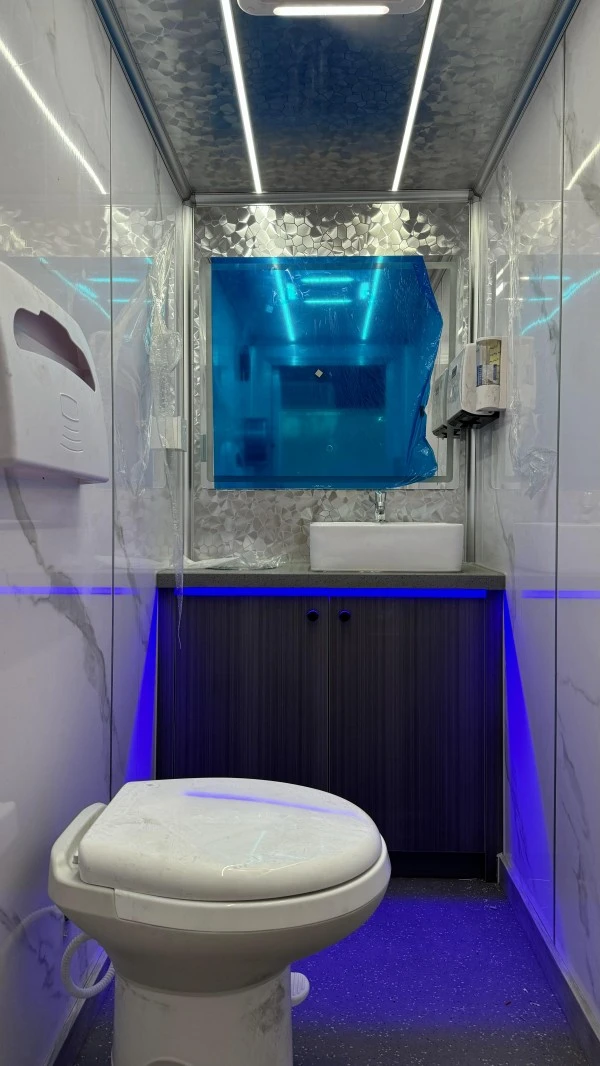

The standard layout includes six toilet stations, hand-washing areas, men’s urinal equipment, mirrors, lighting, ventilation and service access. The exact position of each fixture is determined by the approved drawing, especially when the buyer requires different gender arrangements, additional sinks or modified door positions.

A longer body is used for this configuration, with a reference overall length of 5,200 mm. Site access is checked carefully before ordering. The buyer measures the entrance, turning area and final parking location, particularly for venues with narrow gates or temporary fencing.

Recommended Applications

Festivals and Public Gatherings

This Outdoor Toilet Trailer is used for music festivals, cultural events, exhibitions, fairs and public celebrations. The six-room structure is positioned near a central activity area, subject to pedestrian safety and service access.

At busy events, operators create a queue area that does not block emergency routes. Cleaning staff have a separate service path whenever possible.

Sports and Recreational Venues

For sports fields, temporary stadium areas and outdoor competitions, the unit serves athletes, staff, guests or spectators. Placement considers changing attendance levels before, during and after the activity.

The event organizer prepares a schedule for tank checks, consumable replacement and surface cleaning. Weather protection and electrical reliability are important when the trailer remains outdoors for long periods.

Construction and Industrial Sites

The unit provides multiple restroom stations for construction, infrastructure and industrial projects. Before placement, the contractor reviews ground stability, heavy-vehicle movement, dust exposure and access for wastewater removal.

A Construction Site Toilet Trailer is relocated when the work area changes, and relocation is completed with a suitable towing vehicle and according to local transport requirements.

Temporary Municipal or Emergency Use

The built-in tanks and towable chassis support temporary sanitation arrangements where permanent facilities are not immediately available. Emergency use still requires water supply, waste collection, safe placement, cleaning personnel and power planning.

Equipment and Operating Performance

The 600 L fresh-water tank and 1,700 L wastewater tank provide a reference water-service arrangement. These capacities are not a fixed user guarantee because actual consumption is affected by flushing, hand washing, cleaning and optional hot-water equipment.

The reference package includes:

● Six foot-flush ceramic toilets

● Men’s sensor urinal

● Hand-washing sinks

● Push-button faucets

● Illuminated dressing mirrors

● Air-conditioning system

● Interior and exterior lights

● Music player system

● Fresh-water pump

● Stainless steel tanks

● Plumbing and drainage fittings

If hot water is required, the buyer confirms the water heater, electrical load, installation position and safety protection in advance.

Site Service Procedure

Confirm access route → Position the trailer → Level and stabilize → Fill fresh water → Connect power → Test all rooms → Start operation → Clean at scheduled intervals → Remove wastewater → Record maintenance

Before opening the unit, staff test every toilet, sink, faucet, urinal sensor, light, pump and air-conditioning system. The wastewater outlet remains closed during normal operation.

During service, the operator inspects:

● Water level

● Wastewater level

● Toilet flushing

● Sink drainage

● Visible leaks

● Pump noise

● Lighting

● Door operation

● Interior cleanliness

● Ventilation and temperature

After the operating period, the rooms are cleaned and disinfected. Wastewater is removed at an approved facility. In cold climates, exposed plumbing is protected or drained according to the local operating plan.

Chassis and Road Transport

The TNT70 is built on a trailer chassis with two torsion axles, brakes and four 195/70 R15 tires. Before road transport, check:

● Hitch connection

● Safety chains

● Brake wiring

● Road lights

● Tire condition and pressure

● Wheel fasteners

● Trailer doors

● Stabilizer legs

● External pipes and fittings

● Load distribution

The reference weight is 1,200 kg, and the loaded transport weight is higher when tanks, equipment and accessories are included. The towing vehicle meets the required capacity, and registration or road-use rules are confirmed in the destination market.

Inspection and Technical Documentation

TUNE Supplier prepares a technical checklist for the confirmed order. Inspection items include:

● Chassis and body dimensions

● Axle and brake components

● Tire installation

● Door and window condition

● FRP panel finish

● Fresh-water tank connections

● Wastewater outlet

● Toilet flushing

● Sink drainage

● Urinal sensor

● Water pump

● Lighting system

● Air-conditioning function

● Ventilation

● Packaging and loading protection

Verified factory photos, production records, inspection videos, delivery documents and approved customer application information are added when available. Certification or road-compliance statements are published when the relevant documents match the exact model and destination market.

Certifications

CE marking — EU safety, health and environmental protection standards.

ISO 9001 — international quality management system standard.

DOT certification — U.S. Department of Transportation safety standards.

Frequently Asked Questions

What is the difference between this unit and a smaller restroom trailer?

The TNT70 provides six restroom stations and a larger body than compact models. It reduces the need to combine several small units, while site access, user volume and service planning remain important.

Can the exterior color be changed?

Yes. The color is customized according to an approved color card. Logos and event graphics are discussed before the production drawing is finalized.

Can the trailer operate without city water?

The built-in fresh-water tank allows temporary operation without a continuous municipal water connection. The tank is refilled based on actual usage.

Is air conditioning included?

The reference configuration lists an air-conditioning system. The final model, power requirement and electrical standard are confirmed in the quotation.

Can the layout be modified?

TUNE Manufacturer discusses changes to sanitary fixtures, water systems, electrical equipment, lighting, branding and interior details. Any modification is checked for its effect on weight, space and maintenance access.

Order Information

For an accurate quotation, provide:

1. Destination country and city

2. Intended use

3. Estimated peak users

4. Operating period

5. Required quantity

6. Site entrance and parking conditions

7. Fresh-water supply method

8. Wastewater disposal plan

9. Electrical voltage and frequency

10. Heating or cooling requirements

11. Preferred interior configuration

12. Color and branding requirements

13. Towing and registration requirements

14. Expected delivery date

TUNE provides a technical drawing, equipment schedule, plumbing and electrical plan, inspection checklist, packing information and quotation before production.
